7.4
Mechanical installation
7.4.1
Installation of the marking head
The correct, stable and reproducible alignment of the working head in relation to the workpiece to be
marked is a prerequisite for faultless marking results. The marking head should therefore be installed with
appropriate care.
Mounting
The working head may be mounted either from the top using the supplied feet or from below using the hole
pattern on the base plate. The feet may be assembled in various positions on the working head base plate.
The feet may be disassembled if they are not required and the working head should be secured tightly. Also
the support bracket should not be subject to any vibrations during operation. In order to avoid damaging the
lens, keep the protective cap on the lens during installation.

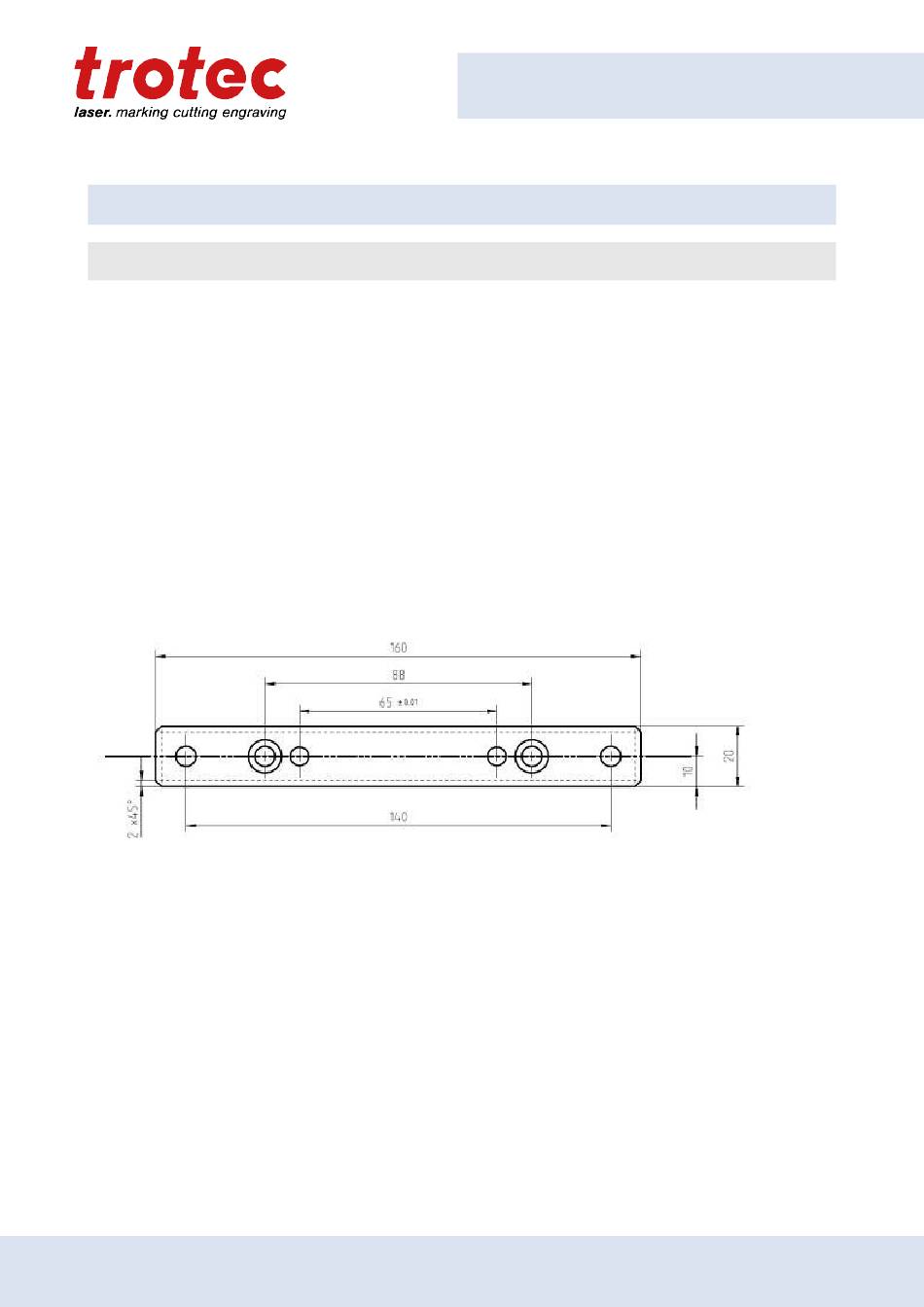

The following diagram illustrates the hole pattern for the feet. The working head is secured using the two
mounting feet through holes 6.6 mm in diameter (designed for M6 screws).
The following diagram illustrates the working head hole pattern when used for direct installation without the
feet.
ENGLISH (Translation)
Setup and installation
35
