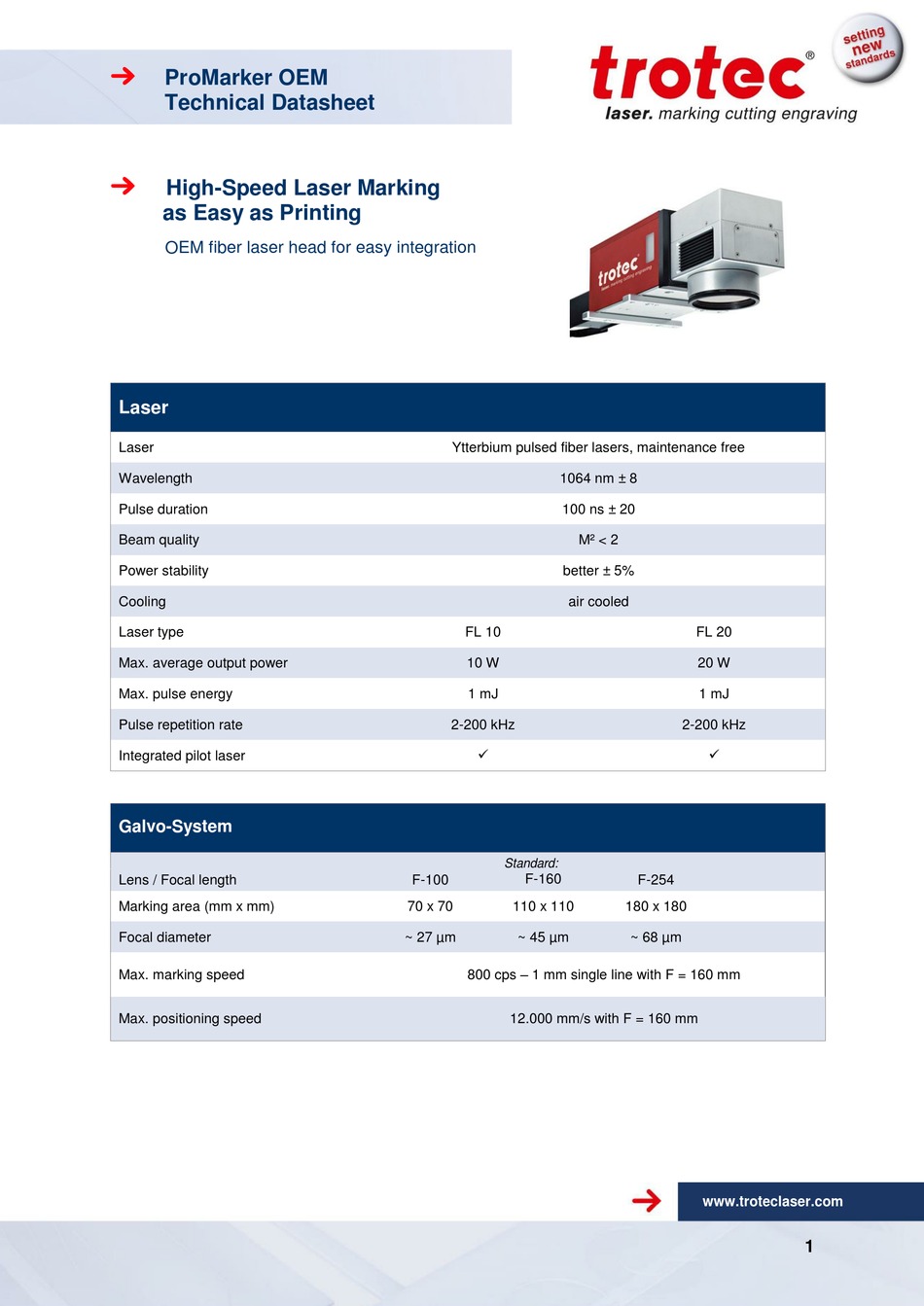

ProMarker OEM
Technical Datasheet
High-Speed Laser Marking
as Easy as Printing
OEM fiber laser head for easy integration
Laser
Laser
Wavelength
Pulse duration
Beam quality
Power stability
Cooling
Laser type
Max. average output power
Max. pulse energy
Pulse repetition rate
Integrated pilot laser
Galvo-System
Lens / Focal length
Marking area (mm x mm)
Focal diameter
Max. marking speed
Max. positioning speed
Ytterbium pulsed fiber lasers, maintenance free
1064 nm ± 8
100 ns ± 20
M² < 2
better ± 5%
air cooled
FL 10
10 W
1 mJ
2-200 kHz

Standard:
F-160
F-100
70 x 70 110 x 110
~ 27 µm ~ 45 µm
800 cps – 1 mm single line with F = 160 mm
12.000 mm/s with F = 160 mm
FL 20
20 W
1 mJ
2-200 kHz

F-254
180 x 180
~ 68 µm
