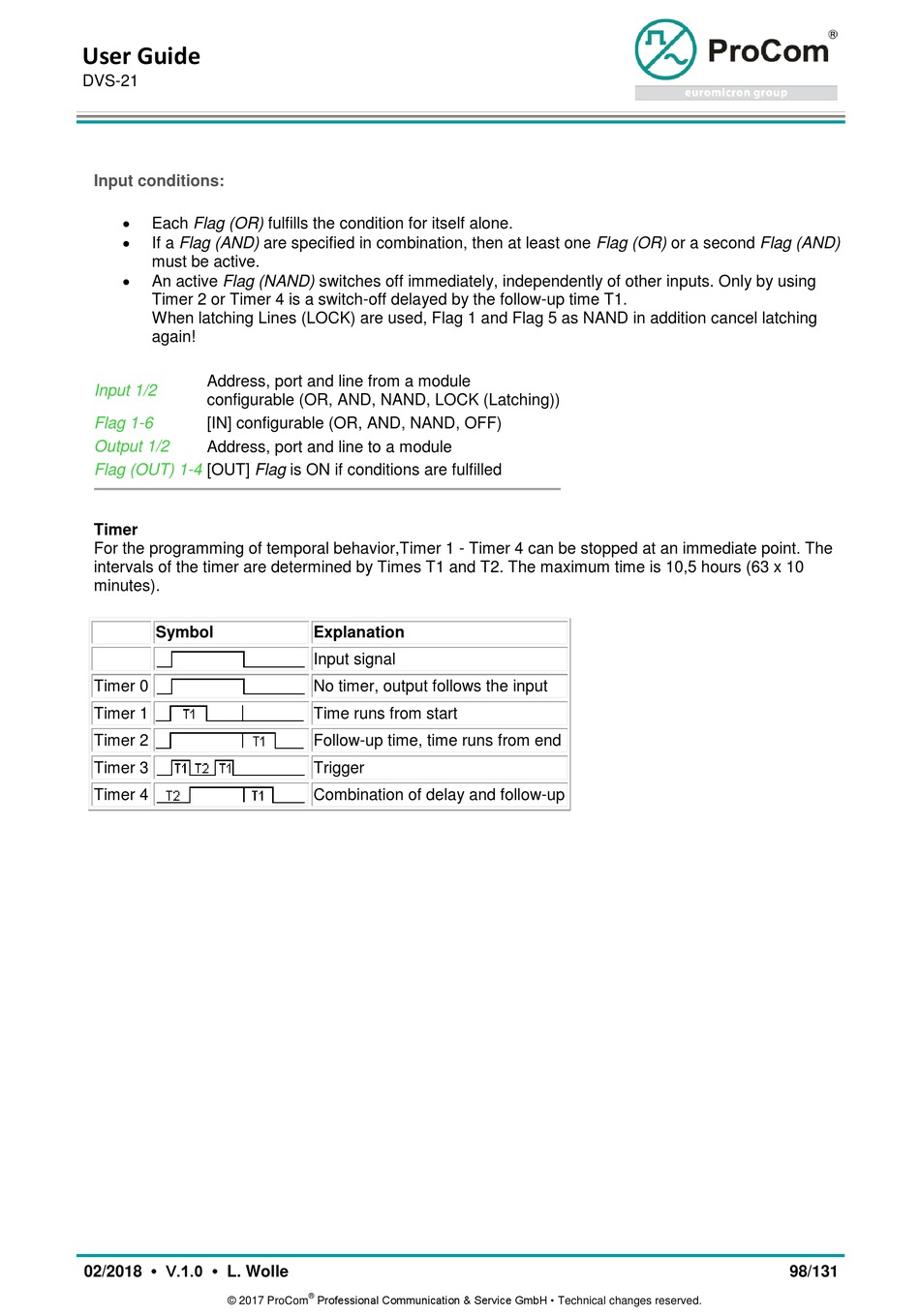

Input conditions:


Each Flag (OR) fulfills the condition for itself alone.

If a Flag (AND) are specified in combination, then at least one Flag (OR) or a second Flag (AND)
must be active.

An active Flag (NAND) switches off immediately, independently of other inputs. Only by using
Timer 2 or Timer 4 is a switch-off delayed by the follow-up time T1.
When latching Lines (LOCK) are used, Flag 1 and Flag 5 as NAND in addition cancel latching
again!
Address, port and line from a module
Input 1/2
configurable (OR, AND, NAND, LOCK (Latching))
Flag 1-6 [IN] configurable (OR, AND, NAND, OFF)
Output 1/2 Address, port and line to a module
Flag (OUT) 1-4 [OUT] Flag is ON if conditions are fulfilled
Timer
For the programming of temporal behavior,Timer 1 - Timer 4 can be stopped at an immediate point. The
intervals of the timer are determined by Times T1 and T2. The maximum time is 10,5 hours (63 x 10
minutes).
Symbol
Timer 0
Timer 1
Timer 2
Timer 3
Timer 4
02/2018 • V.1.0 • L. Wolle
© 2017 ProCom
Explanation
Input signal
No timer, output follows the input
Time runs from start
Follow-up time, time runs from end
Trigger
Combination of delay and follow-up
®
