Address description

As a basis for internal documentation, enabling a matching label print-out to be generated and in the
interests of legibility of the configuration to a third party, it is recommended that the function of the
modules and/or connected devices or directions in the case of long-distance lines be shown in
abbreviated form.

Power consumption

In order to provide information regarding a possible overloading of the SV01 supply card, a current value
is be stored for each module! Generally, this has to do with calculated values between idle and maximum
current. The calculation is based on the boot and operating behavior of the respective module.
If the sum of all currents reaches the load limit of the specified supply module, a colored symbol is
superimposed in the graphic of the SV01.

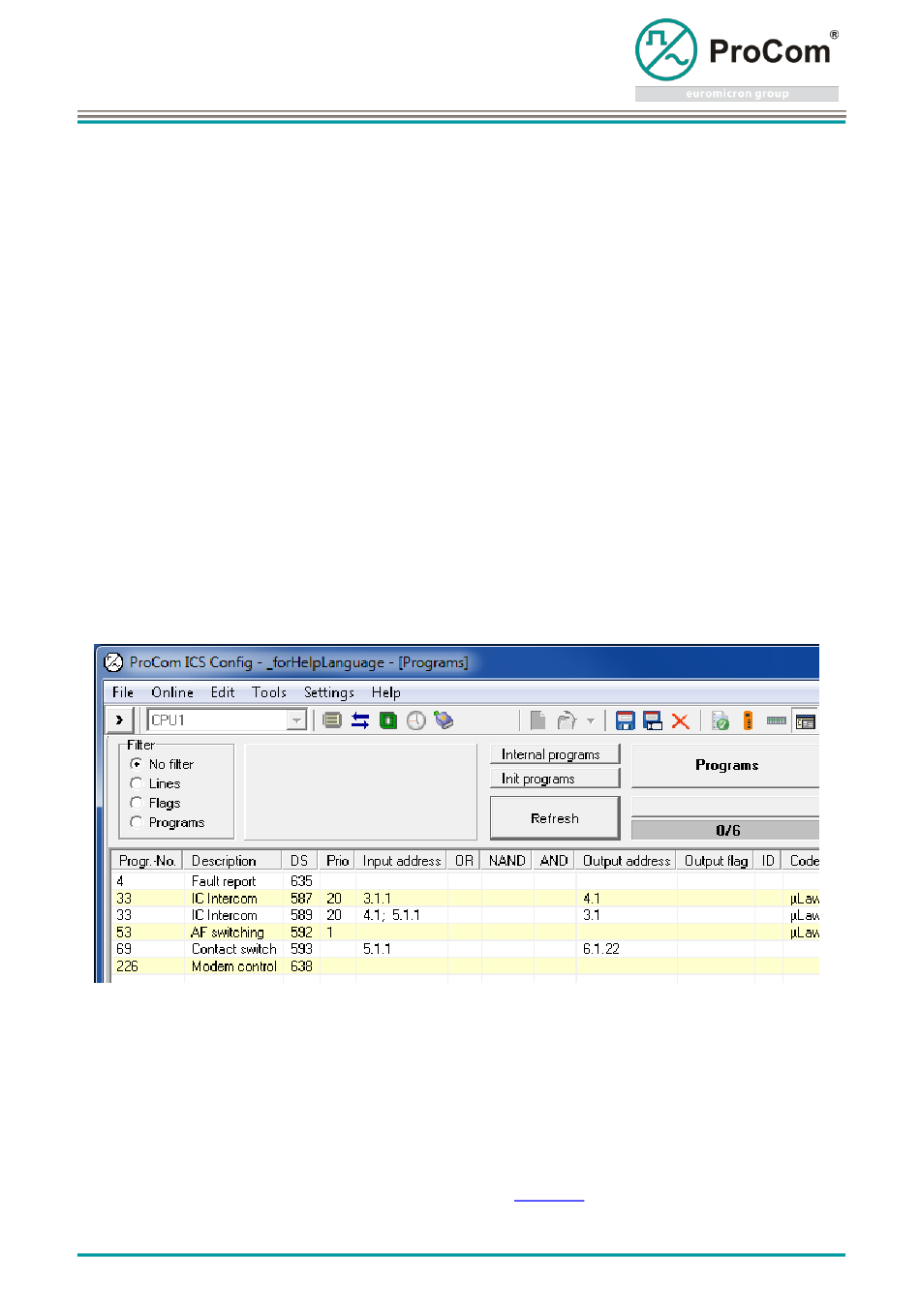

6.4 Program overview

Overview of all programs of a system.
New programs are created or existing ones are configured here. Certain programs are permitted for
stations only. These are also listed here but can only be opened via the station!
The overview displays the programmed criteria and information regarding the individual programs in the
form of extracts.

Add program

All available programs are shown in the scrolling selection list. The program dialog is opened by marking
the desired program and using the Add button.
Having successfully performed the configuration and having left the dialog by means of the Save button,
the program is created. The programs are explained in the
