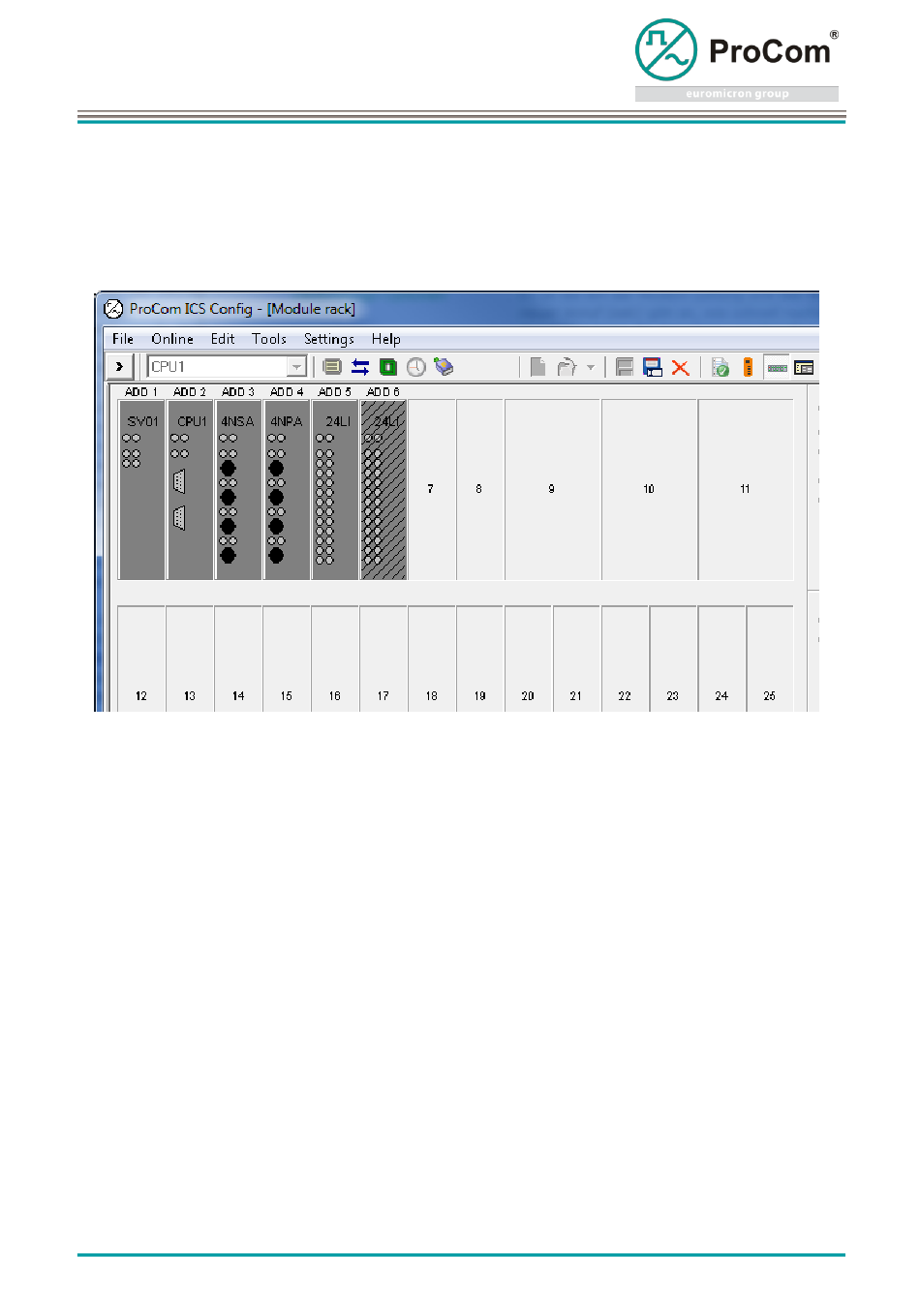

6.3 Module rack

Overview of all modules in a system. A new module is created or an existing one is configured here.
Modules that are used by existing programs are shown in gray. Modules without any
function/programming are shaded.
The first two positions are occupied by the SV01 system power supply and the CPU1 processor. If a
redundant standby CPU is provided, then positions 1-4 are occupied (2xSV01, 2xCPU1).

Select module rack

The type of Module rack that is in use can be selected on the right next to the module area.
Type Wiring corresponds to the familiar usage and is suitable for older systems as well as special
configurations. It is essential to note that the item number may differ from the address in this type!
The address must be specified separately.
Type BPxxx must correspond to the rack in use in each case. The item numbers correspond to the
address.
The type can only be changed if no module is assigned!
