Alarm Lead 2 - Procom DVS-21 User Manual

User Guide
DVS-21

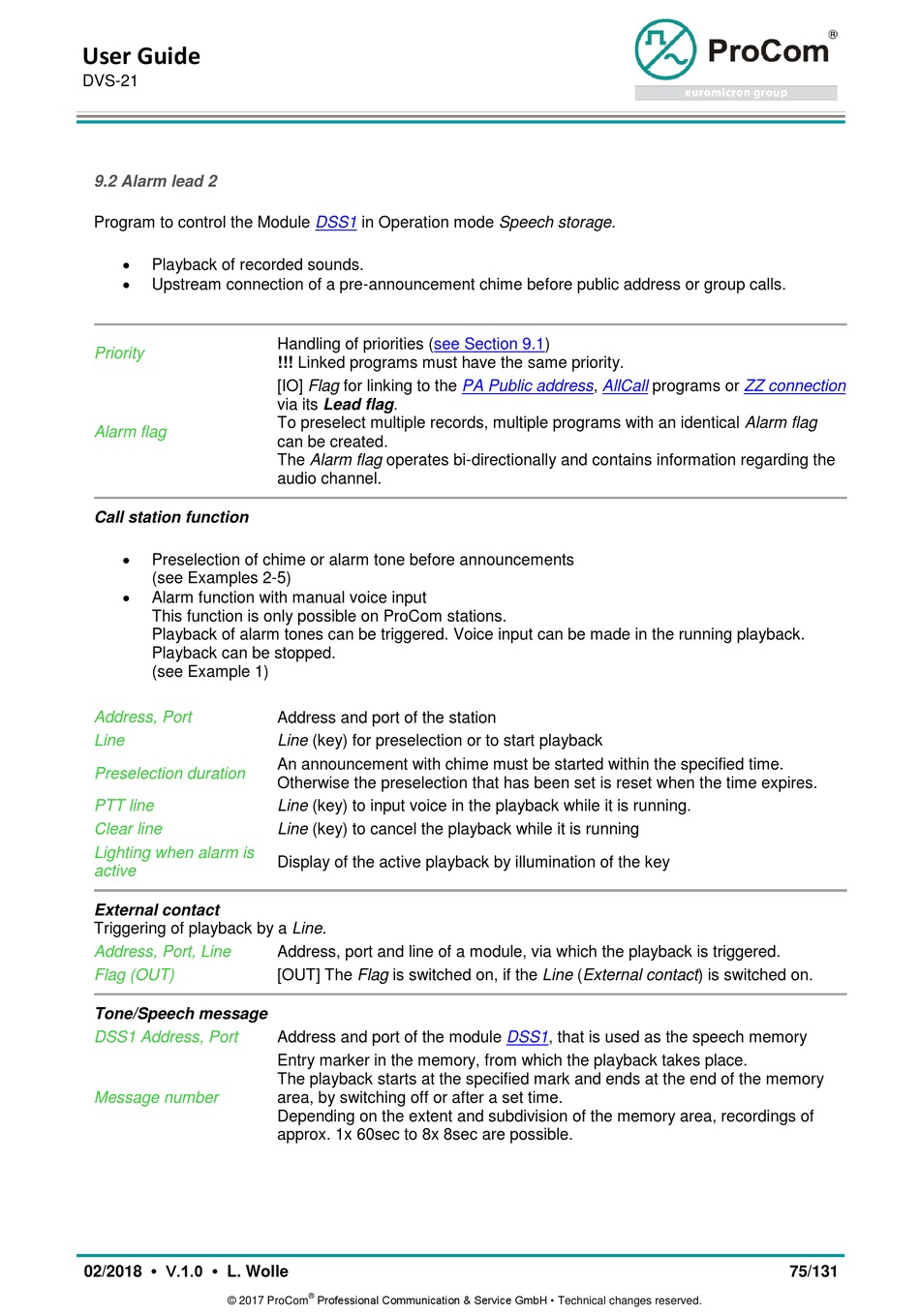

9.2 Alarm lead 2

Program to control the Module

Playback of recorded sounds.

Upstream connection of a pre-announcement chime before public address or group calls.
Priority
Alarm flag
Call station function

Preselection of chime or alarm tone before announcements
(see Examples 2-5)

Alarm function with manual voice input
This function is only possible on ProCom stations.
Playback of alarm tones can be triggered. Voice input can be made in the running playback.
Playback can be stopped.
(see Example 1)
Address, Port
Line
Preselection duration
PTT line
Clear line
Lighting when alarm is
active
External contact
Triggering of playback by a Line.
Address, Port, Line
Flag (OUT)
Tone/Speech message
DSS1 Address, Port
Message number
02/2018 • V.1.0 • L. Wolle
© 2017 ProCom
DSS1 in Operation mode Speech storage.
Handling of priorities (see Section
!!! Linked programs must have the same priority.
[IO] Flag for linking to the
via its Lead flag.
To preselect multiple records, multiple programs with an identical Alarm flag
can be created.
The Alarm flag operates bi-directionally and contains information regarding the
audio channel.
Address and port of the station
Line (key) for preselection or to start playback
An announcement with chime must be started within the specified time.
Otherwise the preselection that has been set is reset when the time expires.
Line (key) to input voice in the playback while it is running.
Line (key) to cancel the playback while it is running
Display of the active playback by illumination of the key
Address, port and line of a module, via which the playback is triggered.
[OUT] The Flag is switched on, if the Line (External contact) is switched on.
Address and port of the module DSS1, that is used as the speech memory
Entry marker in the memory, from which the playback takes place.
The playback starts at the specified mark and ends at the end of the memory
area, by switching off or after a set time.
Depending on the extent and subdivision of the memory area, recordings of
approx. 1x 60sec to 8x 8sec are possible.
®
Professional Communication & Service GmbH • Technical changes reserved.
9.1)
PA Public address, AllCall programs or ZZ connection
75/131
