User Guide
DVS-21

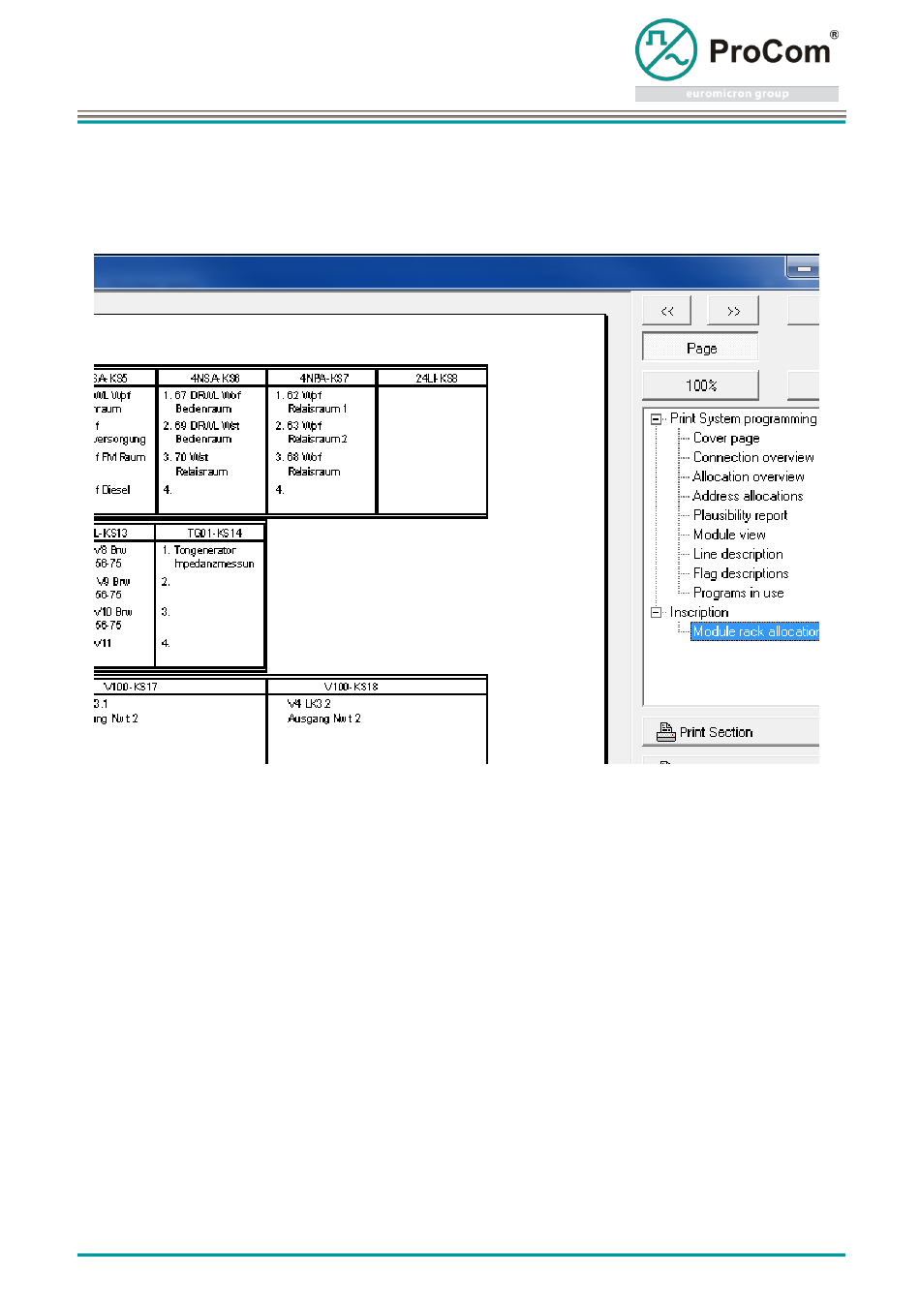

5.5 Documentation

Preview and option of printing documentation regarding a configured system.
Documentation of a configured system consists of multiple components.
Cover page
Connection overview
Allocation overview
Address allocations
Plausibility report
Module view
Line description
Flag descriptions
Programs in use
Module rack allocation
The Print Section button prints only the visible section while the Print System programming button prints
complete documentation without Module rack allocation.
02/2018 • V.1.0 • L. Wolle
© 2017 ProCom
with details regarding system designation and creation date.
provides a listing by Station number, Name and the associated connections
including all occupied keys and their function, e.g. SR1, SR2 etc.
provides the Station number associated with the address and port.
lists the descriptive texts of the module addresses.
lists all possible faults of the plausibility test.
displays the equipped racks in graphic form.
lists all lines in use with their descriptions.
lists all Flags in use with their descriptions.
lists all programs with their IO conditions.
creates a labeling sheet of the precise size.
®
