User Guide
DVS-21
Address decoder
Clock-LEDs of modules
E1 Clock synchronization

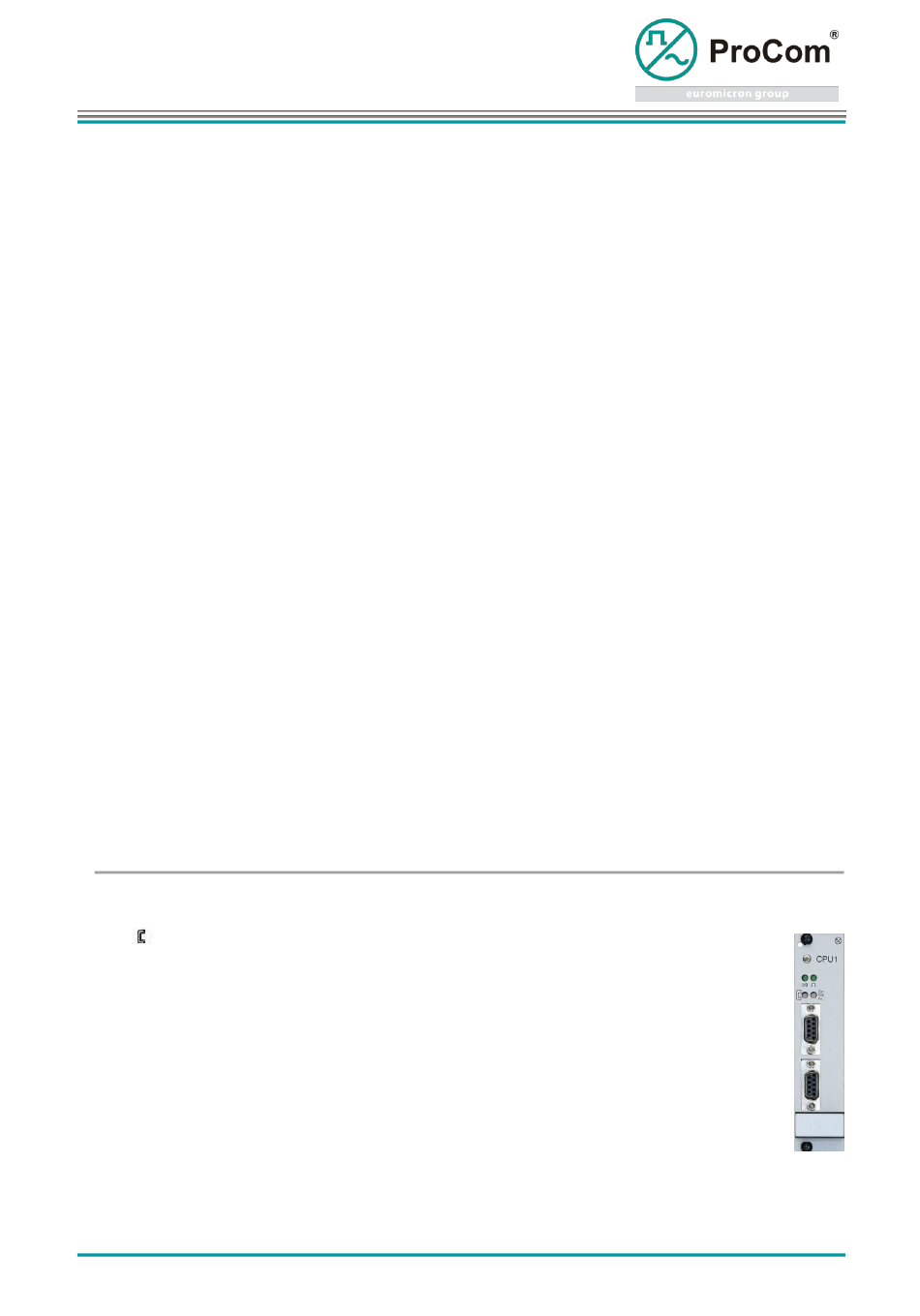

Display and control elements:
LEDs
- without function
GREEN -
CPU operating
ON
YELLOW
On/Stb/Al CPU operating (StandBy)
- ON
RED -
Error
ON
Connectors
SUB-D
COM 2 Radio clock (DCF77) (as from HW v6.01)
top
SUB-D
COM 1 Data transmission and monitoring with ICS
bottom
02/2018 • V.1.0 • L. Wolle
© 2017 ProCom
®
Professional Communication & Service GmbH • Technical changes reserved.
Activates use of the Module Address
decoder for expansion of the
addressable module addresses.
Introduction of the backplane cancels
the use of the Address decoder!
Sets the behavior of clock-LEDs of all
programmed modules.
The initialization of the module at boot
time is visualized by rapid flashing
(fast blinking). LEDs of non-
programmed modules are flashing,
regardless of this setting!
Selection
LEDs always
Flash
flashing
LEDs are off after
init. phase, short
with test telegram
flashing in case of
test frames
LED's are on after
always on
init. phase
LED's are off after
always off
init. phase
As from Hardware Version 6.01, the
CPU is equipped with an external
clock synchronization input. This
enables synchronization with an
external transmission technology
clock. The default settings can be
used for the most common
applications. If required, adaptations
can be made for line length, signal
type and impedance.
