Add module

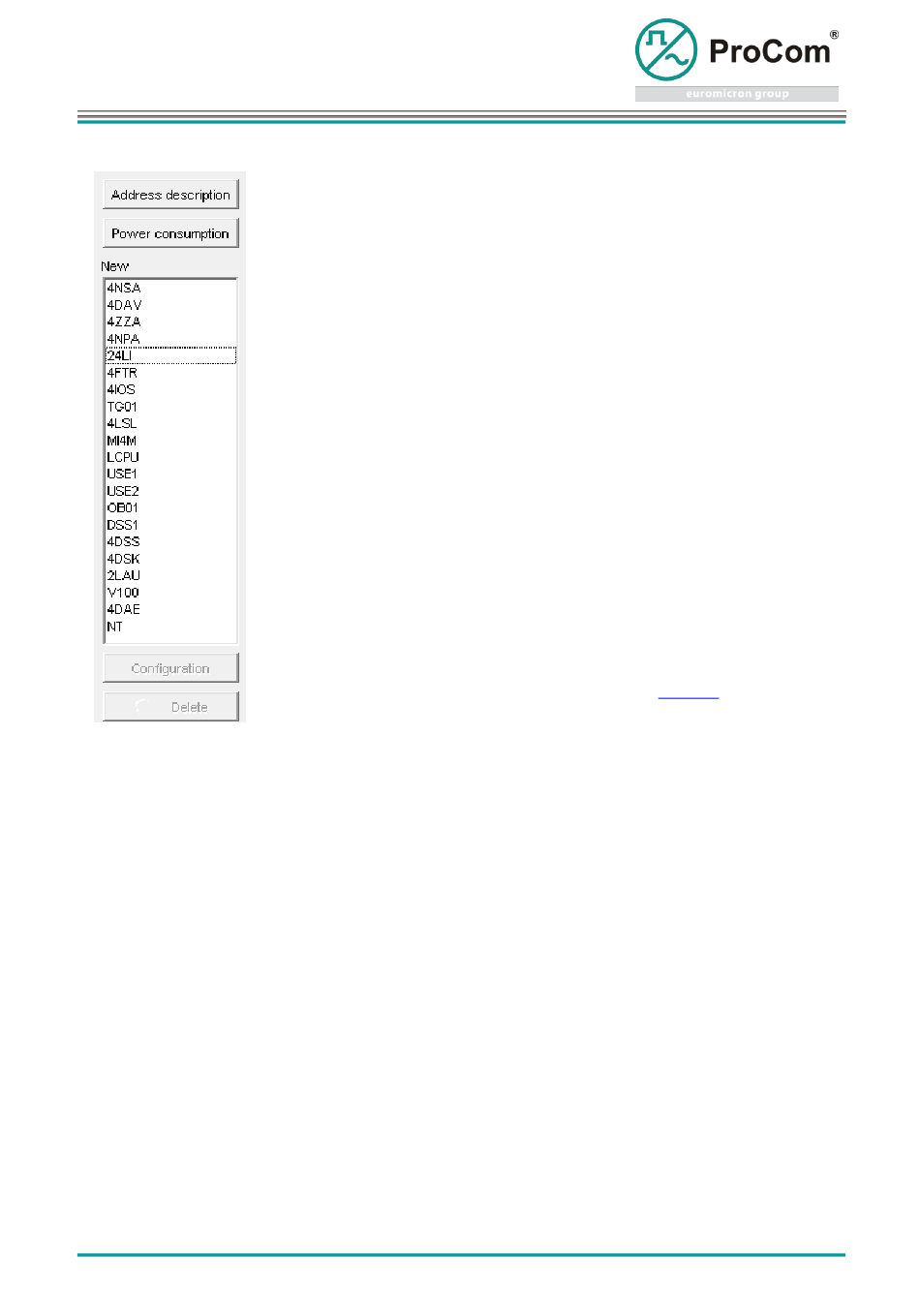

All the available modules are listed in the right-hand selection list. The module is
added by marking and clicking on a vacant position. In the case of Wiring type a
dialog opens in addition and request the address.
To move modules, mark the module by clicking and click on the new position. In
the case of Wiring the move is only related to the position number. The Address
must be adapted manually in the configuration. This is indeed only possible in the
case of non-programmed modules. Already-programmed modules cannot be
moved directly. It is recommended that a new module be placed and that the
programming be adapted accordingly in the Programs module. If the module then
has no function, it can be removed.

Configure module

Almost all modules can or must be configured. An operating mode must be
selected according to the type or other specific values such as level and timings
must be set.
The Configuration dialog can be opened by a double-click on the module after
marking the module and using the Configuration switch, or directly by using the
right-hand mouse menu via the module.
These dialogs are type-related and are explained in the
®
Professional Communication & Service GmbH • Technical changes reserved.
Modules section.
