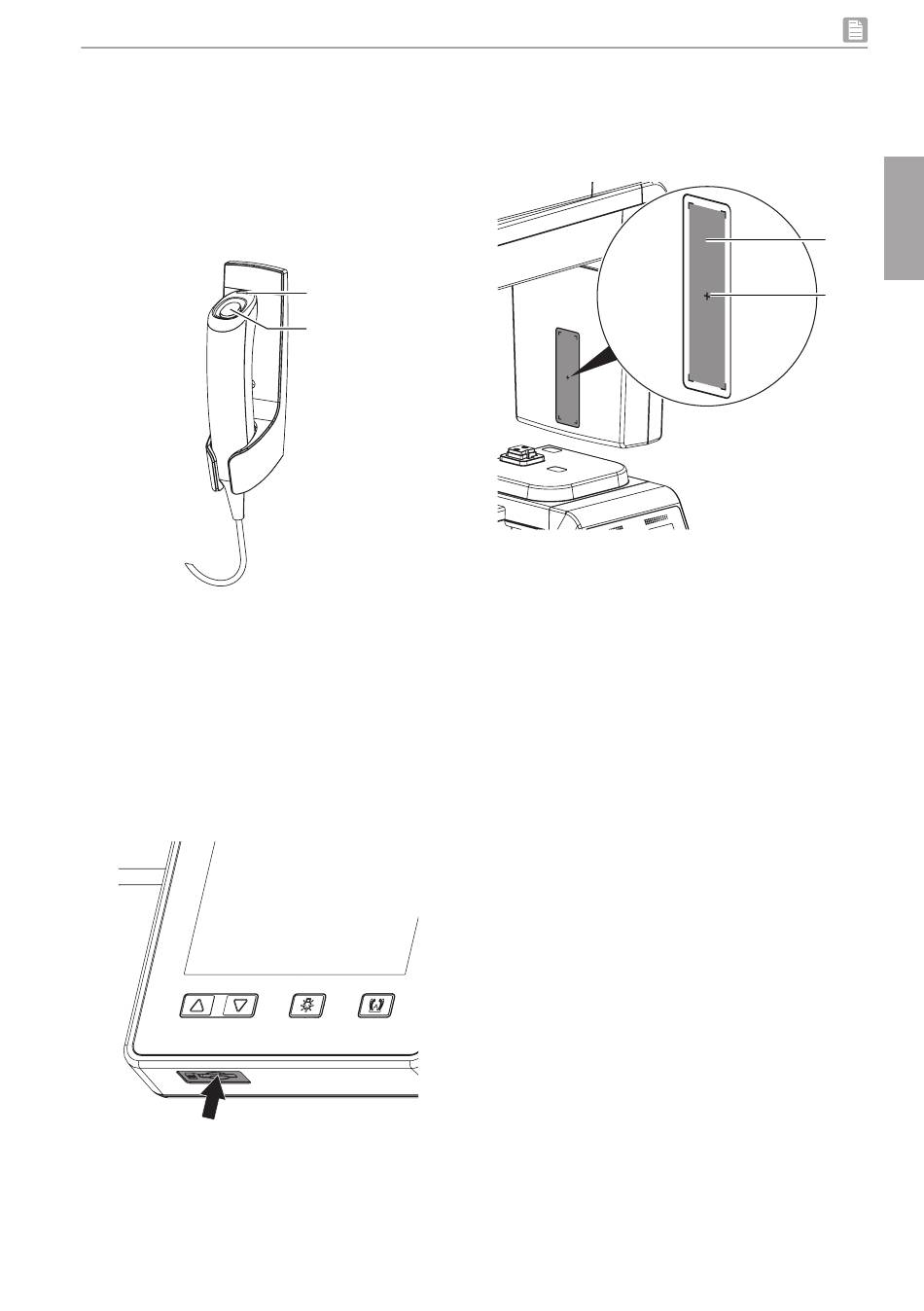

5.5 Exposure button
Exposure switch
The exposure switch is used to trigger the pre-
pared image acquisition and start the X-ray ex-
posure The LED indicates the status of the unit,
as does the LED on the unit
– Green: unit ready for recording
– Yellow: X-ray beam active
1 Indicator lamp (LED)
2

Exposure button

Alternative exposure button (optional)
This exposure button is usuallymounted outside
the X-ray room The exposure button is used to
trigger the prepared image acquisition and start
the X-ray exposure
5.6 Memory card slot
The unit has a slot for a memory card The slot
is needed for service purposes only
2210200497L41 1812V002
1
2
5.7 Sensor window
The active sensor surface is indicated by the
markers in the corners of the sensor window
The cross indicates the geometric mid-point of
the active sensor surface
1 Active sensor surface
2 Geometric mid-point of the active sensor
surface
Product description
1
2
17
