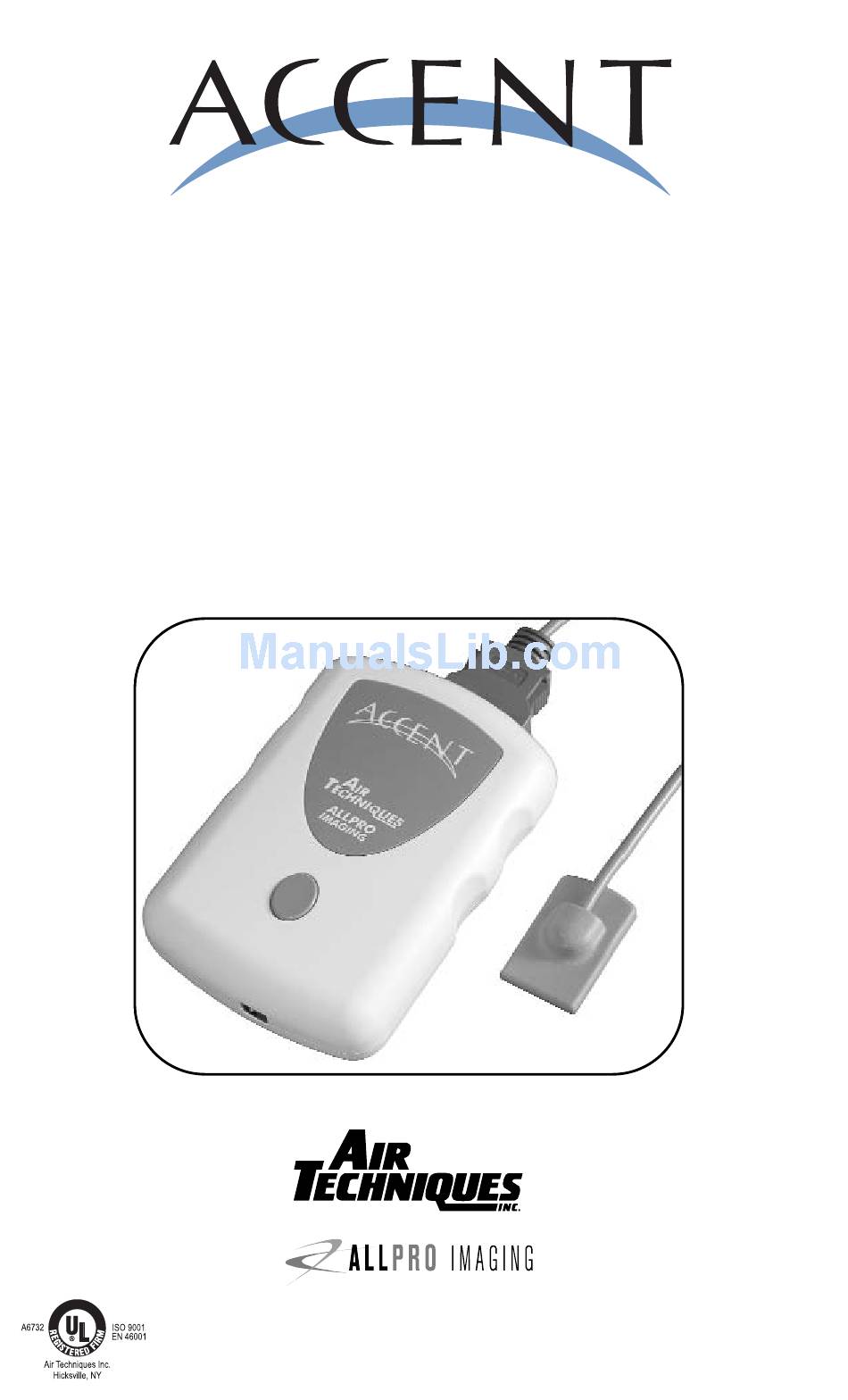

- Page 1 I N T R A O R A L D I G I T A L X - R A Y I M A G I N G S Y S T E M ® Bluetoot h Interface Model Part Numbers: B5100B and B5200B Instruction Manual...
-
Page 2: Table Of Contents
FOREWORD Air Techniques and its AllPro Imaging division have prepared this document ® as a guide to the proper use of the A C C E N T Bluetooth Intraoral Digital X-ray Imaging System. References in this manual to Air Techniques includes its division AllPro Imaging. -
Page 3: Congratulations
Warranty void if installed or serviced by other than authorized service personnel. Air Techniques, Inc./ALLPRO Imaging is not liable for indirect or consequential damage or loss of any nature in connection with this equipment. -
Page 4: Safety Notice
S A F E T Y N O T I C E This equipment has been designed to minimize exposure of personnel to hazards. While the A C C E N T is designed for safe operation, certain precautions must be observed. Use of the A C C E N T not in conformance with the instructions speci- fied in this manual may result in permanent failure of the unit. -
Page 5: Use Of Accessory Equipment
IEC 601-1 and/or IEC 601-1-1 harmonized national standard. Use of ACCESSORIES or cables other than those specified or provided by Air Techniques' may result in increased EMISSIONS or decreased IMMUNITY of the EQUIPMENT. Electrical Safety Notes. -
Page 6: Important Information
Air Techniques or a dealer authorized by Air Techniques and if the equipment is used in con- formity with the instructions contained in this manual. -
Page 7: Purpose Of This Manual
K Bluetooth AC C E N T System with Size 1 Sensor, ....Part Number B5100B K Bluetooth AC C E N T System with Size 2 Sensor, . -
Page 8: Key Parts
K E Y P A R T S USB CONTROL SENSOR SIZE 1 MODULE SENSOR STORAGE HOLDER P/N B5050B P/N B5030 ASSEMBLY P/N B5120 BLUETOOTH to USB ADAPTER with USB Connection Cable SIZE 2 P/N B5075 SENSOR ASSEMBLY P/N B5220 NiMH BATTERY CHARGER ASSEMBLY P/N B5085... -
Page 9: Product Information
K The operator is liable for all damages caused as a result of incorrect usage of this appliance. K Only A C C E N T Sensors made by Air Techniques may be used with the A C C E N T Control Module. -
Page 10: Technical Data
T E C H N I C A L D A T A Power Supply The Bluetooth AC C E N T Control Module is powered by four NiMH rechargeable AAA batteries. No external power supply is required. Operating Conditions Temperature 50 to 105°F (10 to 40°C) Humidity... - Page 11 T E C H N I C A L D A T A A C C E N T Sensor Size 2 Number of pixels 2.05 million Pixel Size 22 x 22 µm Technology CCD + Scintillator Weight 3.4 ounces. (95 g) Dimensions Length Width...
-
Page 12: Computer Requirements
To operate the A C C E N T Sensor, it must be connected to a Important: compliant Computer System, and the computer must be loaded with Air Techniques Authorized Image Management Software. Air Techniques provides neither the PC nor the Software. The PC and Software are provided by the dealer or user. -
Page 13: Functional Description
The A C C E N T can only be used when connected via the wireless Bluetooth protocol to a user-supplied computer system loaded with an Image Management Software authorized by Air Techniques. Each time the A C C E N T Sensor is used it must be covered with an... -
Page 14: Indicators And Connectors
INDICATORS AND CONNECTORS Power Button. As shown by Figure 2, the Power Button located on the top panel of the Control Module, controls operating power as follows. Power Turn-ON: Depress the Power Button for approximately 1.5 seconds. POWER BUTTON Power Turn-OFF: Depress the Power Button for approximately 5 seconds to turn off Control Module. -
Page 15: Twain Interface
TWAIN INTERFACE About the TWAIN Consortium: The TWAIN Working Group is a not-for-profit organization, which repre- sents the imaging industry. TWAIN’s purpose is to provide and foster a universal public standard, which links applications and image acquisition devices. The ongoing mission of this organization is to continue to enhance the standard to accommodate future technologies. - Page 16 TWAIN INTERFACE Figure 5. TWAIN Graphical User Interface 1. Title Bar: Contains the words "Accent: TWAIN Data Source". If it displays any other words, then you are using a language other than English or you have not selected the Accent as your TWAIN data source.
-
Page 17: Installation
I N S T A L L A T I O N Protect the imaging system from direct sunlight and excessive heat. Ensure that the Control Module connector is accessible at all times for connection of the A C C E N T sensor as necessary plug Important:... - Page 18 I N S T A L L A T I O N Static electricity, a natural phenomenon, and consequently electrostatic discharge can damage electronic devices, particularly computers and associated peripherals. Static Prevention - Static electricity is a potential source of problems with electronic devices, particularly computers and their peripherals.
-
Page 19: Initial Setup
I N S T A L L A T I O N Note: Turn Control Module off before removing the ACCENT Sensor. Remove the A C C E N T Sensor by squeezing pulling the sensor cable plug from the sensor socket of the Control Module. Make sure that the four NiMH AAA batteries are fully charged prior to use. - Page 20 I N S T A L L A T I O N Note: Make sure that the required Windows XP Professional with Service Pack 2 or later is installed. See page12 for details. 4. Connect the Linksys Bluetooth to the USB Adapter supplied with the Bluetooth Control Module to any available USB port.
- Page 21 I N S T A L L A T I O N 7. Start the user-supplied imaging program application in accordance with the individual imaging program application documentation or, if necessary, start the TWAIN Test program by pressing the S S t t a a r r t t button and selecting P P r r o o g g r r a a m m s s A A c c c c e e n n t t X X - - r r a a y y S S e e n n s s o o r r and then selecting the T T W W A A I I N N T T e e s s t t option.
-
Page 22: Operation
I N S T A L L A T I O N 14. At this point, Windows should report: F F o o u u n n d d N N e e w w H H a a r r d d w w a a r r e e : : B B l l u u e e t t o o o o t t h h P P e e r r i i p p h h e e r r a a l l D D e e v v i i c c e e , F F o o u u n n d d N N e e w w H H a a r r d d w w a a r r e e : : S S t t a a n n d d a a r r d d S S e e r r i i a a l l o o v v e e r r B B l l u u e e t t o o o o t t h h l l i i n n k k , and finally F F o o u u n n d d N N e e w w H H a a r r d d w w a a r r e e : : Y Y o o u u r r n n e e w w h h a a r r d d w w a a r r e e i i s s i i n n s s t t a a l l l l e e d d a a n n d d r r e e a a d d y y... - Page 23 OPERATION The X-ray imaging system may only be operated by suitably qualified personnel. Imaging Procedure Operate the A C C E N T to capture a digital X-ray by performing the following procedures. These procedures should be conducted as written. Omitting a a n n y y s s t t e e p p can cause retaking of the image being necessary.
-
Page 24: Operational Options
OPERATIONAL OPTIONS Moving from Computer to Computer When sharing a Bluetooth Control Module among multiple computers, first break the wireless link to the first computer and then establish a new wireless link to the second computer. Note: The Initial Setup procedure described above must be completed on each of the computers prior to use. - Page 25 OPERATIONAL OPTIONS Alternating between Bluetooth Control Modules. When using more than one Bluetooth Control Module with a single com- puter, break the wireless link to the first Control Module and then estab- lish a wireless link to the second Control Module. Note: The Initial Setup procedure described above must be completed with each of the Control Modules prior to use.
- Page 26 OPERATIONAL OPTIONS Image Resolution The ACCENT system allows image acquisition in one of two resolutions, High resolution and Low resolution.Each has distinct advantages and disadvantages that will have to be taken into account when making choice for your particular application. High Resolution.
-
Page 27: Care And Maintenance
C A R E A N D M A I N T E N A N C E Sensor Care To prevent damage to the A C C E N T sensors, please read and act on the following suggestions wipe down the sensor with a sterile solution store the sensor in the Sensor Storage Hanger or its hard shell shipping case when it is not in use. - Page 28 C A R E A N D M A I N T E N A N C E To avoid device damage and shock through electric A C C E N T current, do not immerse Sensor components in any liquid cleaning agents. Cleaning and Disinfecting The complete system should only be cleaned using wipes or an alcohol-based disinfectant.
-
Page 29: Troubleshooting
T R O U B L E S H O O T I N G Trouble Possible Cause Corrective Action 1. Green LED not flash- • Trouble with DC power • Recharge or replace ing. supply (batteries). batteries • Unit not turned on. •... -
Page 30: Accessories
ACCESSORIES The following lists the ordering number and description for accessory components available to maintain and expand the A C C E N T Sensor to meet your professional needs. Contact your authorized dealer for information. I I t t e e m m P P a a r r t t N N o o . - Page 32 Air Techniques and AllPro Imaging are leading manufacturers of fine dental, medical and veterinary equipment from air and vacuum systems and X-ray film processors, to an impressive line of new products incorporating the most recent technological advances. These new products, vital...
