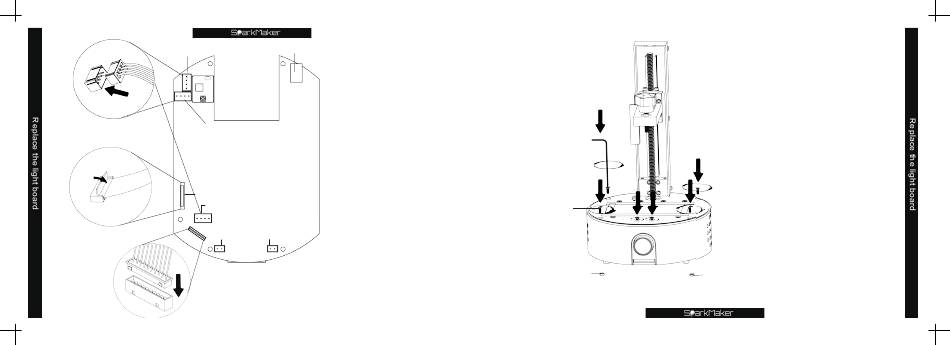

Motor interface
Four-wire plug
P h o t o e l e c t r i c
switch interface
SparkMarker FHD
LCD interface
Light board interface
FPC cable
Ten wire plug
74
DC input
( A s s h o w n ) P r e s s
d o w n o n t h e F P C
connector,connect the
LCD cable,and insert
t h e f o u r - w i r e p l u g
of the photoelectric
switch,stepper motor
a n d l i g h t b o a r d
Mainboard
downwards,and insert
the ten-wire plug of
the knob downward.
Notice:
＊
Fan interface
Please carefully open the
FPC interface and carefully
pull out the plug,do not tear
the cable.
Small hex wrench
Flat head screw
M3 nut
Slowly lower the Z-axis
and working panel and
close the housing. Plug
the four M3 nuts on the
bottom of the housing
back into the bottom
mounting holes and then
,
tighten the six flat head
screws shown.
M3 nut
