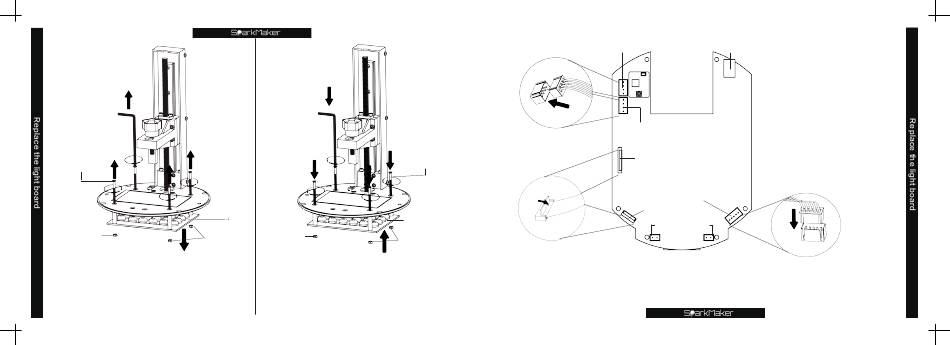

Small hex wrench
Flat head screw
Light board
M3 nut
M3 nut
U s e t h e s m a l l h e x w re n ch t o t u r n
counterclockwise to unscrew the flat
head screws of the four fixed light board
around the LCD screen and remove the
72
light board from below.
Small hex wrench
Flat head screw
Light board
M3 nut
M3 nut
Installation of the new light board, use the
small hex wrench to turn clockwise,and
use the M3 nut at the lower end of the
light board to screw the four flat head
screws around the LCD screen.
Motor interface
P h o t o e l e c t r i c
Four-wire plug switch interface
LCD interface
SparkMarker
Mainboard
Light board interface
Knob interface
Fan interface
FPC cable
＊ Notice:
Please carefully open the FPC
interface and carefully pull out the
plug,do not tear the cable.
DC input
(As shown) Press down
on the LCD screen and
the knob FPC cable,
insert down the four-
wire plug of the limit
s w i t c h a n d s c r e w
motor,and insert the
five-hole plug of the
light board down.
Five-wire plug
