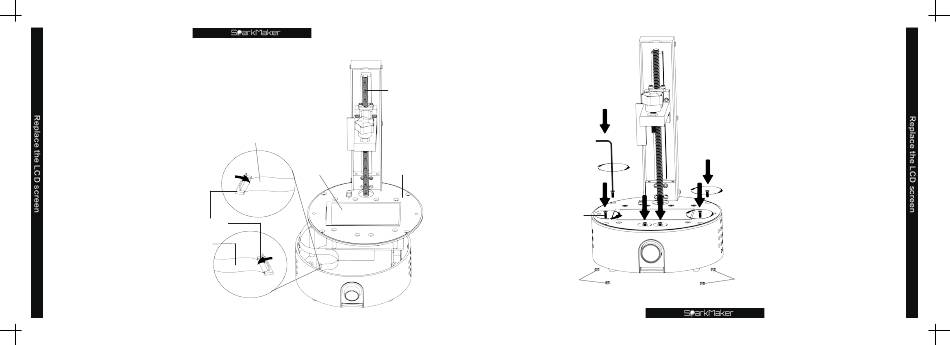

Wow SparkMaker Operating Manual page 33

Insert the cable into the
LCD interface and press
the connector down.
＊ Notice:
When installing the LCD cable,the
metal face of the LCD cable is
facing down. When pressing the
interface,please confirm that the
cable is fully connected to the LCD
interface.
LCD screen FPC interface
LCD screen cable
62
Z axis
LCD screen cable
LCD screen Working panel
SparkMaker
SparkMaker
FHD
Small hex wrench
Flat head screw
M3 nut
Slowly lower the Z-axis
and working panel and
close the housing. Plug
the four M3 nuts on the
bottom of the housing
back into the bottom
mounting holes,and then
tighten the six flat head
screws shown.
Notice:
＊
Do not damage the LCD screen.
M3 nut
63
