Motor interface
P h o t o e l e c t r i c
switch interface
Four-wire plug
LCD interface
SparkMarker
Knob interface
Fan interface
FPC cable
＊ Notice:
Please carefully open the FPC
interface and carefully pull out the
70
plug,do not tear the cable.

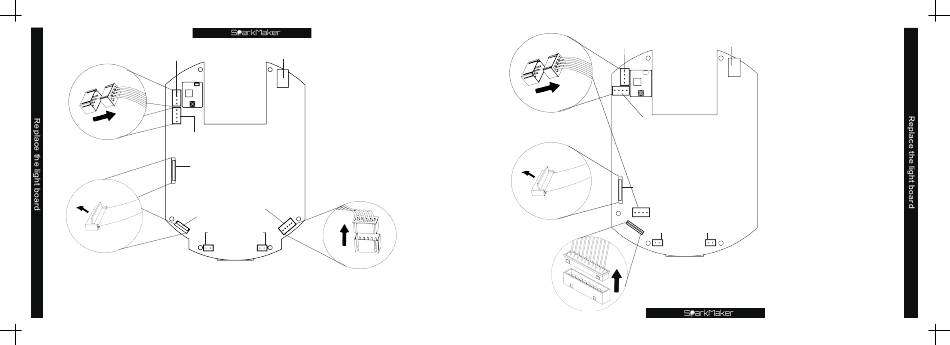

(As shown) Slowly pull
DC input
up the Z axis and the
working plane,open the
FPC interface upwards,
release the FPC cable of
the LCD and the knob,
pull out the four-wire
plug of the photoelectric
switch and screw motor
upwards,and pull out the
five-wire plug of the light
board upwards.
Mainboard
Light board interface
Five-wire plug
Motor interface
Four-wire plug P h o t o e l e c t r i c
switch interface
SparkMarker FHD
Mainboard
LCD interface
Fan interface
FPC cable
Ten-wire plug
DC input
(As shown) Slowly pull
up the Z axis and the
working plane,open
t h e F P C i n t e r f a c e
t o l o o s e n t h e LC D
screen cable,pull out
t h e f o u r - w i r e p l u g
of the photoelectric
switch,stepper motor
a n d l i g h t b o a r d
upwards,and pull out
ten-wire plug of the
knob upwards.
＊ Notice:
Please carefully open the FPC
interface and carefully pull out
the plug,do not tear the cable.
