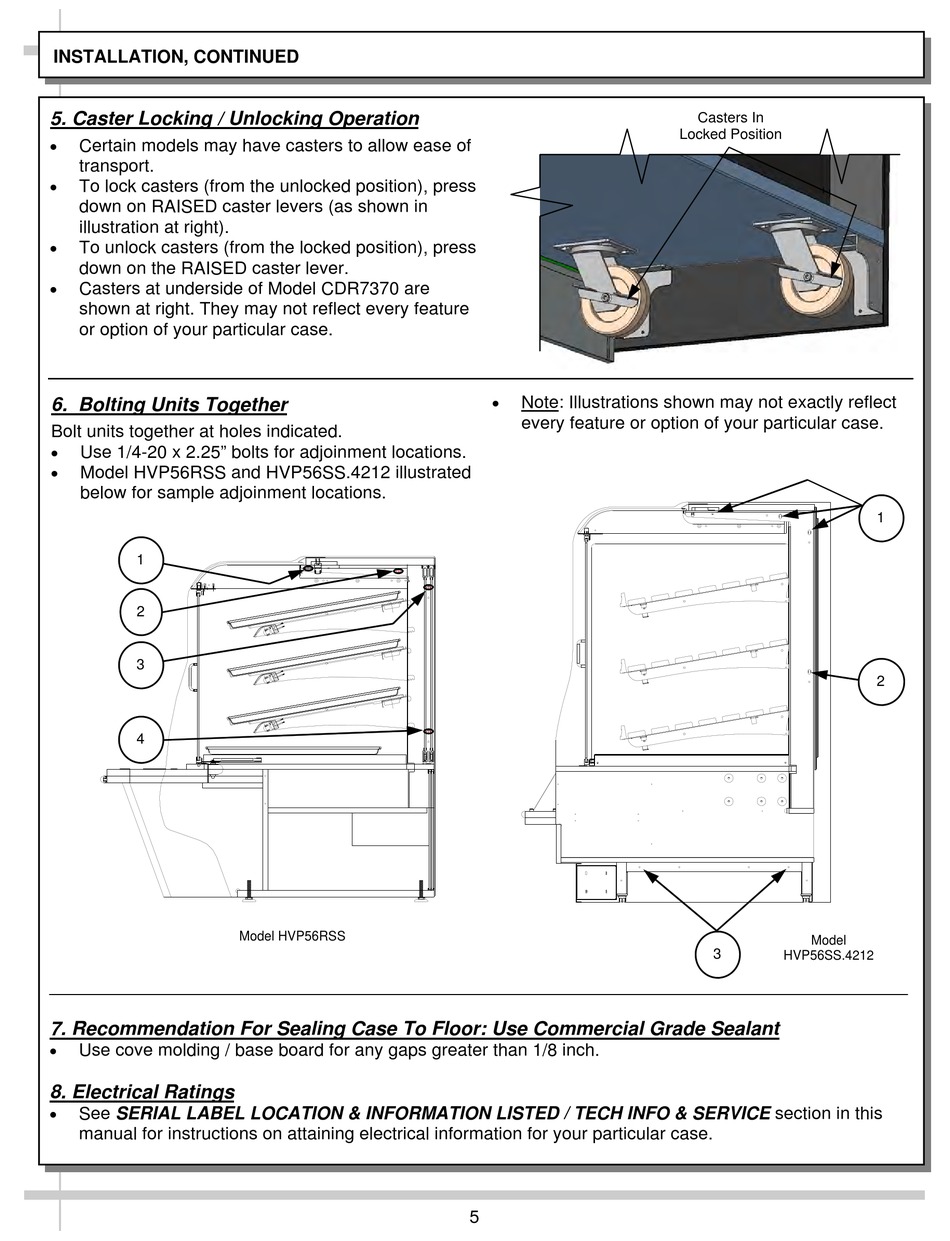

INSTALLATION, CONTINUED
5. Caster Locking / Unlocking Operation

Certain models may have casters to allow ease of
transport.

To lock casters (from the unlocked position), press
down on RAISED caster levers (as shown in
illustration at right).

To unlock casters (from the locked position), press
down on the RAISED caster lever.

Casters at underside of Model CDR7370 are
shown at right. They may not reflect every feature
or option of your particular case.
6. Bolting Units Together
Bolt units together at holes indicated.

Use 1/4-20 x 2.25" bolts for adjoinment locations.

Model HVP56RSS and HVP56SS.4212 illustrated
below for sample adjoinment locations.
1
2
3
4
7. Recommendation For Sealing Case To Floor: Use Commercial Grade Sealant

Use cove molding / base board for any gaps greater than 1/8 inch.
8. Electrical Ratings

See SERIAL LABEL LOCATION & INFORMATION LISTED / TECH INFO & SERVICE section in this
manual for instructions on attaining electrical information for your particular case.
Model HVP56RSS

Note: Illustrations shown may not exactly reflect
every feature or option of your particular case.
5
Casters In
Locked Position
Model
3
HVP56SS.4212
1
2
