START-UP AND OPERATION, CONTINUED: LIGHT SWITCHES [FRONT] - PAGE 1 of 2
Start-Up And Operation, Continued
Warning! Disconnect power before providing
maintenance and service to unit.
Caution: Lamps have been treated to resist breakage
and must be replaced with similarly treated lamps.
Note: Warranty will be void if claims arise from
negligence, misuse of goods, extreme environmental
conditions or improper maintenance. See Overview
And Warnings section in this operating manual.
1. Units Without Light Switches

Lighting components may be field-wired to
electrical box.

In such instances, lighting will be operational upon
proper field wiring of case.
2. Units With Light Switches
Front Light Switch Accessible Units:

Light switch is located on the right-front of the unit.
Rotate the round cover plate to access the switch.

All of the lights should come on at the same time. First
time lighting may require a short warm up period for
the bulbs.

Slightly dim or a flickering of new bulbs is normal. If
lights do not turn on, check all of the raceway plugs.

The lighting is wired in series so all lights must be
plugged in or receptacles capped in order for the
case to light.


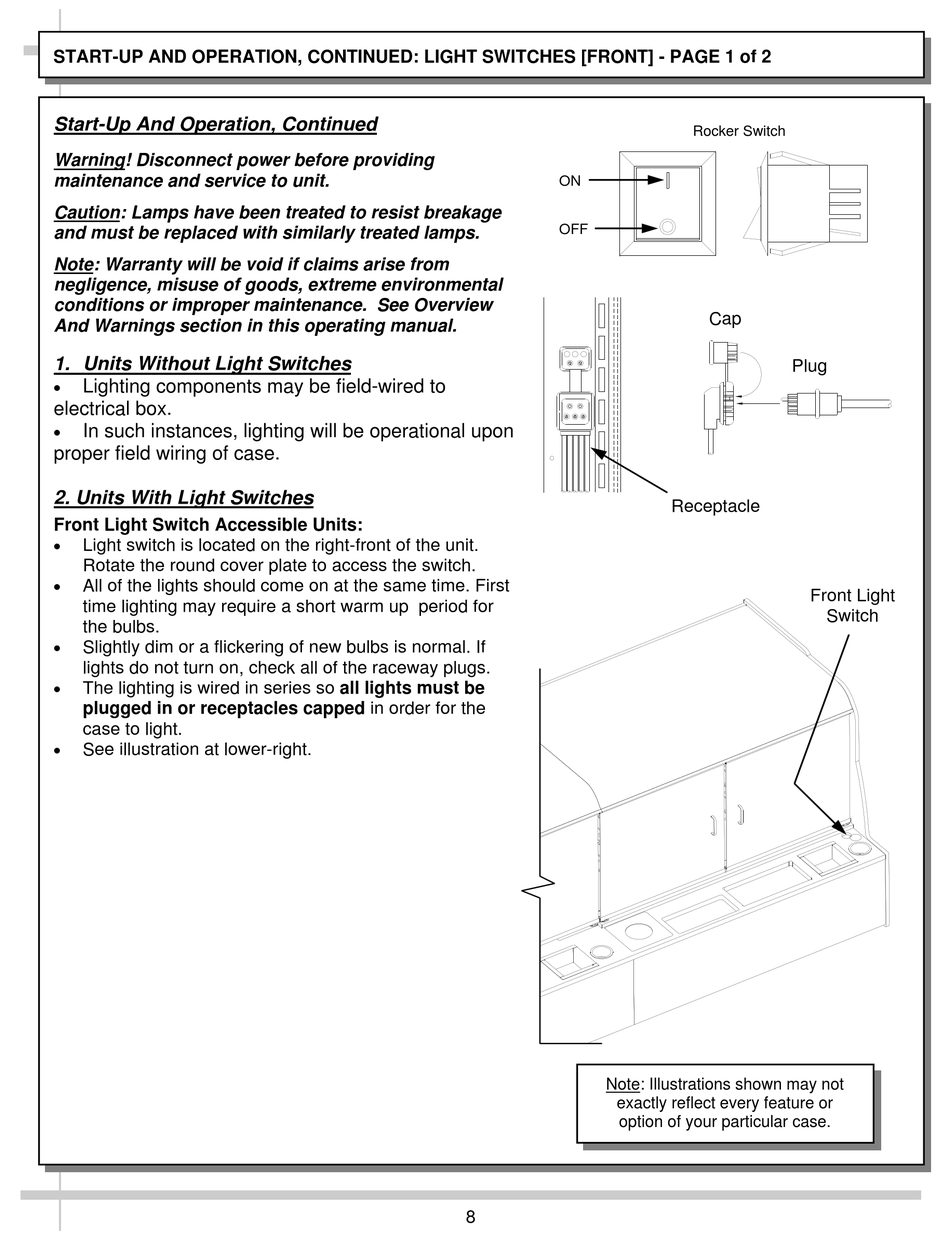

See illustration at lower-right.
ON
OFF
Note: Illustrations shown may not
exactly reflect every feature or
option of your particular case.
8
Rocker Switch
Cap
Plug
Receptacle
Front Light
Switch
