INSTALLATION: FIELD SERVICE ELECTRICAL CONNECTION GUIDE

1. Field Access Boxes / Voltage & Amp Req.

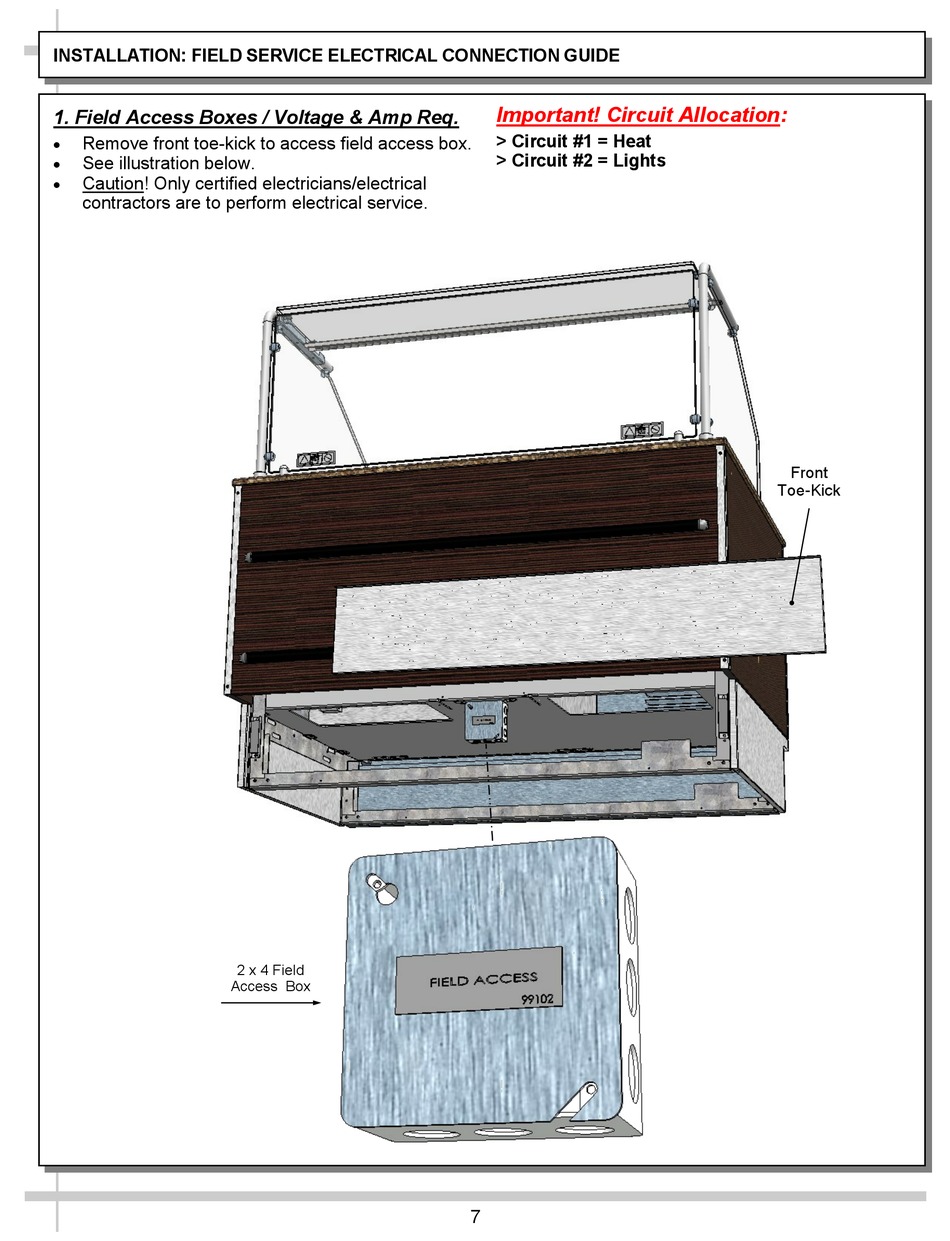

Remove front toe-kick to access field access box.
See illustration below.
Caution! Only certified electricians/electrical
contractors are to perform electrical service.
Access Box
2 x 4 Field
Important! Circuit Allocation:
> Circuit #1 = Heat
> Circuit #2 = Lights
7
Front
Toe-Kick
