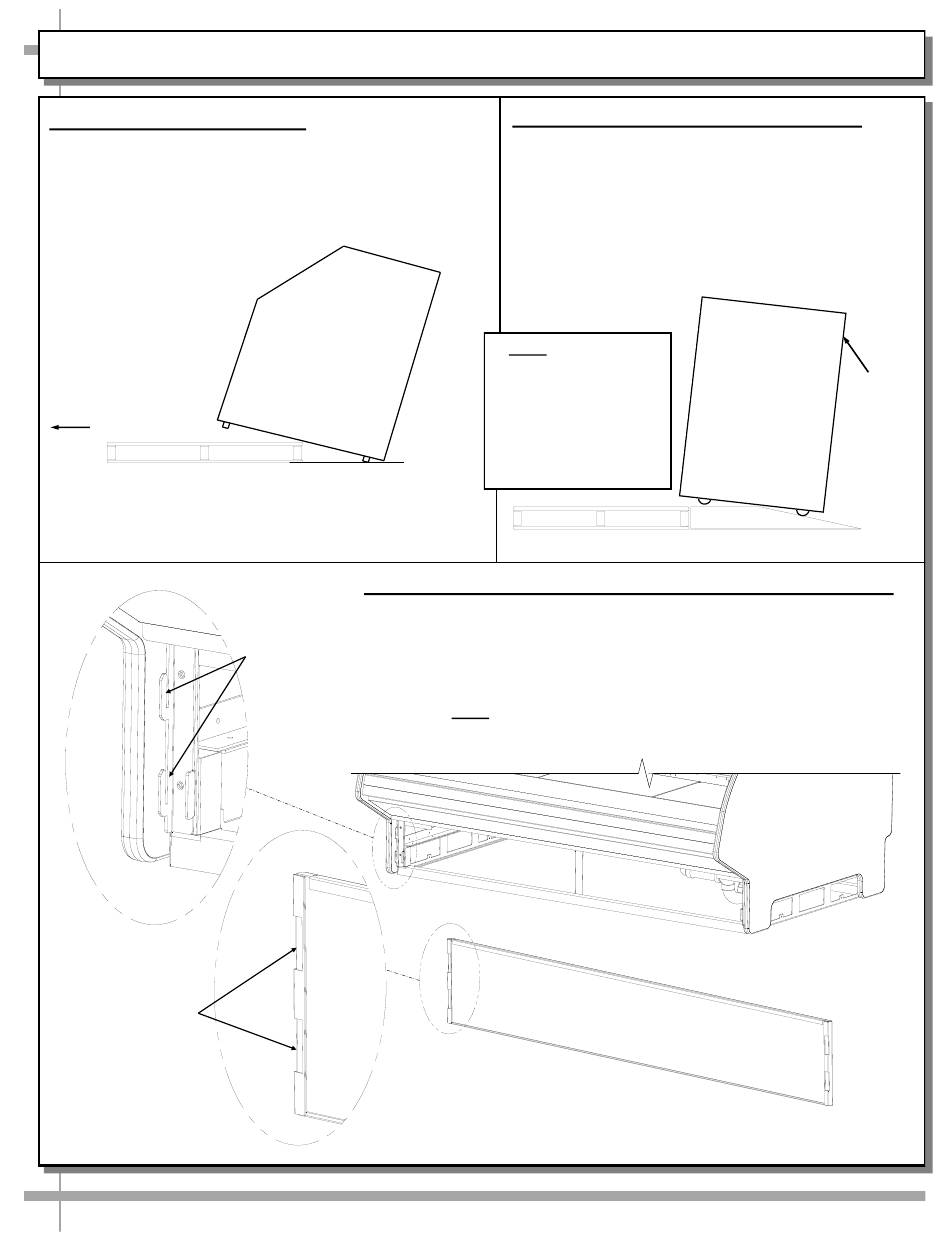

INSTALLATION: REMOVAL FROM SKID, REMOVING LOWER FRONT PANELS

1. Remove Case From Skid
• Remove shipping brace that may be
securing case to skid.
• Support case to prevent tipping.
• Caution! Rails can be damaged if case hits
floor with heavy force!
• Carefully slide unit to
rear of skid and tip
backward off skid.
• Illustration may not
reflect every feature
or option of your
particular case.
Slide Skid Out
Case can be repositioned with pallet truck when
front lower panel is removed. Blocking may be
necessary to obtain adequate height.
Slots
3. Removing Vertical Lower Front Panel (and Rear Panel)
Removing Lower Front Panel
•
•
Hooks
•
•
•
2. Remove Case From Skid (Casters)
Remove shipping brackets that may be securing
casters to skid
• Place ramp up against skid (to allow case to
smoothly slide off from skid).
• Maintain support of case at all times or center
of gravity may cause case to fall.
• Unlock Casters. Roll unit to rear of skid.
Roll down ramp
and off from skid.
Note: Illustrations
shown reflect a
general outline of
sample cases and do
not reflect features or
options of your
particular model.
No screw removal is required to remove lower front panel.
Simply lift lower front panel slots up and off case hooks.
Replace in same manner it was removed.
Rear panel is removable in same manner.
Note: Illustrations below may not exactly reflect every
feature or option of your particular case.
Lower Front Panel
(Reversed to Show Slots
6
Support
while
rolling
case
down
ramp.
Ramp
