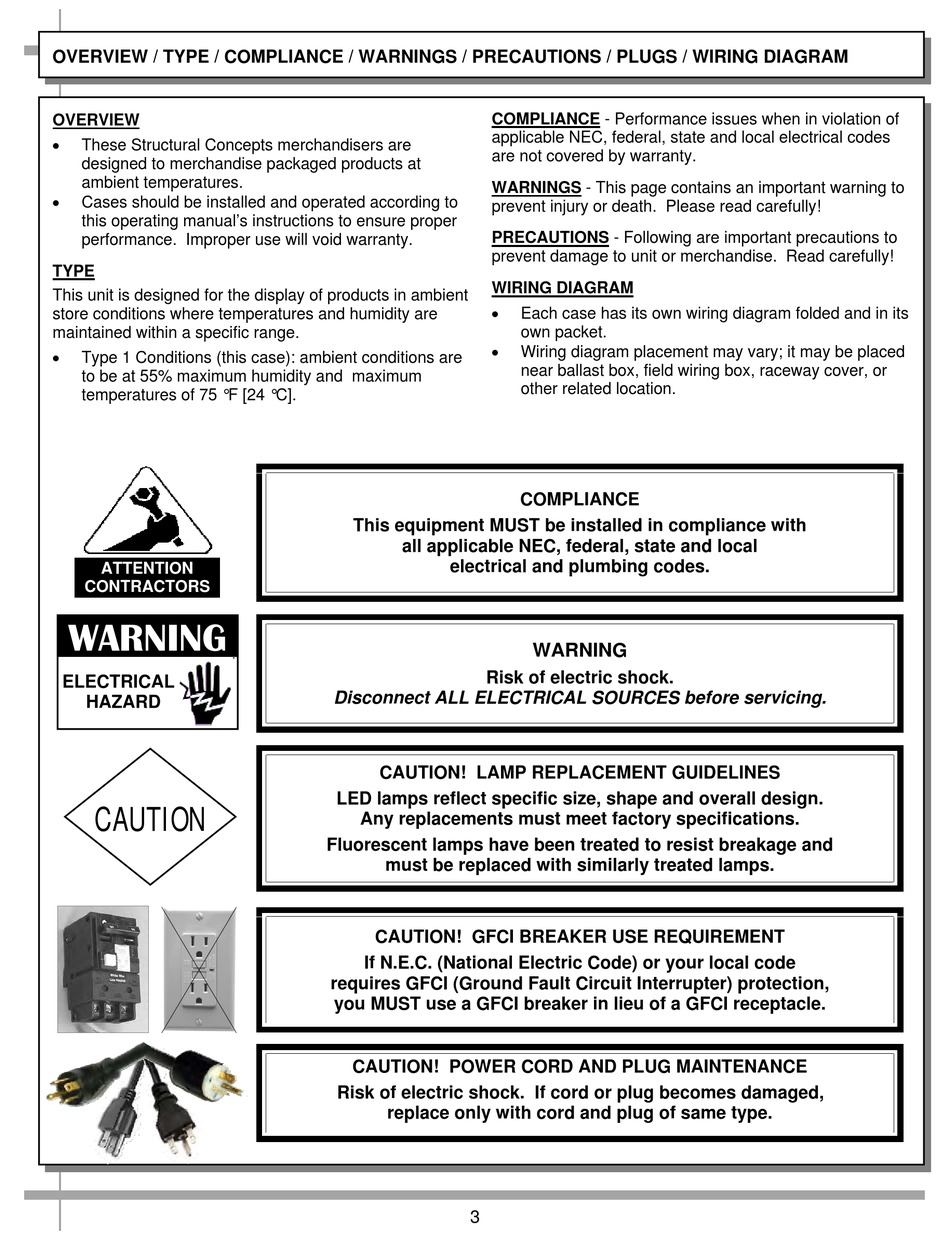

Overview / Type / Compliance / Warnings / Precautions / Plugs / Wiring Diagram - Structural Concepts HVP48SS Installation & Operating Manual

OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / PLUGS / WIRING DIAGRAM

OVERVIEW

These Structural Concepts merchandisers are
designed to merchandise packaged products at
ambient temperatures.

Cases should be installed and operated according to
this operating manual's instructions to ensure proper
performance. Improper use will void warranty.
TYPE
This unit is designed for the display of products in ambient
store conditions where temperatures and humidity are
maintained within a specific range.

Type 1 Conditions (this case): ambient conditions are
to be at 55% maximum humidity and maximum
temperatures of 75 °F [24 °C].
ATTENTION
CONTRACTORS
WARNING
ELECTRICAL
HAZARD
CAUTION
COMPLIANCE - Performance issues when in violation of
applicable NEC, federal, state and local electrical codes
are not covered by warranty.
WARNINGS - This page contains an important warning to
prevent injury or death. Please read carefully!
PRECAUTIONS - Following are important precautions to
prevent damage to unit or merchandise. Read carefully!
WIRING DIAGRAM


This equipment MUST be installed in compliance with
all applicable NEC, federal, state and local
electrical and plumbing codes.
Risk of electric shock.
Disconnect ALL ELECTRICAL SOURCES before servicing.
CAUTION! LAMP REPLACEMENT GUIDELINES
LED lamps reflect specific size, shape and overall design.
Any replacements must meet factory specifications.
Fluorescent lamps have been treated to resist breakage and
must be replaced with similarly treated lamps.
CAUTION! GFCI BREAKER USE REQUIREMENT
If N.E.C. (National Electric Code) or your local code
requires GFCI (Ground Fault Circuit Interrupter) protection,
you MUST use a GFCI breaker in lieu of a GFCI receptacle.
CAUTION! POWER CORD AND PLUG MAINTENANCE
Risk of electric shock. If cord or plug becomes damaged,
replace only with cord and plug of same type.
3
Each case has its own wiring diagram folded and in its
own packet.
Wiring diagram placement may vary; it may be placed
near ballast box, field wiring box, raceway cover, or
other related location.
COMPLIANCE
WARNING
