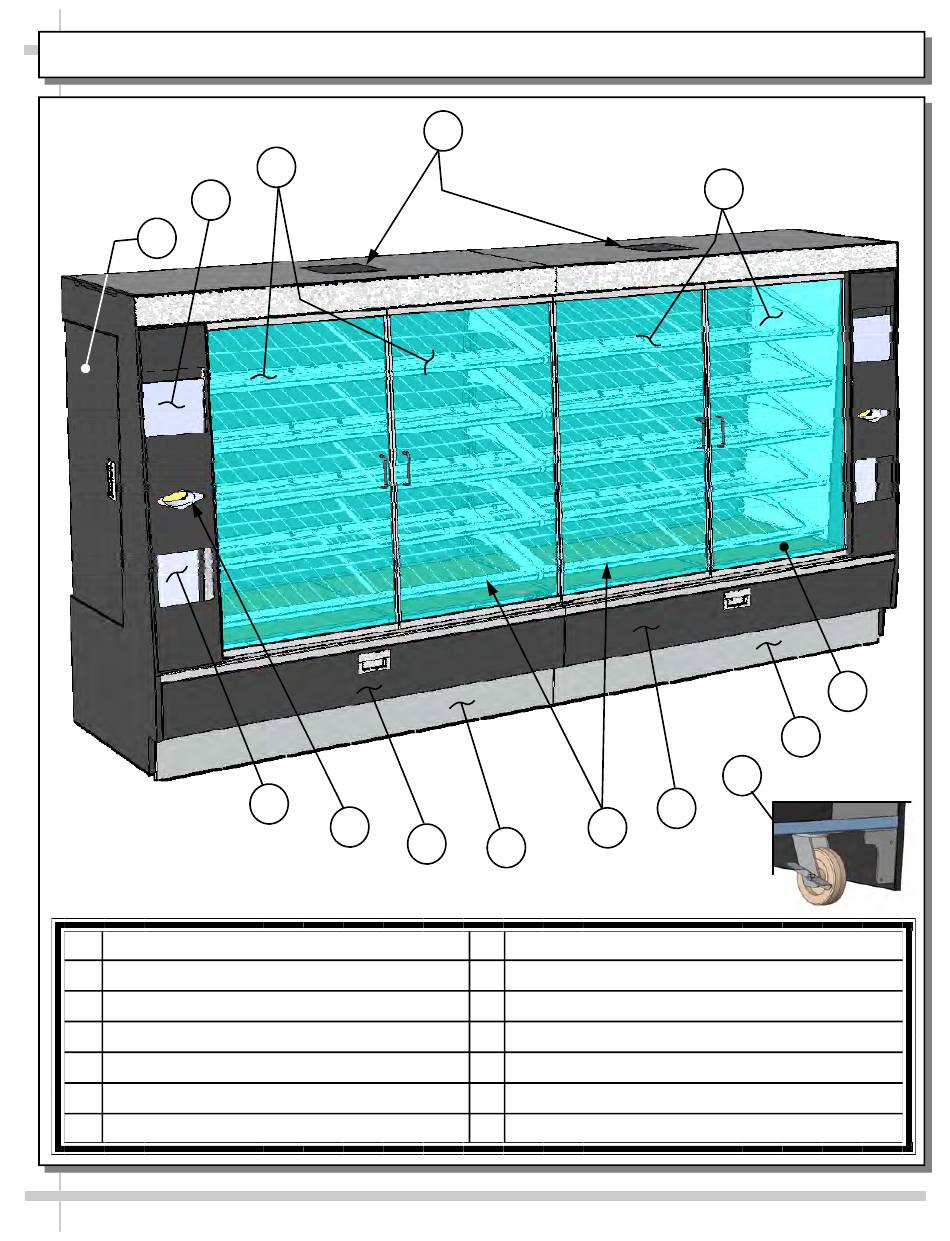

ILLUSTRATED PARTS BREAKDOWN [MODEL CDR7370 ONLY]

13
12
1 Fans (For Air Circulation)
2 Doors, Glass (Typical)
3 Deck (Typical)
4 Toe-Kick (Customer-Right)
5 Caster, Locking, at Case Underside (Typical)
6 Flip-Down Door (Customer-Right)
7 Shelving / Wire Rack (Typical)
1
14
11
10
9
7
8
8 Toe-Kick (Customer-Left)
9 Flip-Down Door To Shelf (Customer-Left)
10 Tissue Dispenser Cavity (Typical)
11 Bags/Sacks Dispenser Cavity (Typical)
12 Hinged Door To Shelves (Typical)
13 Box Dispenser Cavity (Typical)
14 Door, Glass (Typical)
