INSTALLATION: TOE-KICK & REAR PANEL REMOVAL / REMOVING SKID BRACKETS AND BLOCKS

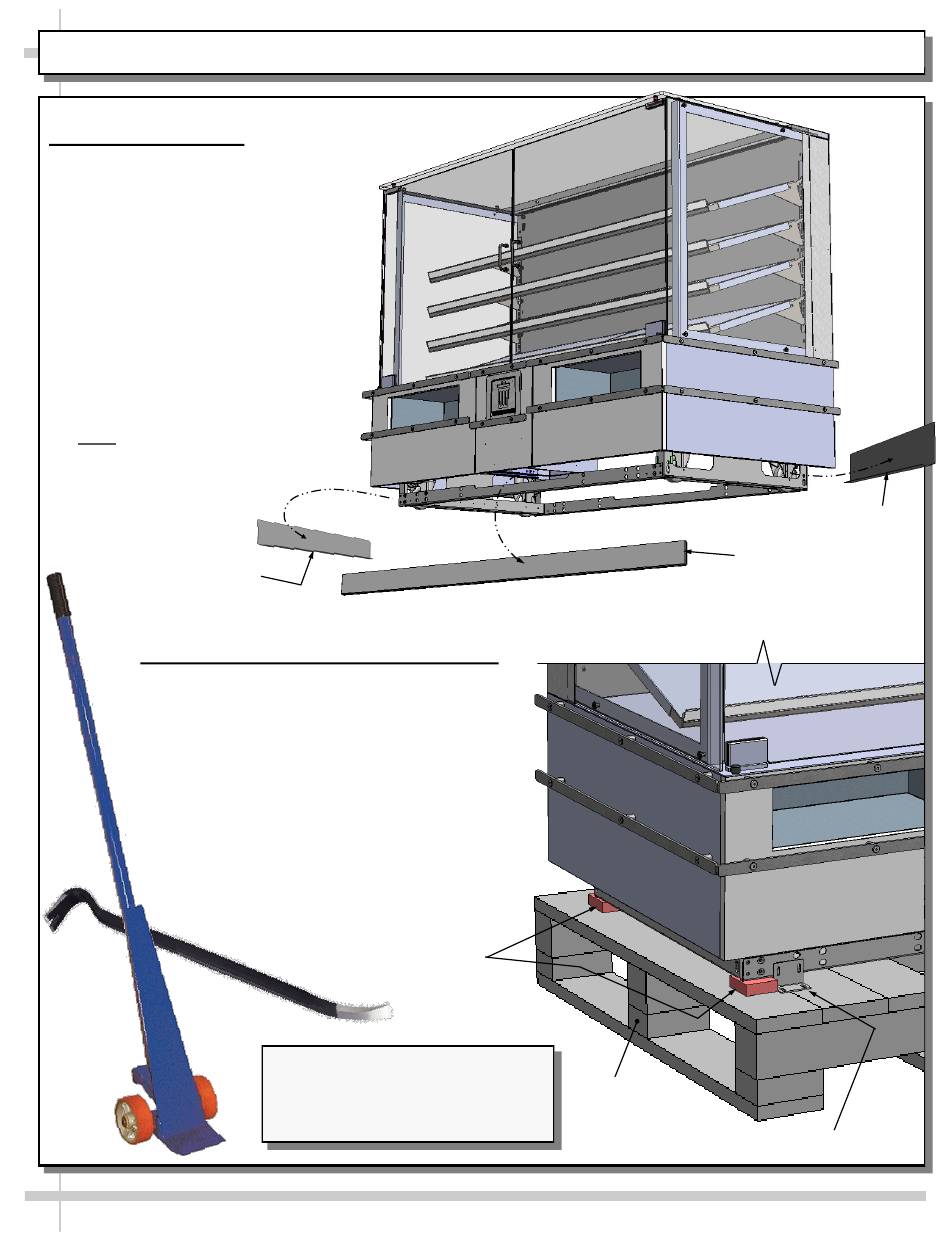

1. Remove Toe-Kicks
• To prevent damage to case, front
and side toe-kick should NOT be
on case at shipment.
• If they are, you must remove toe-
kicks from case before removing
case from skid.
• Toe-kicks are held in place by
magnets only.
• Place toe-kicks in secure locations
while removing case from skid.
• After case has been rolled into
location, adjusted and locked in
place, toe-kicks may be returned to
case.
• Note: Illustration at right is shown
without skid shown for illustrative
purposes.
Side Toe-Kick
2. Removing Skid Brackets and Blocks
• Use Phillips driver to remove screws from
shipping brackets. Remove and discard
shipping brackets from skid.
• Place J-bar/pry bar under base frame.
Raise case up from skid to take weight off
casters.
• With case raised, lower casters all the
way down against skid (see next step for
detailed instructions on lowering or
raising casters).
• Remove rubber shipping blocks.
Pry Bar
J-Bar
Rubber Shipping
Block
Illustrations Shown Reflects Model
NM7255DSSV. It May Not Exactly
Reflect Every Feature or Option of
Your Particular Merchandiser.
Skid
5
Side
Toe-Kick
Front
Toe-Kick
Shipping Bracket
