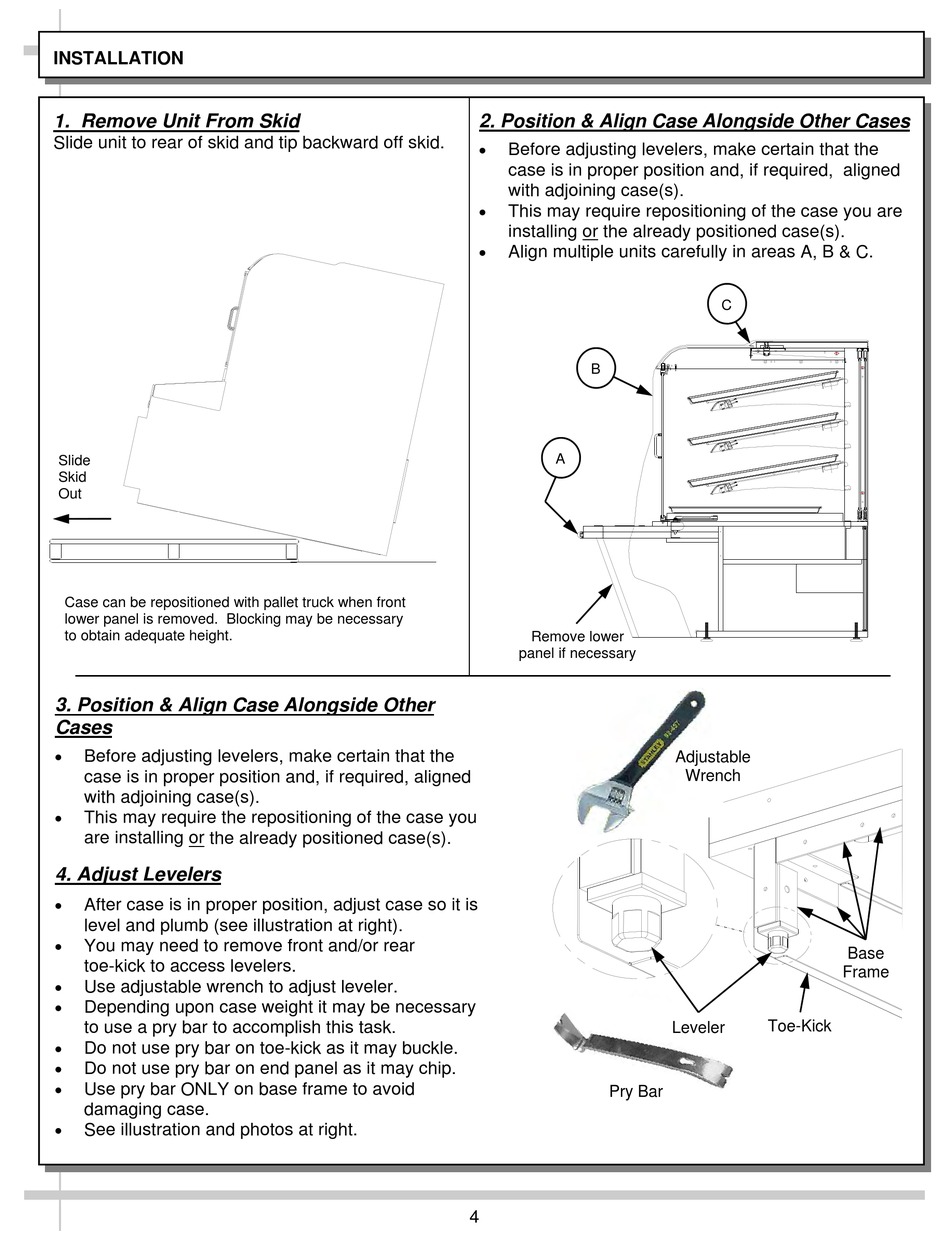

INSTALLATION

1. Remove Unit From Skid
Slide unit to rear of skid and tip backward off skid.
Slide
Skid
Out
Case can be repositioned with pallet truck when front
lower panel is removed. Blocking may be necessary
to obtain adequate height.
3. Position & Align Case Alongside Other
Cases

Before adjusting levelers, make certain that the
case is in proper position and, if required, aligned
with adjoining case(s).

This may require the repositioning of the case you
are installing or the already positioned case(s).
4. Adjust Levelers

After case is in proper position, adjust case so it is
level and plumb (see illustration at right).

You may need to remove front and/or rear
toe-kick to access levelers.

Use adjustable wrench to adjust leveler.

Depending upon case weight it may be necessary
to use a pry bar to accomplish this task.

Do not use pry bar on toe-kick as it may buckle.

Do not use pry bar on end panel as it may chip.

Use pry bar ONLY on base frame to avoid
damaging case.

See illustration and photos at right.
2. Position & Align Case Alongside Other Cases

Before adjusting levelers, make certain that the
case is in proper position and, if required, aligned
with adjoining case(s).

This may require repositioning of the case you are
installing or the already positioned case(s).

Align multiple units carefully in areas A, B & C.
B
A
Remove lower
panel if necessary
Pry Bar
4
C
Adjustable
Wrench
Base
Frame
Toe-Kick
Leveler
