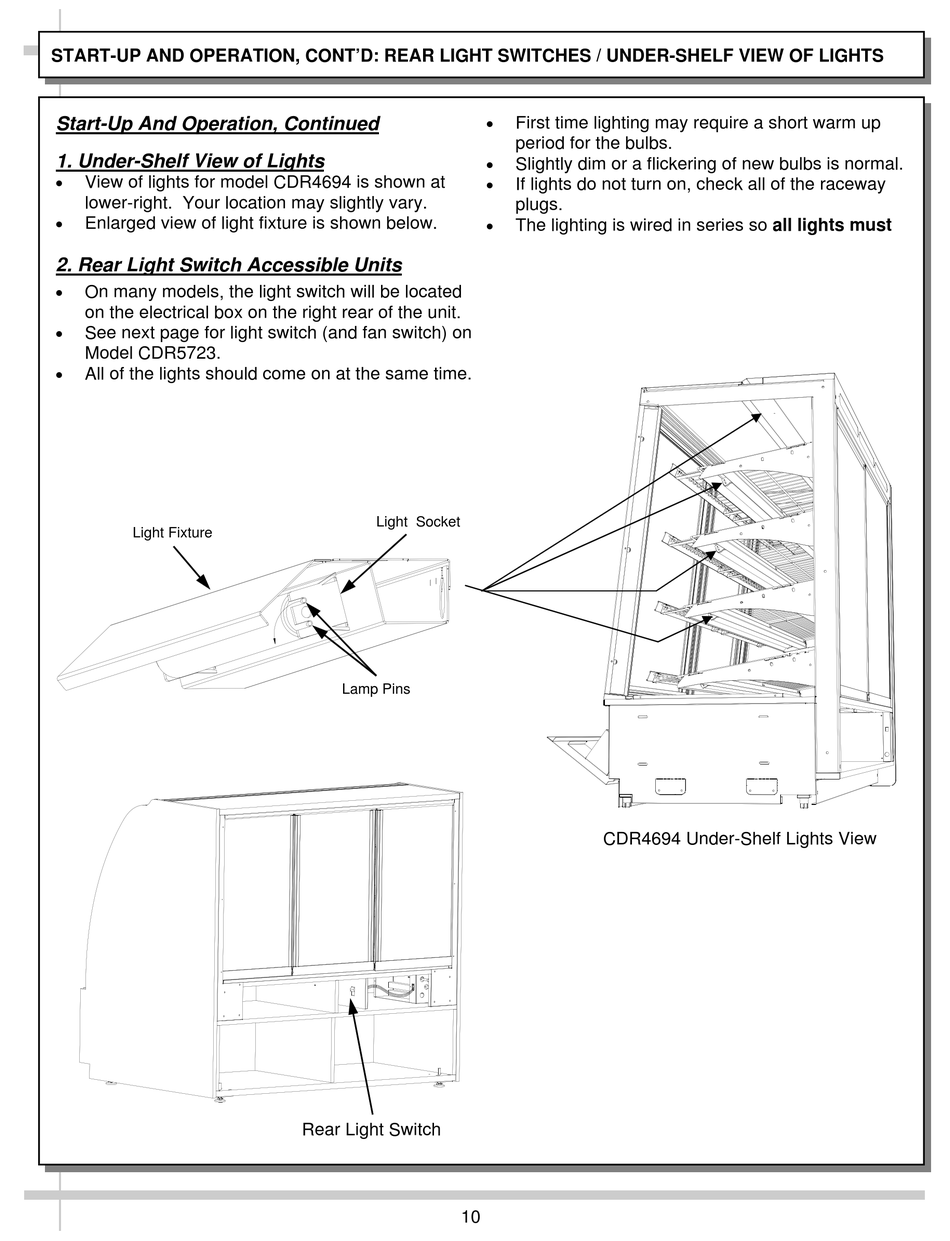

START-UP AND OPERATION, CONT'D: REAR LIGHT SWITCHES / UNDER-SHELF VIEW OF LIGHTS
Start-Up And Operation, Continued
1. Under-Shelf View of Lights

View of lights for model CDR4694 is shown at
lower-right. Your location may slightly vary.

Enlarged view of light fixture is shown below.
2. Rear Light Switch Accessible Units

On many models, the light switch will be located
on the electrical box on the right rear of the unit.

See next page for light switch (and fan switch) on
Model CDR5723.

All of the lights should come on at the same time.
Light Fixture
Light Socket
Lamp Pins
Rear Light Switch
10

First time lighting may require a short warm up
period for the bulbs.

Slightly dim or a flickering of new bulbs is normal.

If lights do not turn on, check all of the raceway
plugs.

The lighting is wired in series so all lights must
CDR4694 Under-Shelf Lights View
