INSTALLATION / POSITIONING AND ALIGNING / ADJUSTING LEVELERS

1. Remove Unit From Skid
Caution! case must always remain supported or
center of gravity will allow case to fall. Slide unit to
rear of skid and tip backward off skid.
Slide
Skid
Out
3. Adjust Levelers
• After case is in proper position, adjust case so it
is level and plumb (see illustration at right).
• You may need to remove front and/or rear
Toe-Kick to access levelers.
• Use adjustable wrench to adjust leveler.
• Depending upon case weight it may be necessary
to use a Pry Bar to accomplish this task.
• Do not use Pry Bar on Toe-Kick as it may buckle.
• Do not use Pry Bar on End Panel as it may chip.
• Use Pry Bar ONLY on Base Frame to avoid
damaging case.

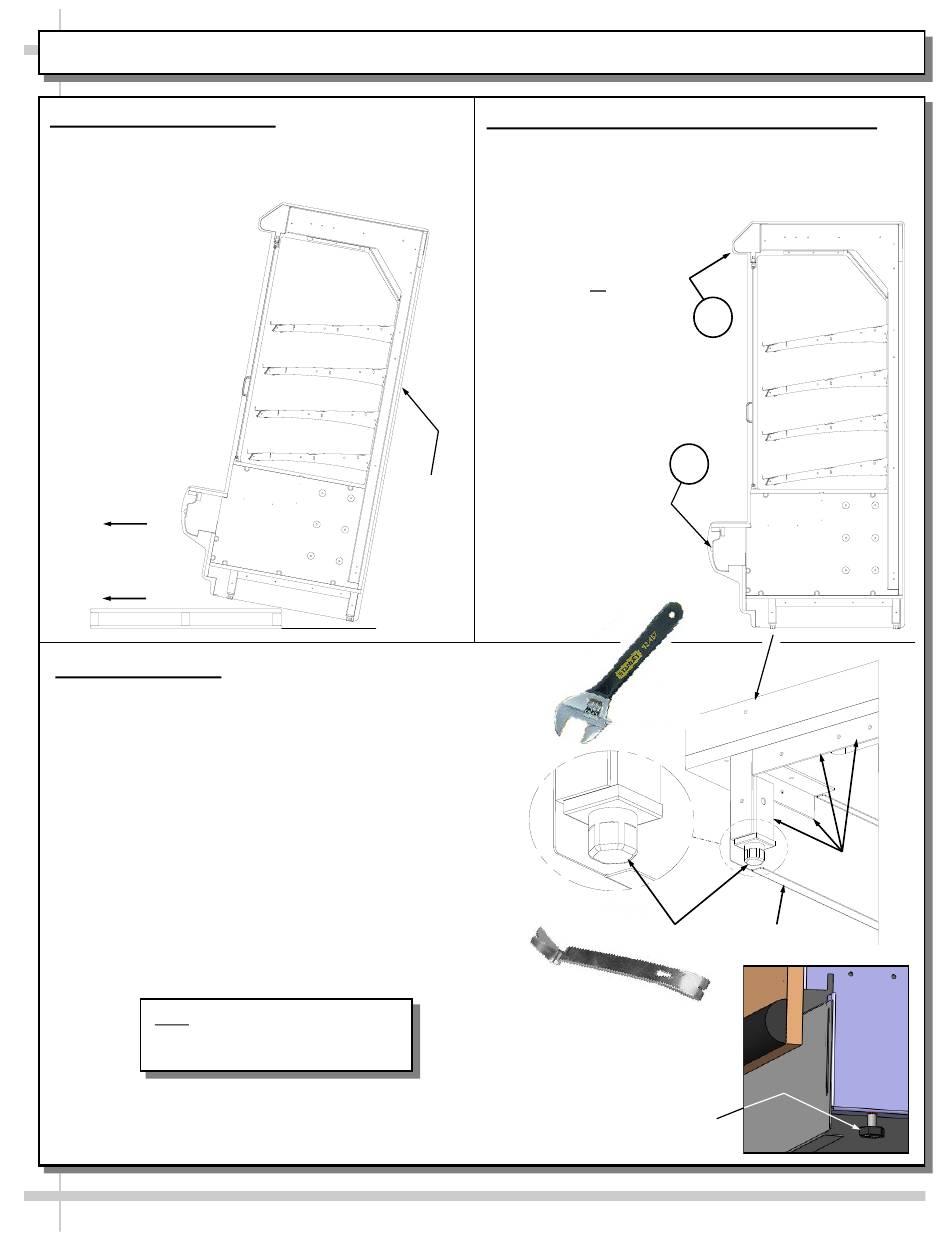

• See illustration and photos at right.
Note: Illustrations Shown May Not
Exactly Reflect Every Feature or
Option of Your Particular Case
2. Position & Align Case Alongside Others
• Before adjusting levelers, make certain that the
case is in proper position and, if required, aligned
with adjoining case(s). Line up areas A & B as
shown below.
• This may require the
repositioning of the
case you are
installing or the
already positioned
cases
Support
required to
prevent
tipping.
Alternate Leveler Style
4
A
B
Adjustable
Wrench
Toe-Kick
Leveler
Pry Bar
Base
Frame
