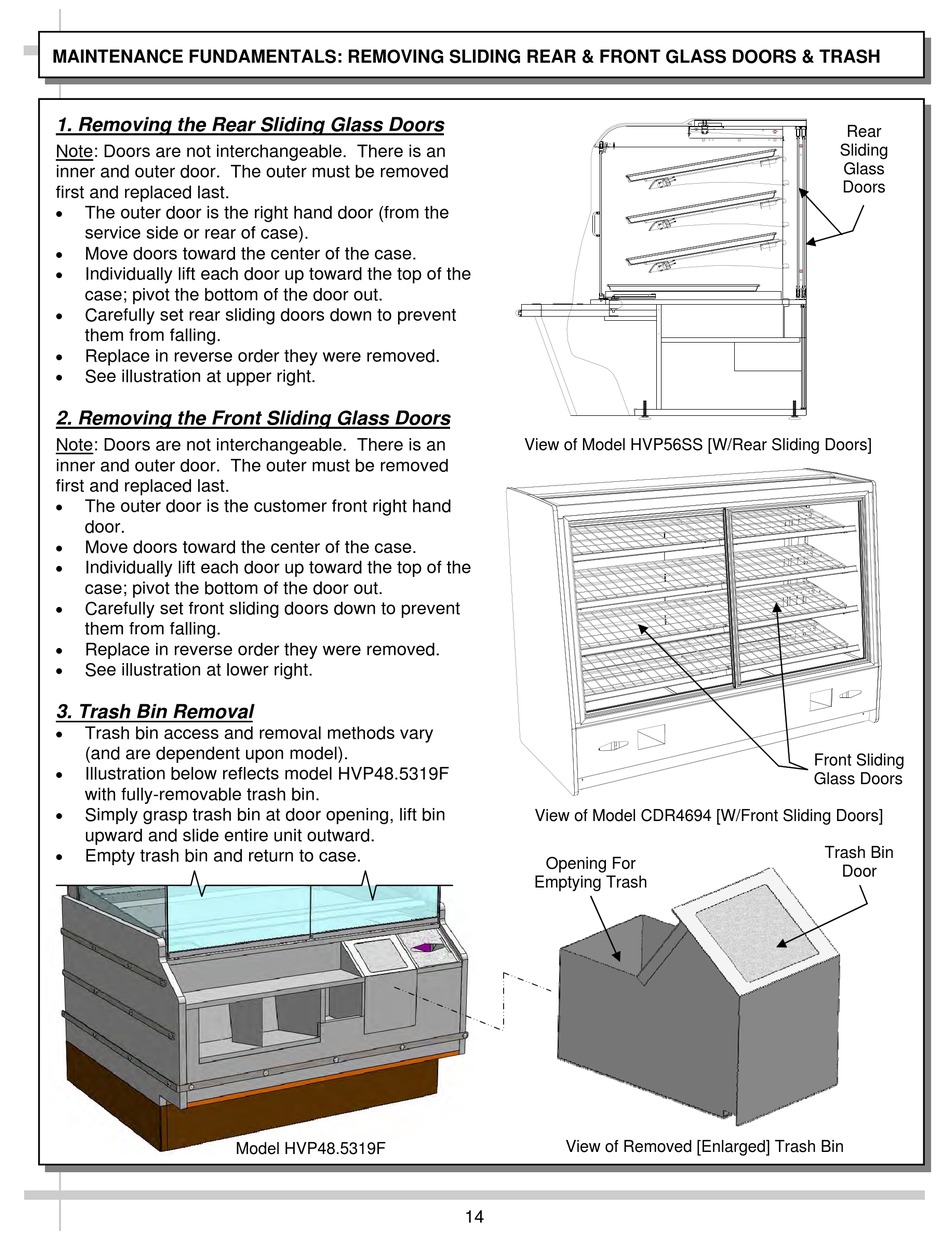

MAINTENANCE FUNDAMENTALS: REMOVING SLIDING REAR & FRONT GLASS DOORS & TRASH
1. Removing the Rear Sliding Glass Doors
Note: Doors are not interchangeable. There is an
inner and outer door. The outer must be removed
first and replaced last.

The outer door is the right hand door (from the
service side or rear of case).

Move doors toward the center of the case.

Individually lift each door up toward the top of the
case; pivot the bottom of the door out.

Carefully set rear sliding doors down to prevent
them from falling.

Replace in reverse order they were removed.

See illustration at upper right.
2. Removing the Front Sliding Glass Doors
Note: Doors are not interchangeable. There is an
inner and outer door. The outer must be removed
first and replaced last.

The outer door is the customer front right hand
door.

Move doors toward the center of the case.

Individually lift each door up toward the top of the
case; pivot the bottom of the door out.

Carefully set front sliding doors down to prevent
them from falling.

Replace in reverse order they were removed.

See illustration at lower right.
3. Trash Bin Removal

Trash bin access and removal methods vary
(and are dependent upon model).

Illustration below reflects model HVP48.5319F
with fully-removable trash bin.

Simply grasp trash bin at door opening, lift bin
upward and slide entire unit outward.

Empty trash bin and return to case.
Model HVP48.5319F
View of Model HVP56SS [W/Rear Sliding Doors]
View of Model CDR4694 [W/Front Sliding Doors]
Opening For
Emptying Trash
View of Removed [Enlarged] Trash Bin
