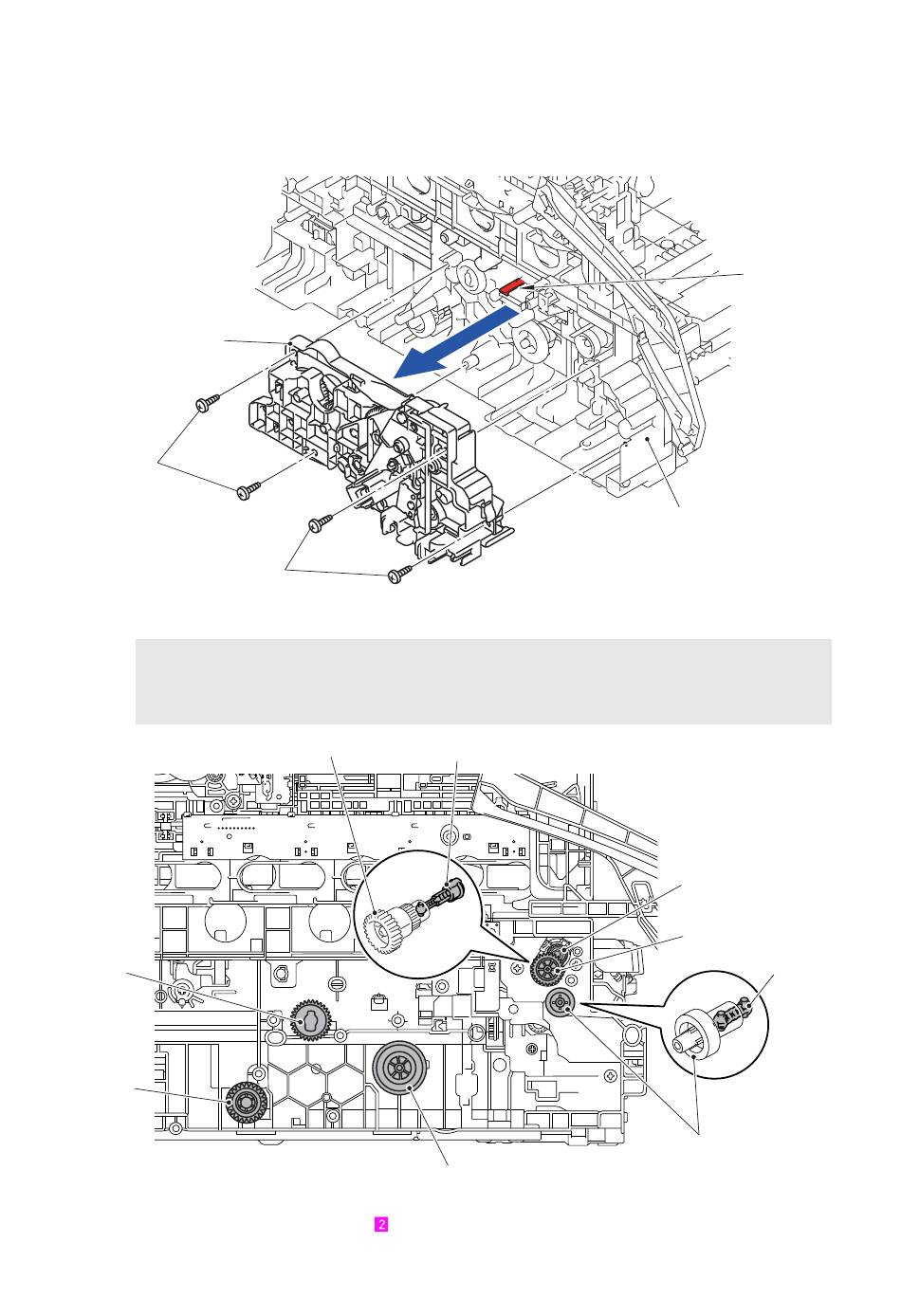

9.50 Main Drive Unit

(1) Release all the wiring from the Main drive unit.
(2) Remove the four Taptite bind B M4x12 screws from the Main drive unit.
Release the Hook and remove the Main drive unit from the Main body.
Main drive unit
Taptite
bind B
M4x12
Taptite bind B M4x12
Note:
As the DX drive gear Z15-23, Cleaner drive gear Z30, Registration gear Z26-23, PF drive
gear 21, PF drive joint, Pinch roller drive gear Z21M05, Registration roller drive joint, and
PP gear 14 55 tend to come off, be careful not to lose them.
Cleaner drive
gear Z30
DX drive
gear Z15-23
Harness routing: Refer to
<Left side>
Registration gear Z26-23
Registration roller drive joint
PP gear 14 55
" Process Drive Unit, Front Cover Sensor, Main Drive Unit"
Fig. 3-208
Fig. 3-209
3-150
Hook
Main body
Pinch roller drive
gear Z21M05
Registration
gear Z26-23
PF drive joint
<Front side>
PF drive gear 21
