3. 4 DMX MODE

• To set the DMX address, press the button MENU so many times until the display shows CONNECT, then
select throught the buttons UP/DOWN DMX ADDRESS, then press the button ENTER.
• Press UP/DOWN button to select the desired value (001-512). Press and hold to scroll quickly.
• Press ENTER button to store.
• Press the MENU button to go back or to meet the waiting time to exit the setup menu.
To operate the ECLIPSEHDTWC with a light controller, adjust the DMX start address for the first a DMX
channel. For example, If the controller is provided with to command the function of the first DMX
channel, adjust the start address 33 on the ECLIPSE. The other functions of the light effect panel are then
automatically assigned to the following addresses.
An example with the start address 33 is shown below:
Number of Start address
DMX channels (example)
5 33
DMX Address: 33
DMX512 Controller

3. 5 DMX CONFIGURATION

ECLIPSEHDTWC has several DMX channel configurations that can be accessed from the control panel.
• Press the button MENU so many times until the display shows CONNECT, then select throught the buttons
UP/DOWN DMX CHANNEL, then press the button ENTER.
• Select THEATER through the buttons UP/DOWN, then press the button ENTER.
• Select the desired DMX configuration (2CH, 5CH1, 5CH2, 7CH, 9CH, 12CH, 13CH, 16CH, 19CH) through the buttons
UP/DOWN.

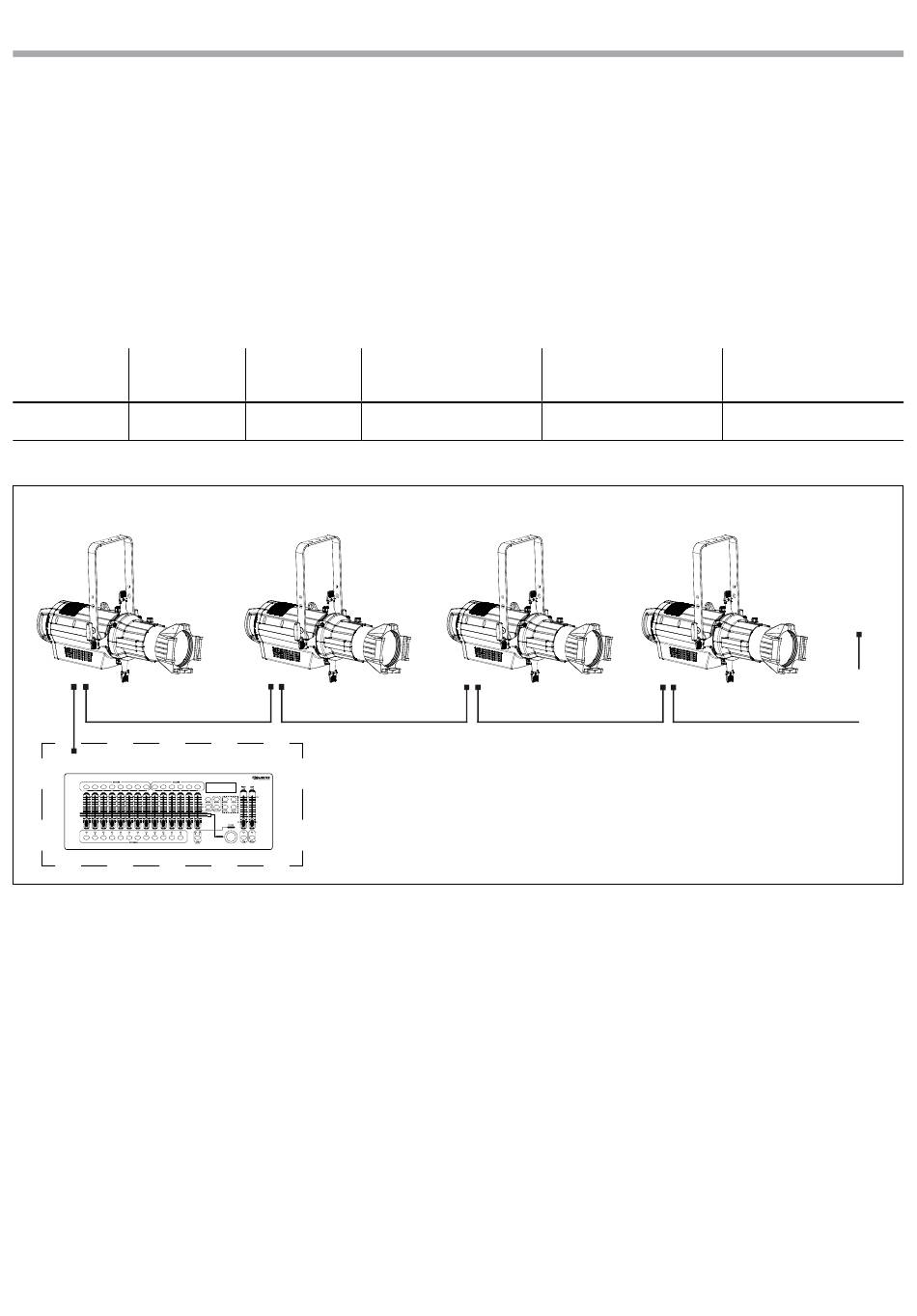

3. 6 LINKING

1. Connect the DMX OUT output of the main unit to the DMX IN input of the first secondary unit using a
5-pin XLR cable.
2. Connect the DMX OUT output of the first secondary unit to the DMX IN input of the second secondary
unit, etc.
ECLIPSEHDTWC
DMX Address Next possible start
occupied address for unit No. 1
33-37
DMX Address: 38
Next possible start
address for unit No. 2
38
DMX Address: 43
Fig.5 - Example 5 DMX channels configuration
Next possible start
address for unit No. 3
43
DMX Address: 48
48
. . . . . . . . . . . .
