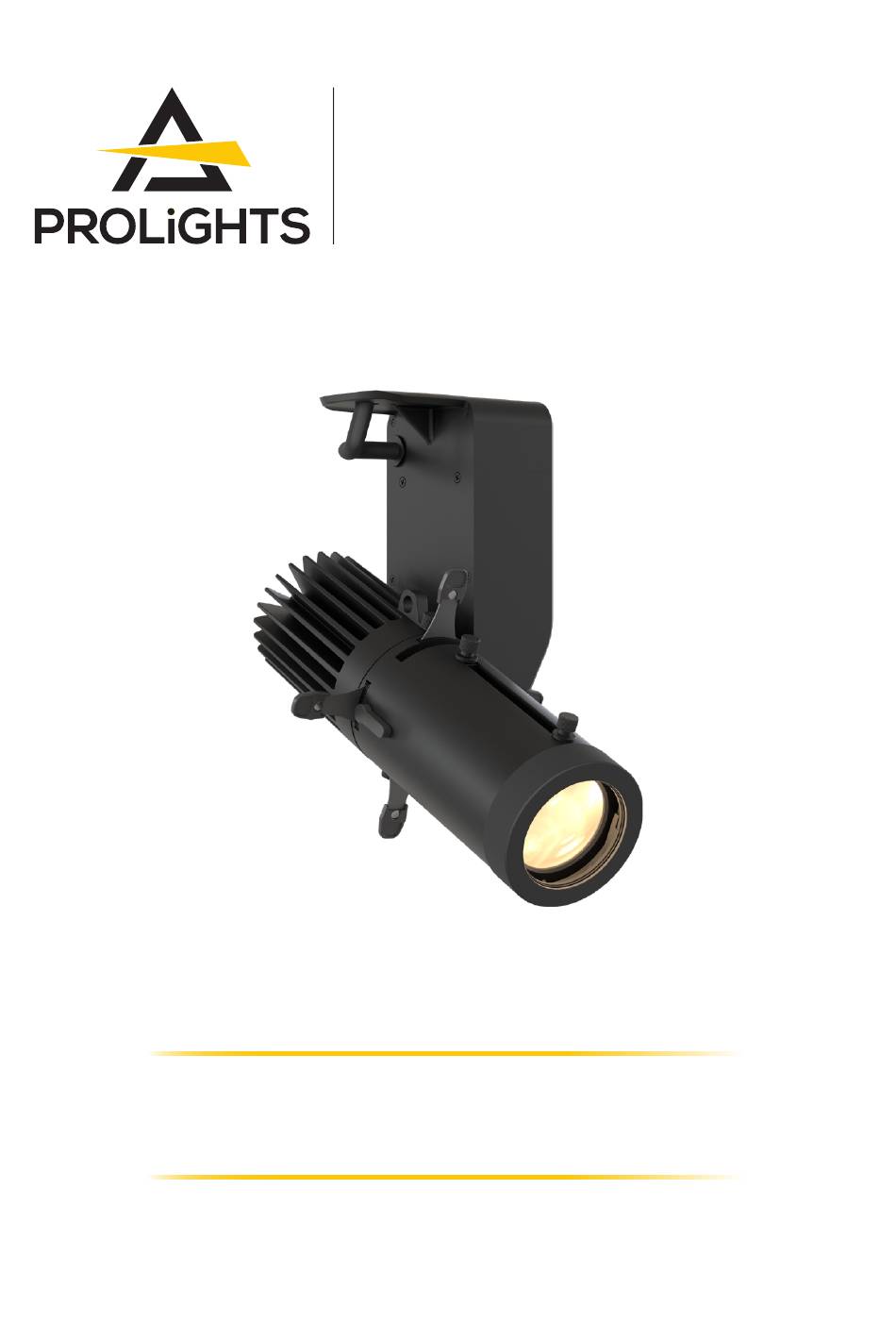

- Page 1 EclDisplay CRMX VW 35W Variable White LED Spotlight with Wireless CRMX and wired control, without lens USER MANUAL English version Rev.01 - 07/24...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY...
-
Page 3: Table Of Contents
HALF SNOOT, FULL SNOOT (CODES ECLDISPHSNOOT, ECLDISPFSNOOT - OPTIONAL) ........................26 CEILING ADAPTER KIT (CODES ECLDISPCEILKIT, ECLDISPCEILFLG - OPTIONAL) ..27 12 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............30 VISUAL CHECK OF PRODUCT HOUSING ..............30 TROUBLESHOOTING ..................... 31 PROLIGHTS - EclDisplayCRMX VW... -
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. - Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
- Page 6 2. This device must accept any interference received, including interference that may cause undesired operation. Other approvals • The product meets the safety requirements of the certification procedures of the market in which it is placed and sold. PROLIGHTS - EclDisplayCRMX VW...
-
Page 7: Packaging
• NASPW12SK35M: global Pulse Track clip wire suspension set 5m, 150N, white; • NASKB122/3: global Pulse Track Mounting Clamp for Rod and Wire, 200N, black/white; • NAXTSC6212/3: global Pulse XTS Connector 3-CCT DALI straight connector, black/white. PROLIGHTS - EclDisplayCRMX VW... -
Page 8: Technical Drawing
[12.4 in] Ø97 mm Ø97 mm [3.8 in] [3.8 in] Ø97 mm [3.8 in] Weight: TBD kg - TBD lbs ECLDISPLAYCRMXVW with ECLDISPPHDZL2040 Fig. 01 Ø59 mm Ø59 mm [Ø2.3 in] [Ø2.3 in] PROLIGHTS - EclDisplayCRMX VW Ø59 mm [Ø2.3 in]... - Page 9 185 mm 309 mm [7.3 in] [12.1 in] Ø99 mm [3.9 in] Weight: 2.19 kg - 4.82 lbs ECLDISPLAYCRMXVW with ECLDISPPRZL1020 Ø99 mm Fig. 02 [3.9 in] Ø99 mm Ø60 mm [3.9 in] [Ø2.4 in] PROLIGHTS - EclDisplayCRMX VW Ø60 mm...
- Page 10 Ø99 mm [3.9 in] Ø60 mm [Ø2.4 in] 154 mm [6.1 in] 185 mm 269 mm [7.3 in] [10.6 in] Ø82 mm [3.2 in] Weight: 1.99 kg - 4.38 lbs ECLDISPLAYCRMXVW with ECLDISPPRZL2040 PROLIGHTS - EclDisplayCRMX VW...
-
Page 11: Tilt Range
4 - TILT RANGE TILT RANGE: 135° Fig. 03 PROLIGHTS - EclDisplayCRMX VW... -
Page 12: Installation
Do not use any type of clamp that does not completely encircle the structure when fastened. C6002 clamp RSR0630A/B Steel security cable Track system 97 [3.8] 17 [0.7] Ø4 [Ø0.2] Ø13 [Ø0.5] Dimensions are in mm / in - Fig. 04 PROLIGHTS - EclDisplayCRMX VW... -
Page 13: Connection To The Mains Supply
(earthed) plug, following the plug manufacturer’s instructions. If you have any doubts about proper installation, consult a qualified electrician. The max power consumption is 33W. Remove the plastic cover to acces to the screw terminal blocks. Fig. 06 PROLIGHTS - EclDisplayCRMX VW... -
Page 14: Connection To Mains Via Terminal Block
CONNECTION TO MAINS VIA TERMINAL BLOCK Fig. 07 CONNECTION TO DMX LINE VIA TERMINAL BLOCK Fig. 08 PROLIGHTS - EclDisplayCRMX VW... -
Page 15: Start Up
5. RUBBER RING (accessory included in the box optic); 6. KNOB for adjusting dimmer or CCT (only VW version); 7. REMOVABLE PLASTIC COVER to access to the screw terminal blocks; 8. PLASTIC ARM COVER; 9. LOCK TILT. Fig. 09 PROLIGHTS - EclDisplayCRMX VW... -
Page 16: Rdm Functions
0x0122 DIMMER_INFO 0x0340 CURVE 0x0343 CURVE_DESCRIPTION 0x0344 Dimmer Settings OUTPUT_RESPONSE_TIME 0x0345 OUTPUT_RESPONSE_TIME_ DESCRIPTION 0x0346 MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_ DESCRIPTION 0x0348 DEVICE_HOURS 0x0400 LAMP_HOURS 0x0401 LAMP_STRIKES 0x0402 Power/Lamp Settings LAMP_STATE 0x0403 LAMP_MODE 0x0404 DEVICE_POWER_CYCLES 0x0405 Control IDENTIFY_MODE 0x1040 PROLIGHTS - EclDisplayCRMX VW... - Page 17 POWER CONSUMPTION (AC 220V) 0x82DE Default: 300 10-300 MAINTENANCE TIME:ALERT PERIOD 0x82DF 0-255 MAINTENANCE TIME:ELAPSED TIME 0x82E0 0: No CLEAN ALL DATA 0x82C8 1: Yes 0: No WIRELESS 0x8212 1: Yes 0: No WIRELESS RESET 0x8215 1: Yes PROLIGHTS - EclDisplayCRMX VW...
- Page 18 To choose and reset unit maintenance TIME warning hours. ALERT PERIOD POWER Show actual power consumption. CONSUMPTION SOFTWARE View informations about software VERSION version. DEVICE INFO DEVICE LABEL RDM UID View ID for the RDM control. PROLIGHTS - EclDisplayCRMX VW...
- Page 19 This unit must be the first unit in line; SLAVE Set the successive units to be slave. 0 - 255 DIMMER 0 - 20 STROBE 0 - 255 0 - 255 WARM WHITE 0 - 255 COLD WHITE 11 FACTORY DEFAULT PROLIGHTS - EclDisplayCRMX VW...
-
Page 20: Dmx Charts
16 bit value Function Note From From Open Default @ 255 Strobe from Slow to Fast Open Pulse In from slow to fast Close Pulse Out from slow to fast Open Random from slow to fast Open PROLIGHTS - EclDisplayCRMX VW... - Page 21 16 bit value Function Note From From 0 - 100% 65535 Default @ 255 / 65535 Cold White 8 bit value 16 bit value Function Note From From 0 - 100% 65535 Default @ 255 / 65535 PROLIGHTS - EclDisplayCRMX VW...
- Page 22 LED FREQUENCY 4000HZ LED FREQUENCY 6000HZ LED FREQUENCY 25KHZ STAND ALONE MASTER DMX STAND ALONE MASTER NO DMX STAND ALONE SLAVE DMX FAULT HOLD DMX FAULT BLACKOUT DMX FAULT STAND ALONE Reserved FACTORY DEFAULT OF CONTROL FUNCTIONS Reserved PROLIGHTS - EclDisplayCRMX VW...
-
Page 23: Accessories Installation
NOTE: the mounting procedure described below is the same for all lenses. Loosen the two marked knob of the ECLDISPLAY. Insert the optic (2-A) and rotate it (2-B) so the marked grooves (3) of the optic coincides with the four marked flaps of the unit (4). PROLIGHTS - EclDisplayCRMX VW... - Page 24 The marked lever in position A allows the locking of the blades. Rotating the lever to position B or C allows the release of the blades. This operation must be repeated for both levers on the frame system. Fig. 10 PROLIGHTS - EclDisplayCRMX VW...
-
Page 25: Barndoor And Filter Frame (Code Ecldispbdnffb - Optional)
(3). Insert the holder from above throught the track Move the marked rod down (6). (4). Then insert the barn door (5). Fig. 11 PROLIGHTS - EclDisplayCRMX VW... -
Page 26: Anti-Glare Louvre (Code Ecldisplouvre - Optional)
NOTE: the rubber ring can also be used to fix a filter with a maximum diameter of 79 mm. Anti-glare louvre Rubber ring Insert the anti-glare louvre or a filter of maximum size of Ø79 mm into the rubber ring. Mount the anti-glare louvre with the rubber ring on the optic. Fig. 12 PROLIGHTS - EclDisplayCRMX VW... -
Page 27: Gobo Holder (Code Ecldispgobohind - Optional)
To mount the gobo remove the spring (1) from the gobo holder. Then insert the gobo following the sequence of image 2. Loosen the two marked knobs of the optic (3). Then move the cover plate (4). Insert the gobo holder into the slot provided on the optic (5). Fig. 13 PROLIGHTS - EclDisplayCRMX VW... -
Page 28: Half Snoot, Full Snoot (Codes Ecldisphsnoot, Ecldispfsnoot - Optional)
Loosen the three marked knob. Insert the half snoot on the optic and tighten the knobs in the egraved ring. Loosen the three marked knob. Insert the full snoot on the optic and tighten the knobs in the egraved ring. Fig. 14 PROLIGHTS - EclDisplayCRMX VW... -
Page 29: Ceiling Adapter Kit (Codes Ecldispceilkit, Ecldispceilflg - Optional)
230 mm 100 mm 35 mm [1.4 in] [3.9 in] [9.1 in] [3.9 in] [1.4 in] 110 mm [4.3 in] Ø200 mm [7.9 in] Measurements for cuts on the panels (1) and of the ECLDISPCEILFLG (2). PROLIGHTS - EclDisplayCRMX VW... - Page 30 Mount the marked ceiling adapter kit on the ceiling by tightening the screws in the marked points (4). Fit the M6 screw to fix the projector (placed upside down) in the holes provided in the back housing (see detail). Fit the M4 screw to lock rotation. PROLIGHTS - EclDisplayCRMX VW...
- Page 31 (6). Tighten the M4 screw (6) to lock the vertical movement of the plate. Mount the flange tightening the two marked screws (7) to complete the ceiling adapter kit. Fig. 15 PROLIGHTS - EclDisplayCRMX VW...
-
Page 32: Maintenance
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. -
Page 33: Troubleshooting
Timeout error after fixture • One or more hardware • Check product stored error messages for more reset. • components requires information. Contact PROLIGHTS Service or an • mechanical adjustments authorized service partner. Mechanical effect loses • Mechanical hardware •... - Page 34 Note...
- Page 36 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
