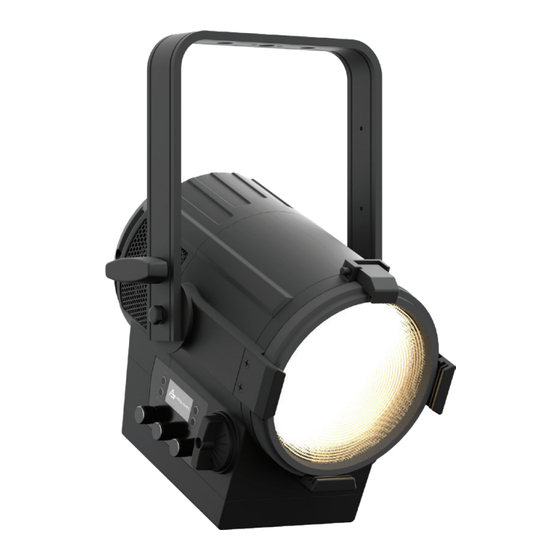

- Page 1 EclFresnel JrVW EclFresnel JrVWPO 150W Variable White LED Mini Fresnel (2,700K - 5,600K), with manual zoom 16° - 60° USER MANUAL English version REV.01-05/22...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
-
Page 3: Table Of Contents
BARN DOOR (CODE ECLFRSJBD - OPTIONAL)............22 BATTERY PACK KIT (CODE ECLFRSJBP4 - OPTIONAL) ..........23 15 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............24 REPLACING THE FUSE ....................24 VISUAL CHECK OF PRODUCT HOUSING ..............24 TROUBLESHOOTING ..................... 25 PROLIGHTS - EclFresnel JrVW / VWPO... -
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. - Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
- Page 6 • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). Other approvals • The product meets the safety requirements of the certification procedures of the market in which it is placed and sold. PROLIGHTS - EclFresnel JrVW / VWPO...
-
Page 7: Packaging
• 1x ECLFRESNELJVW/ VWPO; • 1x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1); • 1x ECLFRSPG: spigot for PROLIGHTS Fresnel series; • 1x ECLFRSJBD: barn door with 8 directional flaps to adjust the light beam; • 1x ECLFRSJTPG: filter frame for ECLFRESNELJ series;... -
Page 8: Technical Drawing
[10.3 in] [9.2 in] ECLFRESNELTU-DY - Weight: 6 kg / 13.2 lbs 297 mm 260 mm 239 mm [11.7 in] [10.3 in] [9.4 in] ECLFRESNELPTU-PDY - Weight: 7.5 kg - 16.5 lbs Fig. 01 PROLIGHTS - EclFresnel JrVW / VWPO... - Page 9 340 mm 233 mm [13.4 in] [9.2 in] ECLFRESNELTU-DY - Weight: 6 kg / 13.22 lbs 340 mm 239 mm [13.4 in] [9.4 in] ECLFRESNELPTU-PDY - Weight: 7.5 kg - 16.5 lbs Fig. 02 PROLIGHTS - EclFresnel JrVW / VWPO...
-
Page 10: Installation
C6040 RSR0630A/B C6040 RSR0630A/B clamp steel security cable clamp steel security cable clamp steel security cable 201 mm 7.9 in 38 mm 1.5 in Ø13 mm 80 mm Ø0.5 in 3.1 in Fig. 03 PROLIGHTS - EclFresnel JrVW / VWPO... -
Page 11: Connection To The Mains Supply
• The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - EclFresnel JrVW / VWPO... -
Page 12: Product Overview
12. DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C; 13. POWER OUT: power output for connection of multiple units in series. 14. MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (T2A 250V); 11 12 Fig. 04 PROLIGHTS - EclFresnel JrVW / VWPO... -
Page 13: Dmx Connection
... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 06 - Example 5 DMX channels configuration PROLIGHTS - EclFresnel JrVW / VWPO... -
Page 14: Construction Of The Dmx Termination
2. Reach the addressing menu, then select the DMX ADDRESS settings. 3. Select the address from 1 to 512 using the navigation arrows/buttons and confirm by pressing ENTER. 4. Press Menu to exit and return to the Home screen. PROLIGHTS - EclFresnel JrVW / VWPO... -
Page 15: Control Panel
• DOWN: browse downwards through the menu list and decreases the numeric value displayed; • ENTER: used to confirm the current menu or confirm the current function value or option within a menu. • ROTARY KNOB 1, 2, 3: used to control stand alone modes. PROLIGHTS - EclFresnel JrVW / VWPO... -
Page 16: Menu Structure
FAST MEDIUM SLOW WHITE Disable the White Calibration. CALIBRATION MANUAL WARM WHITE <125-255> To adjust the max level for each color. COLD WHITE <125-255> 600Hz Select PWM frequency. FREQUENCY 1200Hz 2000Hz 4000Hz 6000Hz 25KHz PROLIGHTS - EclFresnel JrVW / VWPO... - Page 17 WW and CW value. STATIC FIXED COLOR DIMMER Select following <000 - 255> predefined color combination and its Dimmer value. After WW+CW STROBE enabled this mode, the unit <000 - 255> will be automatically assigned as Master PROLIGHTS - EclFresnel JrVW / VWPO...
- Page 18 <000 - 255> MANUAL User generated color preset COLOR <000 - 255> by assigning values to each primary color attribute. After STROBE <000 - 255> enabled this mode, the unit will be automatically assigned as Master PROLIGHTS - EclFresnel JrVW / VWPO...
-
Page 19: Rdm Functions
0x0141 DMX_STARTUP_MODE 0x0142 DIMMER_INFO 0x0340 MINIMUM_LEVEL 0x0341 MAXIMUM_LEVEL 0x0342 CURVE 0x0343 Dimmer CURVE_DESCRIPTION 0x0344 Settings OUTPUT_RESPONSE_TIME 0x0345 OUTPUT_RESPONSE_TIME_ DESCRIPTION 0x0346 MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_ DESCRIPTION 0x0348 SENSOR_DEFINITION 0x0200 SENSOR_VALUE 0x0201 Sensors RECORD_SENSORS 0x0202 BURN_IN 0x0440 PROLIGHTS - EclFresnel JrVW / VWPO... -
Page 20: Shortcuts
OFF by the product protection system. Need to be done standard maintenance and also reset of elipsed [MAINTENANCE TIME] time [DMX ACTIVE] Transfer configuration is used with dmx signal connected PROLIGHTS - EclFresnel JrVW / VWPO... -
Page 21: Dmx Charts
Lineary From 2700k To 5600k 000 ÷ 255 CCT FINE Lineary From 2700k To 5600k 000 ÷ 255 CROSSFADE 0~100% 000 ÷ 255 WARM WHITE 0~100% 000 ÷ 255 WARM WHITE FINE 0~100% 000 ÷ 255 PROLIGHTS - EclFresnel JrVW / VWPO... - Page 22 Stand Alone Fixed Color 074 ÷ 075 Stand Alone White Preset 076 ÷ 077 Stand Alone Manual Color 078 ÷ 079 RESERVED 080 ÷ 253 FACTORY DEFAULT OF ALL 254 ÷ 255 CONTROLLED FUNCTION PROLIGHTS - EclFresnel JrVW / VWPO...
-
Page 23: Accessories Installation
Press the pin (1) and the snap will automatically open upwards (2). Insert the gel filter frame (3) into the gel frame lock (DETAIL) and close down the snap. NOTE: To remove the accessory, reverse the procedure. Fig. 09 PROLIGHTS - EclFresnel JrVW / VWPO... -
Page 24: Barn Door (Code Eclfrsjbd - Optional)
Press the pin (1) and the snap will automatically open upwards (2). Insert the barn door (3) into the gel frame lock (DETAIL-1) throught the holder assembly of the barn door (DETAIL-2). Then close down the snap. NOTE: To remove the accessory, reverse the procedure. Fig.10 PROLIGHTS - EclFresnel JrVW / VWPO... -
Page 25: Battery Pack Kit (Code Eclfrsjbp4 - Optional)
1. Mount the battery pack (1) by fixing one of the two holes to one of the two battery holders (2) on the unit bracket, and push it down (3). Then connect the battery pack to the unit with the 4-pole connector (4). NOTE: To remove the accessory, reverse the procedure. Fig.11 PROLIGHTS - EclFresnel JrVW / VWPO... -
Page 26: Maintenance
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. -
Page 27: Troubleshooting
• Check if the Fuse is intact and eventually replace it if fault. necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in... - Page 28 Note...
- Page 29 Note...
- Page 30 Note...
- Page 32 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
