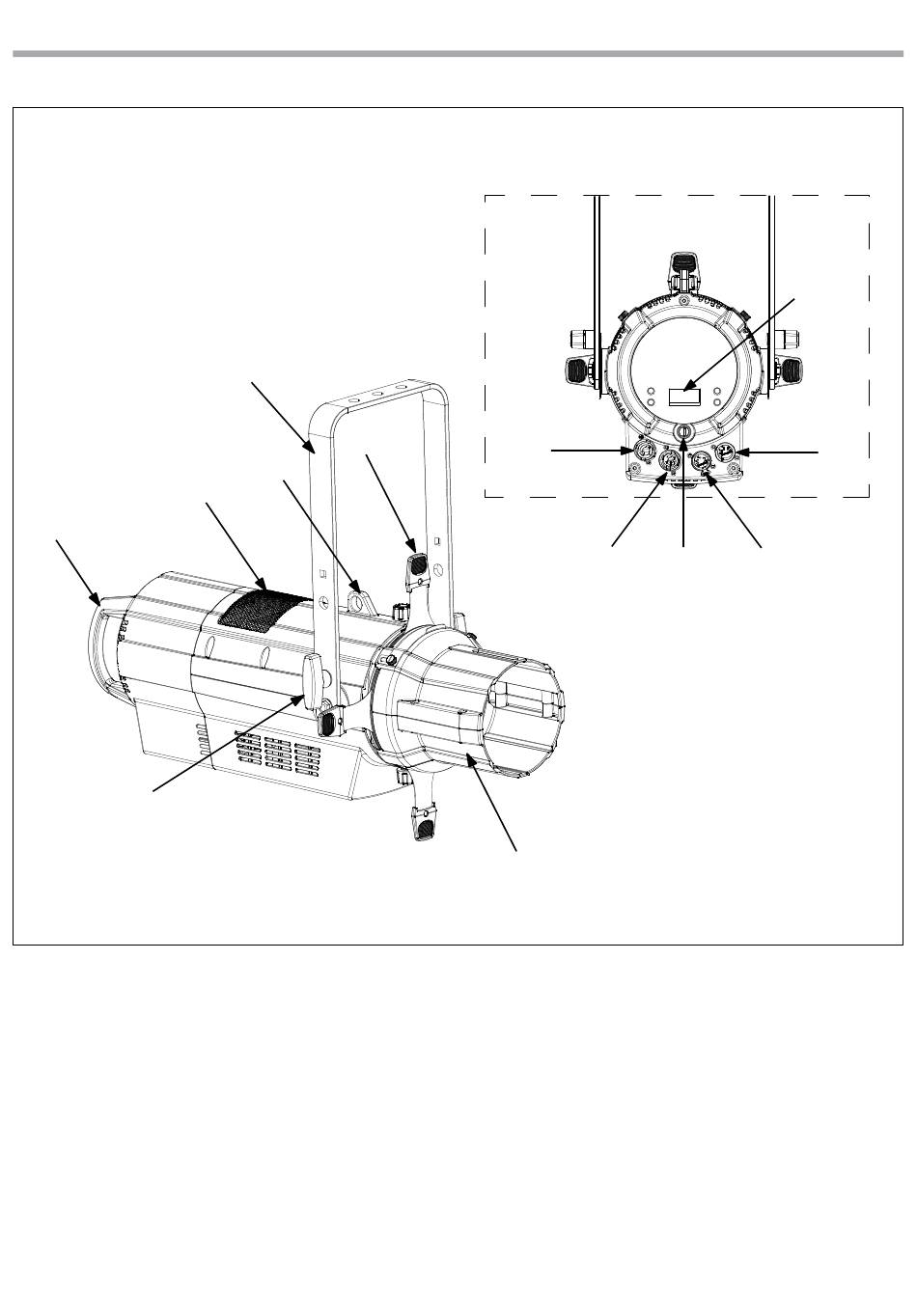

1.3 OPERATING ELEMENTS AND CONNECTIONS

3
2
1. MOUNTING BRACKET
2. LOCKING KNOB for the mounting bracket
3. HANDLE
4. ECLIPSEHDTWC
5. SAFETY EYE to attach safety cable.
6. SHUTTER
7. ECLIPSEMP - Aluminium middle part
8. FUSE OLDER in the event of breakage, always
replace the fuse with the same type and
rating (T3.15A).
9. CONTROL PANEL with display and 4 button
used to access the control panel functions
and manage them.
ECLIPSEHDTWC
1
6
5
4
Rear panel
10
11
7
10. POWER IN (PowerCON IN): for connection to a
socket (100-240V~/50-60Hz) via the supplied
mains cable.
11. POWER OUT (PowerCON OUT): connect to
supply power to the next unit.
12. DMX OUT (5-pole XLR):
1 = ground, 2 = DMX-, 3 = DMX+, 4 N/C, 5 N/C
13. DMX IN (5-pole XLR):
1 = ground, 2 = DMX-, 3 = DMX+, 4 N/C, 5 N/C
9
13
8 12
5
Fig.2
