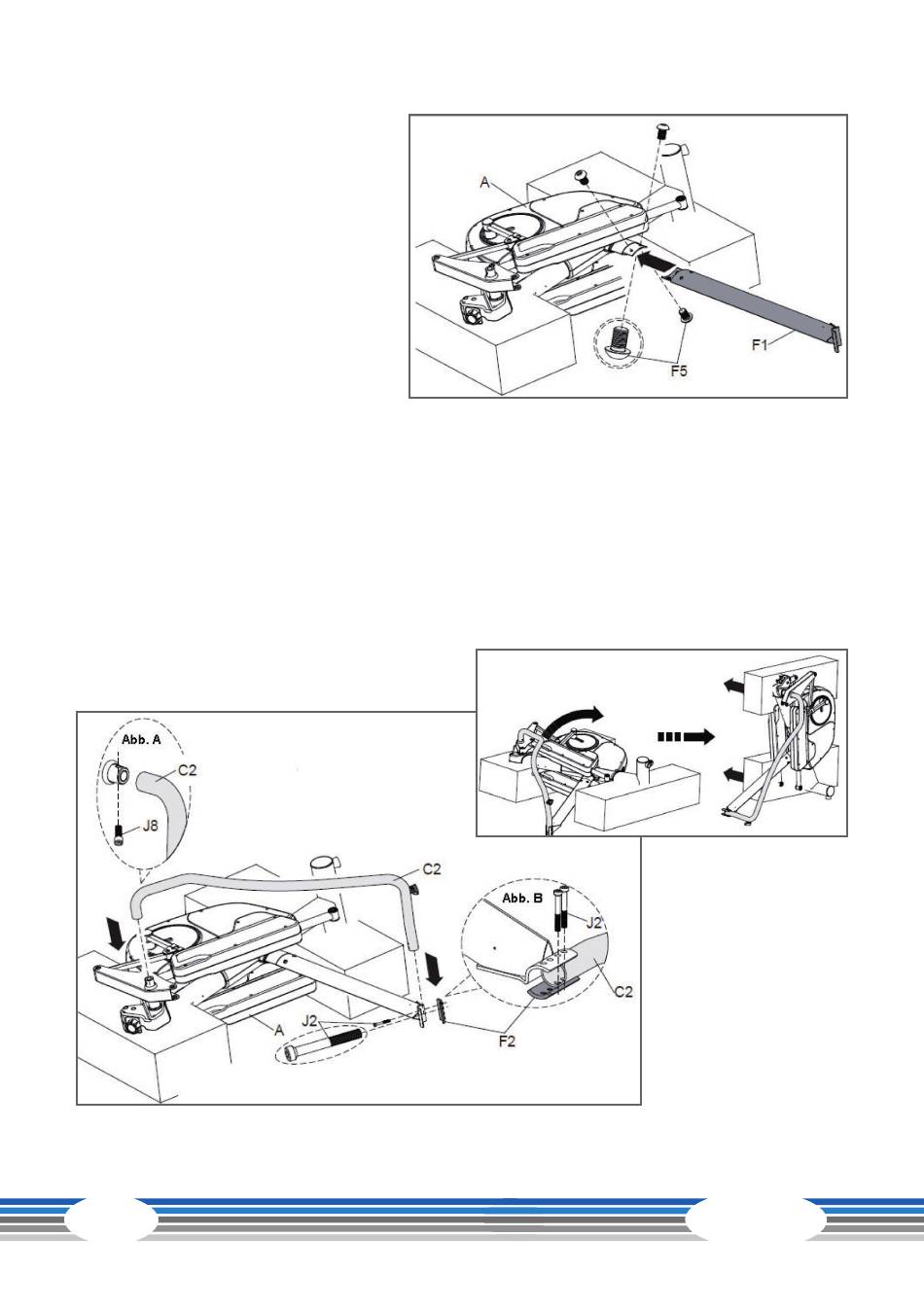

Step 1: Assembly of the main mast (F1)
(1) Loosen two screws (F5) from the main
frame (A) and two screws from the main
mast (F1).
(2) Connect the main mast (F1) with
the main frame (A) with the previously
loosened four screws (F5).
Note: Do not tighten the screws (F5)
completely yet.
Tool: 6mm Allen key
Step 2: Assembly of the right side bar (C2)
(1) Mount the right side bar (C2) on the main frame (A) with a screw (J8) on top (figure A) and two
screws (J2) with the holder (F2) on the bottom (figure B).
Note: Do not tighten the screws (J8 and J2) completely yet.
(2) Raise the main frame (A) with two people and remove the foam.
