Assembly Instructions - CARDIOSTRONG EX90 Assembly And Operating Instructions Manual

3.2

Assembly instructions

Before starting assembly, look carefully through the individual assembly steps shown and assemble
the equipment in the order indicated.
Caution while unpacking:
First lay the box flat so that you can lift the cover. Then take handles, side bars, pedal bars and the user
instructions out of the box.
Remove the upper foam cushion (1) and (2) and leave the main frame (A) and the lower foam cushion
(3) and (4) in the box until you are told to remove these in step 2 of the assembly instructions. After
this, take console, console mast as well as screws and tools out of the box.
Note: For safety reasons, the pedal bars may first be unlocked with the corresponding turning knob
when you are asked to do so at the end of the instructions.

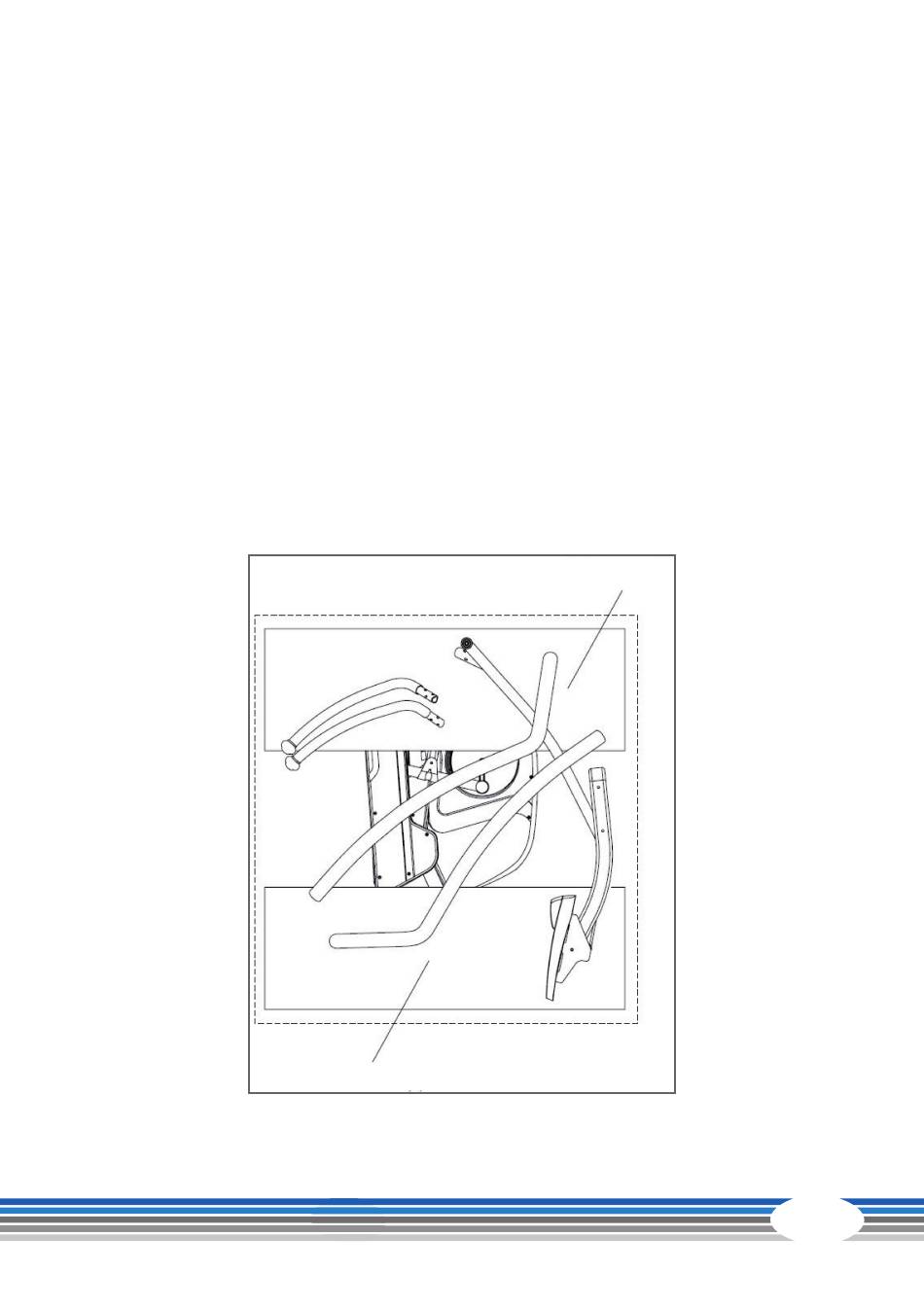

Foam (1)
Foam (2)
