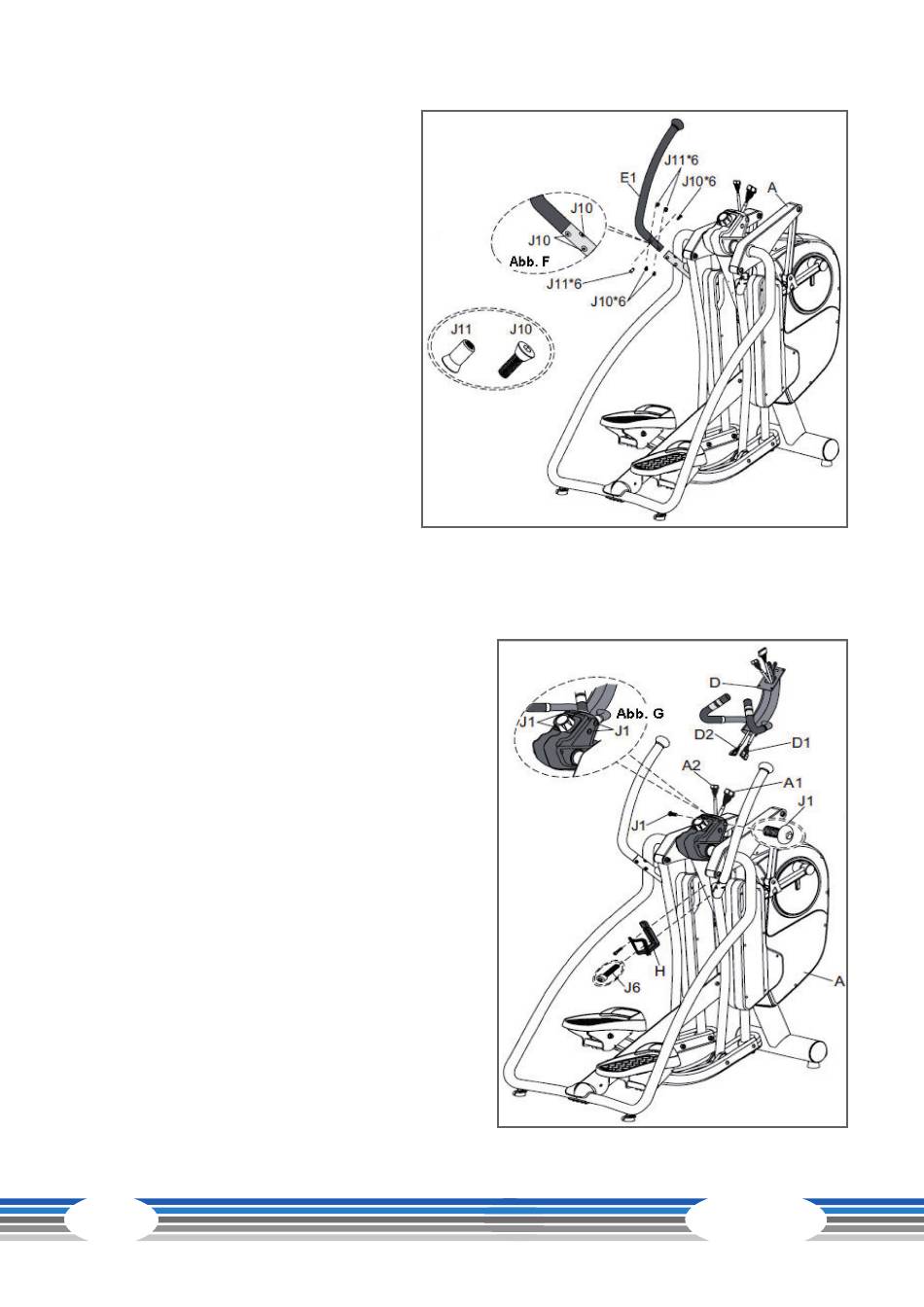

Step 5:
Assembly of the handles
(1) Loosen the six pre-mounted screws
(J10 and J11) from the left handle (E1).
(2) Connect the left handle (E1) with the
main frame (A) by tightening all screws
(J10 and J11) with two 6mm Allen keys;
see figure F.
(3) Repeat the process for the right handle
(E2).
Step 6:
Assembly of the console mast and the bottle holder
(1) Connect the cables (D1 and D2) from the console
mast (D) with the cables (A1 and A2) from the main
frame (A).
(2) Mount the console mast (D) on the main frame
(A) with two screws (J1) and two pre-mounted
screws; see figure G.
(3) Mount the bottle holder (H) on the main frame (A)
with two screws (J6).
