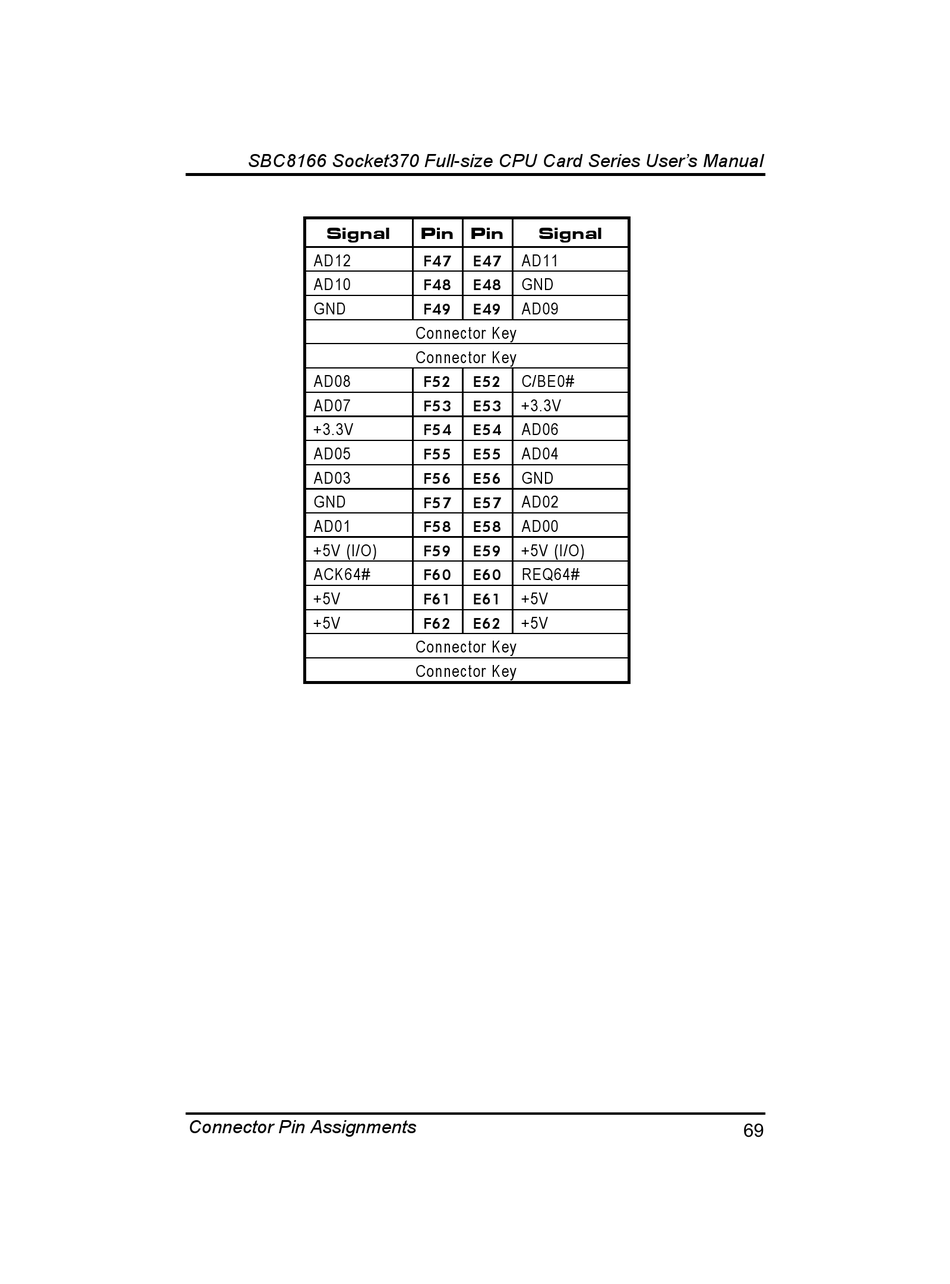

SBC8166 Socket370 Full-size CPU Card Series User's Manual
Signal
AD12
AD10
GND
AD08
AD07
+3.3V
AD05
AD03
GND
AD01
+5V (I/O)
ACK64#
+5V
+5V
Connector Pin Assignments
Pin Pin Signal
AD11
F47 E47
GND
F48 E48
AD09
F49 E49
Connector Key
Connector Key
C/BE0#
F52 E52
+3.3V
F53 E53
AD06
F54 E54
AD04
F55 E55
GND
F56 E56
AD02
F57 E57
AD00
F58 E58
+5V (I/O)
F59 E59
REQ64#
F60 E60
+5V
F61 E61
+5V
F62 E62
Connector Key
Connector Key
%,
