SBC8166 Socket370 Full-size CPU Card Series User's Manual
Signal
MEMCS16#
IOCS16#
IRQ10
IRQ11
IRQ12
IRQ15
IRQ14
DACK0#
DRQ0
DACK5#
DRQ5
DACK6#
DRQ6
DACK7#
DRQ7
+5V
MASTER#
GND
-12V
TCK
GND
TDO
+5V
+5V
INTB#
INTD#
REQ3#
REQ1#
GNT3#
GND
GND

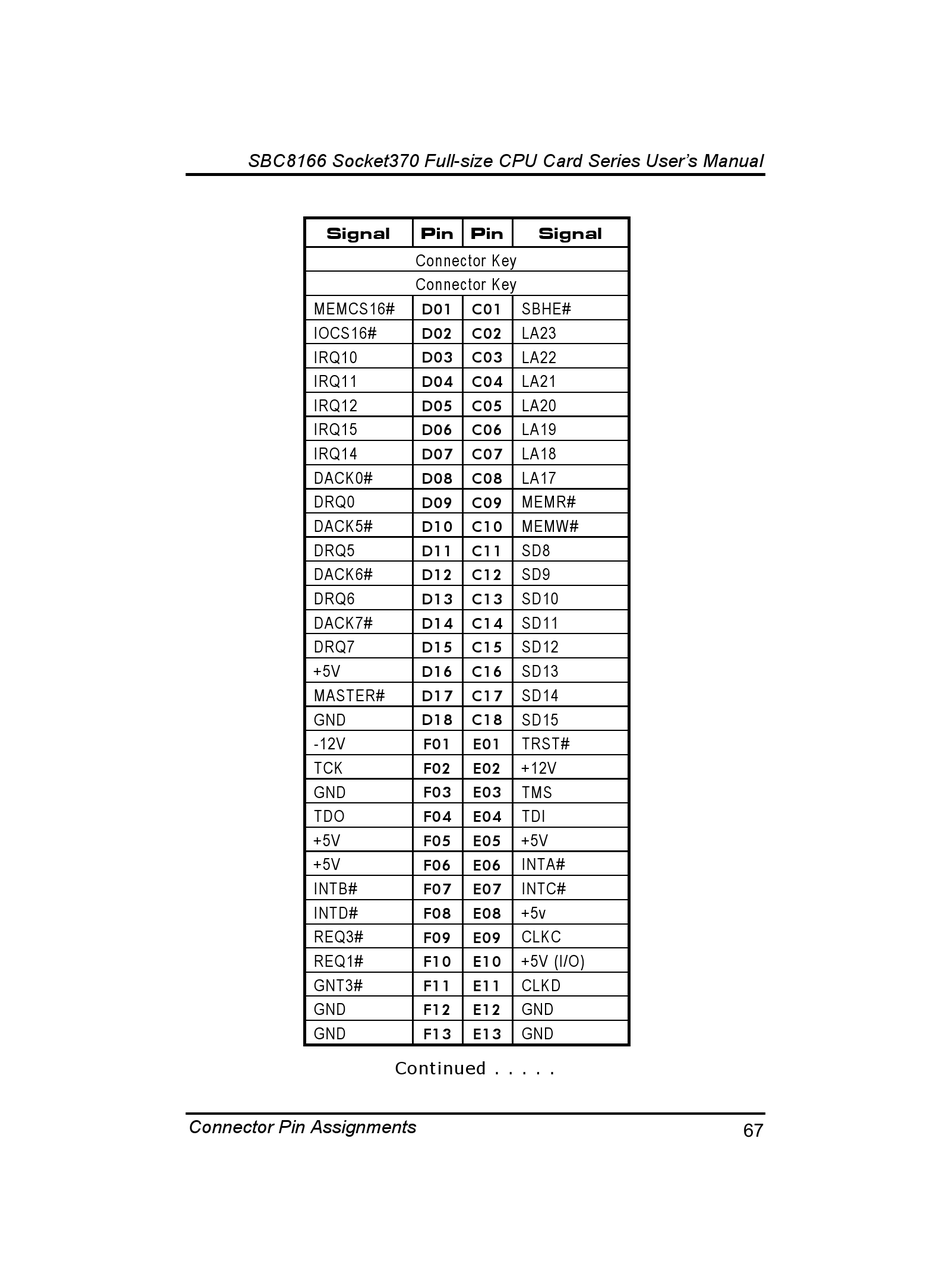

Connector Pin Assignments
Pin Pin Signal
Connector Key
Connector Key
SBHE#
D01 C01
LA23
D02 C02
LA22
D03 C03
LA21
D04 C04
LA20
D05 C05
LA19
D06 C06
LA18
D07 C07
LA17
D08 C08
MEMR#
D09 C09
MEMW#
D10 C10
SD8
D11 C11
SD9
D12 C12
SD10
D13 C13
SD11
D14 C14
SD12
D15 C15
SD13
D16 C16
SD14
D17 C17
SD15
D18 C18
TRST#
F01 E01
+12V
F02 E02
TMS
F03 E03
TDI
F04 E04
+5V
F05 E05
INTA#
F06 E06
INTC#
F07 E07
+5v
F08 E08
CLKC
F09 E09
+5V (I/O)
F10 E10
CLKD
F11 E11
GND
F12 E12
GND
F13 E13
Continued . . . . .
%-
