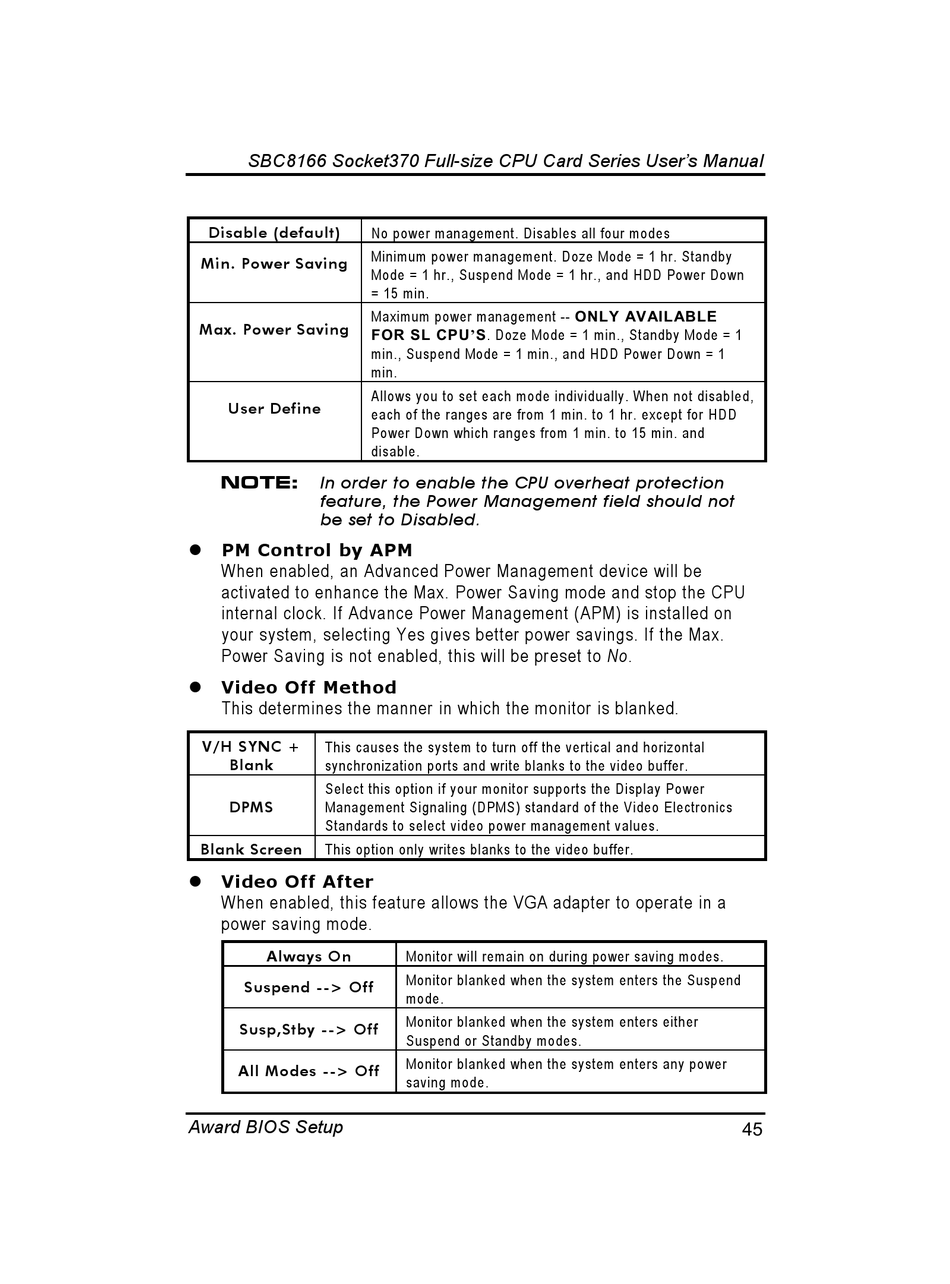

SBC8166 Socket370 Full-size CPU Card Series User's Manual
Disable (default)
Min. Power Saving
Max. Power Saving
User Define
NOTE:
In order to enable the CPU overheat protection
feature, the Power Management field should not
be set to Disabled.
PM Control by APM
When enabled, an Advanced Power Management device will be
activated to enhance the Max. Power Saving mode and stop the CPU
internal clock. If Advance Power Management (APM) is installed on
your system, selecting Yes gives better power savings. If the Max.
Power Saving is not enabled, this will be preset to No.

Video Off Method

This determines the manner in which the monitor is blanked.
V/H SYNC +
This causes the system to turn off the vertical and horizontal
Blank synchronization ports and write blanks to the video buffer.
Select this option if your monitor supports the Display Power
DPMS
Management Signaling (DPMS) standard of the Video Electronics
Standards to select video power management values.
Blank Screen This option only writes blanks to the video buffer.
Video Off After
When enabled, this feature allows the VGA adapter to operate in a
power saving mode.
Always On
Suspend --> Off
Susp,Stby --> Off
All Modes --> Off
Award BIOS Setup
No power management. Disables all four modes
Minimum power management. Doze Mode = 1 hr. Standby
Mode = 1 hr., Suspend Mode = 1 hr., and HDD Power Down
= 15 min.
Maximum power management --


. Doze Mode = 1 min., Standby Mode = 1
min., Suspend Mode = 1 min., and HDD Power Down = 1
min.
Allows you to set each mode individually. When not disabled,
each of the ranges are from 1 min. to 1 hr. except for HDD
Power Down which ranges from 1 min. to 15 min. and
disable.
Monitor will remain on during power saving modes.
Monitor blanked when the system enters the Suspend
mode.
Monitor blanked when the system enters either
Suspend or Standby modes.
Monitor blanked when the system enters any power
saving mode.
