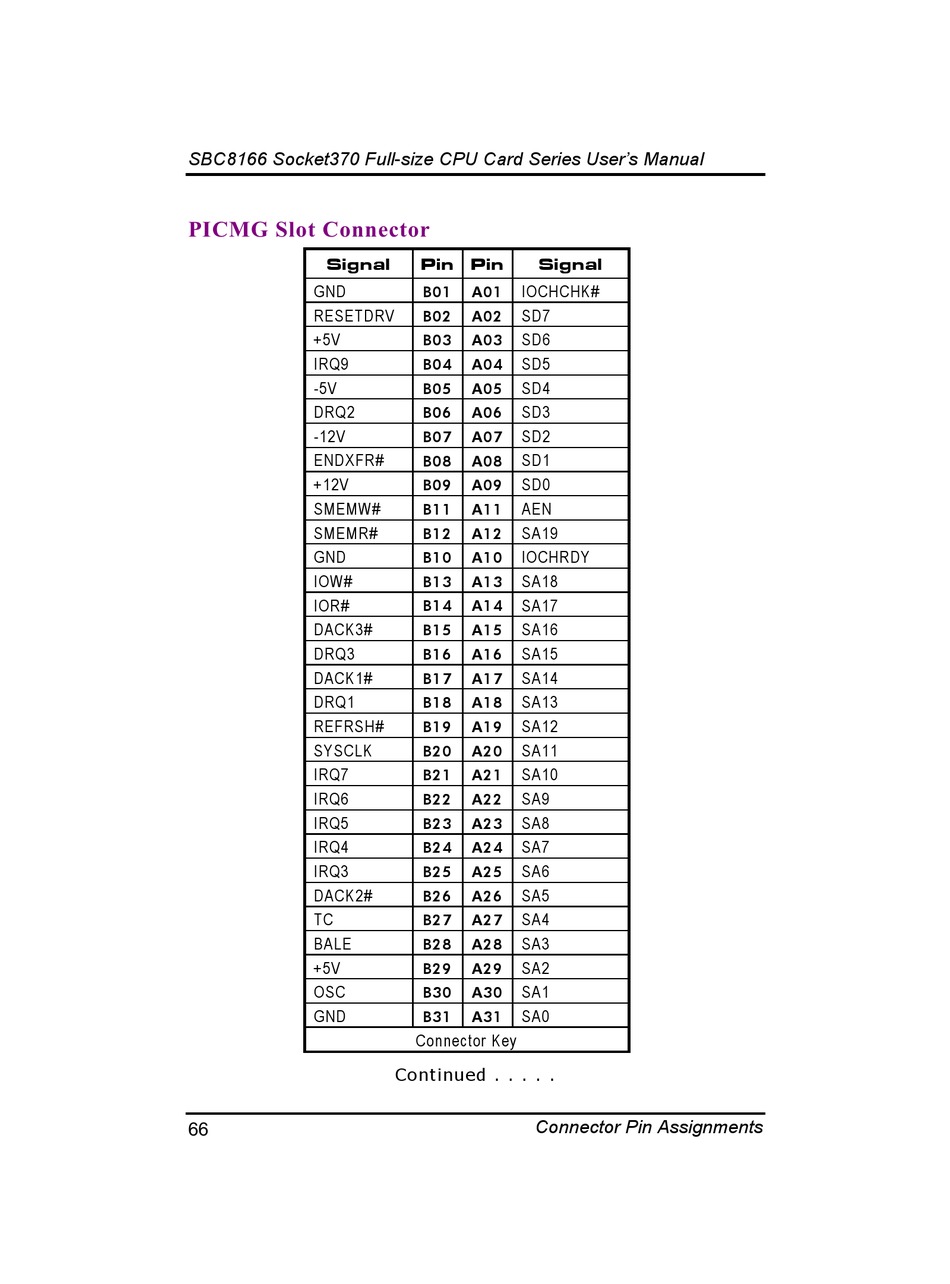

AXIOMTEK SBC8166 Socket370 Series User Manual page 74

SBC8166 Socket370 Full-size CPU Card Series User's Manual
"!%
Signal
GND
RESETDRV
+5V
IRQ9
-5V
DRQ2
-12V
ENDXFR#
+12V
SMEMW#
SMEMR#
GND
IOW#
IOR#
DACK3#
DRQ3
DACK1#
DRQ1
REFRSH#
SYSCLK
IRQ7
IRQ6
IRQ5
IRQ4
IRQ3
DACK2#
TC
BALE
+5V
OSC
GND
%%
Pin Pin Signal
IOCHCHK#
B01 A01
SD7
B02 A02
SD6
B03 A03
SD5
B04 A04
SD4
B05 A05
SD3
B06 A06
SD2
B07 A07
SD1
B08 A08
SD0
B09 A09
AEN
B11 A11
SA19
B12 A12
IOCHRDY
B10 A10
SA18
B13 A13
SA17
B14 A14
SA16
B15 A15
SA15
B16 A16
SA14
B17 A17
SA13
B18 A18
SA12
B19 A19
SA11
B20 A20
SA10
B21 A21
SA9
B22 A22
SA8
B23 A23
SA7
B24 A24
SA6
B25 A25
SA5
B26 A26
SA4
B27 A27
SA3
B28 A28
SA2
B29 A29
SA1
B30 A30
SA0
B31 A31
Connector Key
Continued . . . . .
Connector Pin Assignments
