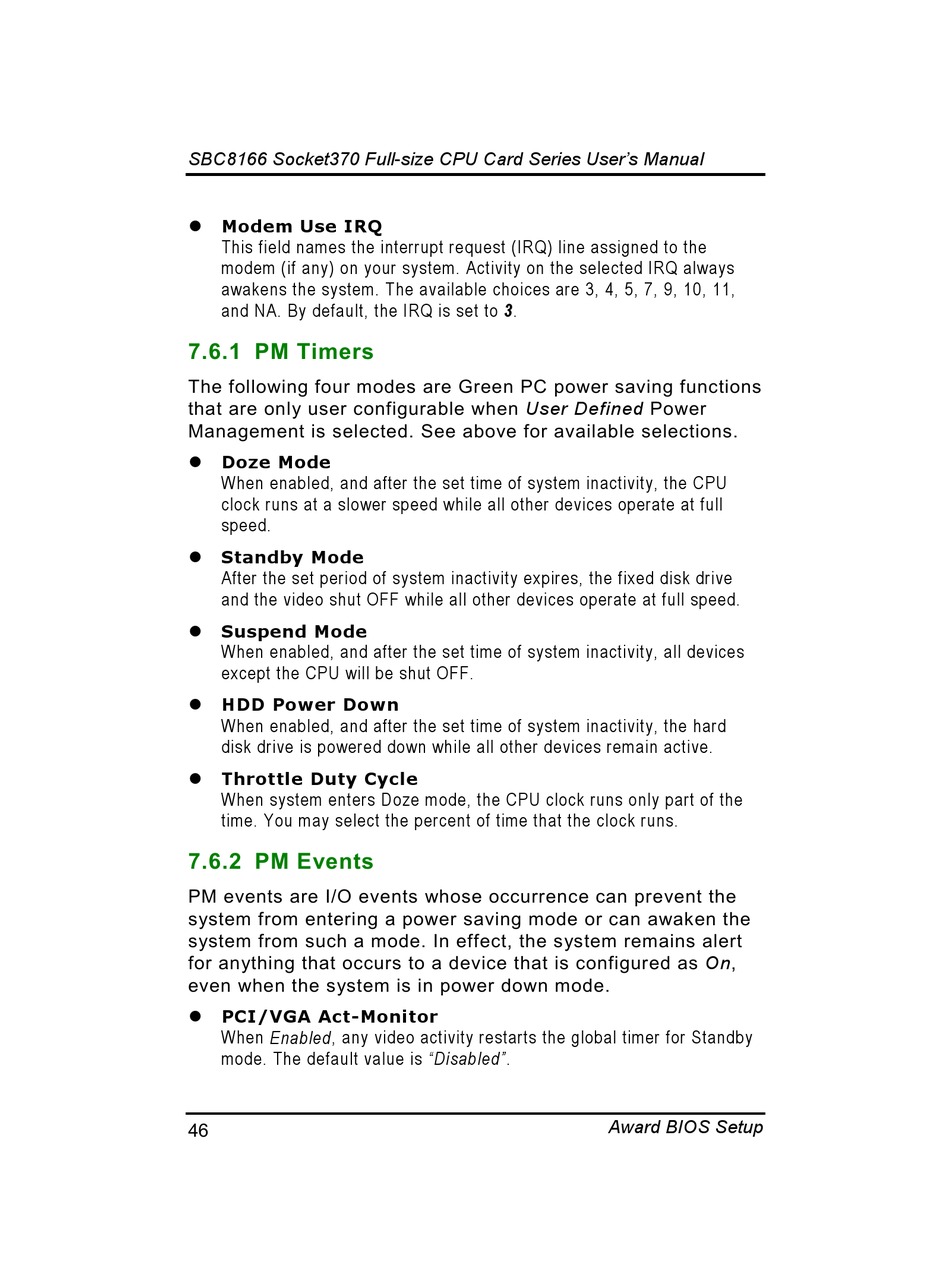

SBC8166 Socket370 Full-size CPU Card Series User's Manual
Modem Use IRQ
This field names the interrupt request (IRQ) line assigned to the
modem (if any) on your system. Activity on the selected IRQ always
awakens the system. The available choices are 3, 4, 5, 7, 9, 10, 11,
and NA. By default, the IRQ is set to 3.
! 9
       F &#
         User Defined &
>       "

Doze Mode

When enabled, and after the set time of system inactivity, the CPU
clock runs at a slower speed while all other devices operate at full
speed.

Standby Mode

After the set period of system inactivity expires, the fixed disk drive
and the video shut OFF while all other devices operate at full speed.

Suspend Mode

When enabled, and after the set time of system inactivity, all devices
except the CPU will be shut OFF.

HDD Power Down

When enabled, and after the set time of system inactivity, the hard
disk drive is powered down while all other devices remain active.
Throttle Duty Cycle
When system enters Doze mode, the CPU clock runs only part of the
time. You may select the percent of time that the clock runs.
! 27
&>   ./


               On

PCI/VGA Act-Monitor
When Enabled, any video activity restarts the global timer for Standby
mode. The default value is "Disabled".
(%
Award BIOS Setup
