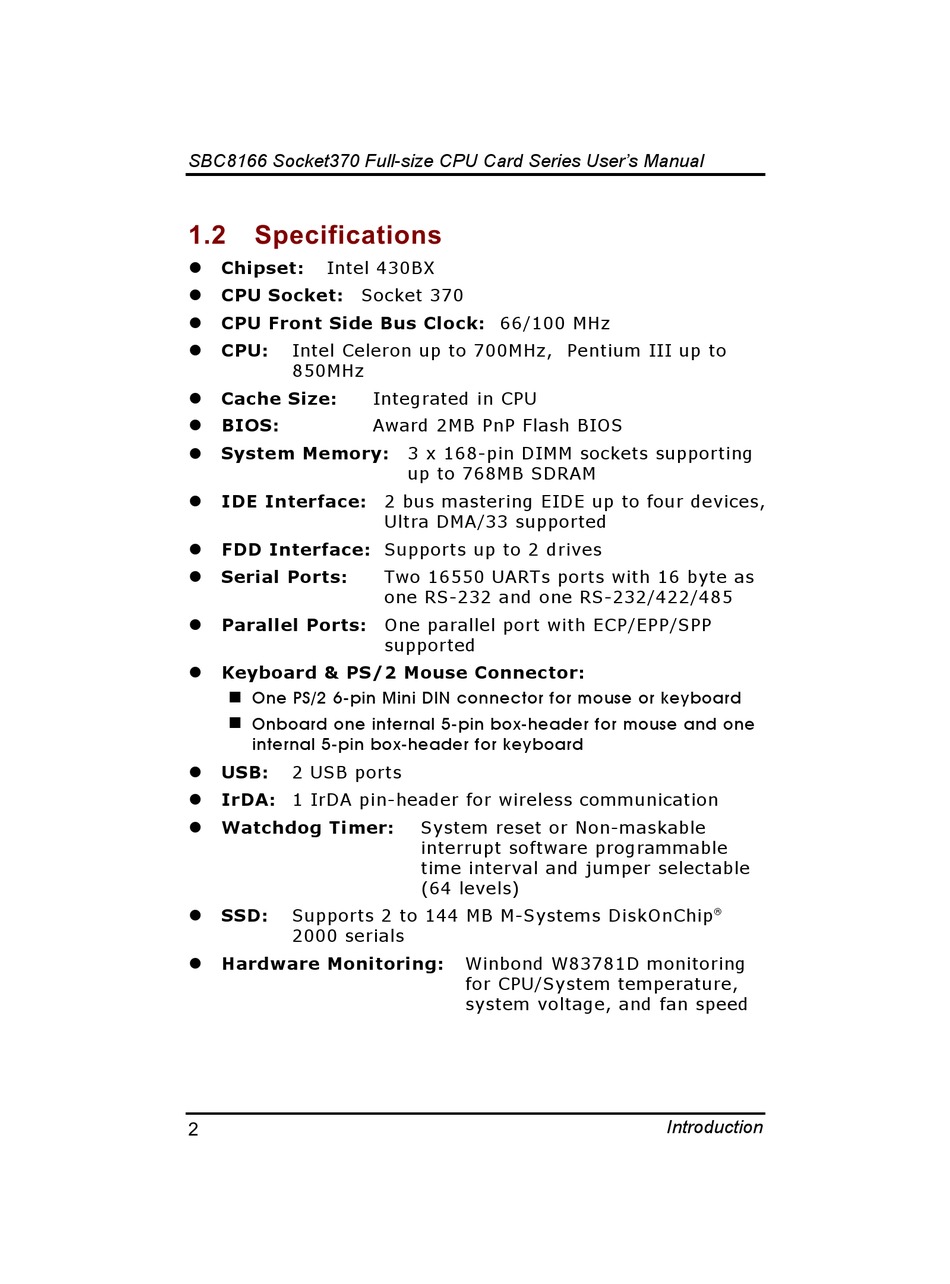

SBC8166 Socket370 Full-size CPU Card Series User's Manual
"
!#
Chipset: Intel 430BX
CPU Socket: Socket 370
CPU Front Side Bus Clock: 66/100 MHz
CPU: Intel Celeron up to 700MHz, Pentium III up to
850MHz
Cache Size:
BIOS:
System Memory:
IDE Interface:
FDD Interface: Supports up to 2 drives
Serial Ports:
Parallel Ports:
Keyboard & PS/2 Mouse Connector:
One PS/2 6-pin Mini DIN connector for mouse or keyboard
Onboard one internal 5-pin box-header for mouse and one
internal 5-pin box-header for keyboard
USB: 2 USB ports
IrDA: 1 IrDA pin-header for wireless communication
Watchdog Timer:
SSD: Supports 2 to 144 MB M-Systems DiskOnChip
2000 serials
Hardware Monitoring:
6
Integrated in CPU
Award 2MB PnP Flash BIOS
3 x 168-pin DIMM sockets supporting
up to 768MB SDRAM
2 bus mastering EIDE up to four devices,
Ultra DMA/33 supported
Two 16550 UARTs ports with 16 byte as
one RS-232 and one RS-232/422/485
One parallel port with ECP/EPP/SPP
supported
System reset or Non-maskable
interrupt software programmable
time interval and jumper selectable
(64 levels)
Winbond W83781D monitoring
for CPU/System temperature,
system voltage, and fan speed

Introduction
