SBC8166 Socket370 Full-size CPU Card Series User's Manual
" " ' !
(
 " #$!%% "





   8


    8

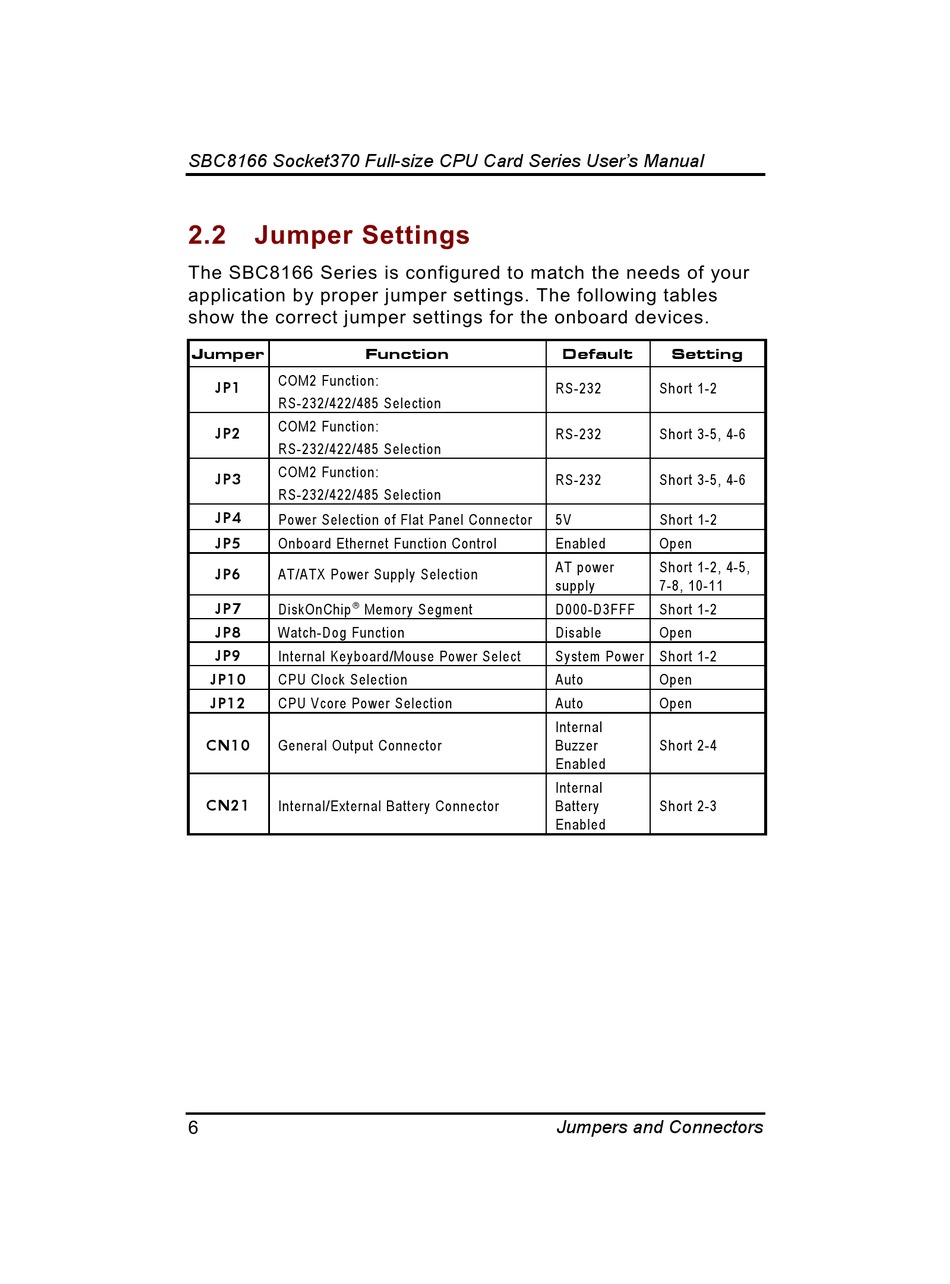

Jumper Function
COM2 Function:
JP1
RS-232/422/485 Selection
COM2 Function:
JP2
RS-232/422/485 Selection
COM2 Function:
JP3
RS-232/422/485 Selection
JP4
Power Selection of Flat Panel Connector
JP5 Onboard Ethernet Function Control
JP6 AT/ATX Power Supply Selection
JP7
DiskOnChip  Memory Segment
JP8
Watch-Dog Function
JP9
Internal Keyboard/Mouse Power Select
JP10
CPU Clock Selection
JP12 CPU Vcore Power Selection
CN10 General Output Connector
CN21
Internal/External Battery Connector
%
Default Setting
RS-232 Short 1-2
RS-232 Short 3-5, 4-6
RS-232 Short 3-5, 4-6
5V Short 1-2
Enabled Open
AT power Short 1-2, 4-5,
supply 7-8, 10-11
D000-D3FFF Short 1-2
Disable Open
System Power Short 1-2
Auto Open
Auto Open
Internal
Buzzer Short 2-4
Enabled
Internal
Battery Short 2-3
Enabled
Jumpers and Connectors
