AXIOMTEK SHB250R User Manual
  1. Manuals
  2. Brands
  3. AXIOMTEK Manuals
  4. Computer Hardware
  5. SHB250R
  6. User manual

AXIOMTEK SHB250R User Manual

Intel lga1151 coffee lake refresh processor picmg 1.3 half-size board
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

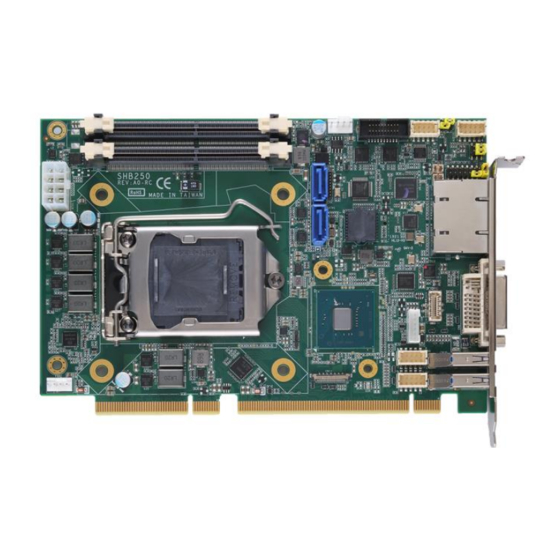

SHB250R
®
Intel
LGA1151 Coffee Lake Refresh
processor
PICMG 1.3 Half-size board
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHB250R and is the answer not in the manual?

Questions and answers

Related Manuals for AXIOMTEK SHB250R

Summary of Contents for AXIOMTEK SHB250R

  • Page 1 SHB250R ® Intel LGA1151 Coffee Lake Refresh processor PICMG 1.3 Half-size board User’s Manual...

  • Page 2: Disclaimers

    Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Esd Precautions

     Wear a wrist-grounding strap, available from most electronic component stores, when handling boards and components. Trademarks Acknowledgments Axiomtek is a trademark of Axiomtek Co., Ltd. ® Windows is a trademark of Microsoft Corporation. AMI is trademark of American Megatrend Inc.

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ..........................ii ESD Precautions ........................iii Chapter 1 Introduction ....................... 1 Features ........................1 Specifications ........................ 2 Utilities Supported......................4 Chapter 2 Board Layout and Pin Assignments ............... 5 Board Dimensions and Fixing Holes ................5 Board Layout ........................
  • Page 5 Chapter 5 AMI BIOS Setup Utility ................... 33 Starting ........................33 Navigation Keys ......................34 Main Menu ........................35 Advanced Menu ......................36 Chipset Menu ......................53 Security Menu ......................62 Boot Menu ........................63 Save & Exit Menu ....................... 64 Appendix A Watchdog Timer ....................
  • Page 6 This page is intentionally left blank.

  • Page 7: Chapter 1 Introduction

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Chapter 1 Introduction ® The SHB250R PICMG v1.3 Half-size Single Board Computer supports an LGA1151 socket ® for Intel Core i7/ i5/ i3 desktop processors with 14nm technology and transfer rate 2400/ ®...

  • Page 8: Specifications

    ®  Integrated Intel HD graphics supporting DVI-I  DVI/VGA: Max. resolution is 1920x1200  Internal DP1.4 Connector: Max resolution is 4096x2304. Must use with Axiomtek DP  Ethernet ® ®  LAN1 / LAN2: Intel i219LM with iAMT(H310 not support) / Intel...
  • Page 9 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  Watchdog Timer  1~255 seconds or minutes; up to 255 levels  Power Management  ACPI(Advanced Configuration and Power Interface)  Expansion Interface  One PCIe x16, PCI Experss* 3.0 Port via SHB connector-A & B ...

  • Page 10: Utilities Supported

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Utilities Supported ®  Intel Q370/H310/C246 utility and drivers  Graphic drivers  Audio utility and drivers  Ethernet utility and drivers  RAID utility  iAMT utility and drivers Introduction...

  • Page 11: Board Layout And Pin Assignments

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Chapter 2 Board Layout and Pin Assignments Board Dimensions and Fixing Holes Board Layout and Pin Assignments...

  • Page 12: Board Layout

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Board Layout Top Side Board Layout and Pin Assignments...
  • Page 13 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Button Side Board Layout and Pin Assignments...

  • Page 14: Jumper Settings

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Jumper Settings Properly configure jumper settings on the SHB250R to meet your application purpose. Below you can find a summary table of all jumpers and onboard default settings. Proper jumper settings configure the SHB250R to meet your application purpose. We are herewith listing a summary table of all jumpers and default settings for onboard devices, respectively.

  • Page 15: Restore Bios Optimal Defaults (Jp1)

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board 2.3.1 Restore BIOS Optimal Defaults (JP1) Put jumper clip to pin 3-5 for a few seconds then move it back to pin 1-1. Doing this procedure can restore BIOS optimal defaults. Function...

  • Page 16: Connectors

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Connectors Connectors connect this board with other parts of the system. Loose or improper connection might cause problems. Make sure all connectors are properly and firmly connected. Here is a summary table shows you all connectors on the board.

  • Page 17: Digital I/O Connector (Cn1)

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board 2.4.1 Digital I/O Connector (CN1) The board is equipped with an 8-channel digital I/O connector that meets requirements for a system customary automation control which is compliant with CST Master Electronic CSI-2211-101R. The digital I/O can be configured to control cash drawers and sense warning signals from an Uninterrupted Power System (UPS), or perform store security control.

  • Page 18: Front Panel Connector (Cn3)

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board 2.4.3 Front Panel Connector (CN3) Signal PWRLED+ EXT SPK- Buzzer PWRLED- N.C. N.C. EXT SPK+ PWRSW- PWRSW+ HW RST- HW RST+ HDDLED- HDDLED+  Power LED This 3-pin connector denoted as Pin 1 and Pin 5 connects the system power LED indicator to such a switch on the case.

  • Page 19: Internal Usb 3.1 Gen2 Connector (Cn7)

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board 2.4.4 Internal USB 3.1 Gen2 Connector (CN7) The CN7 is an internal box connector for installing versatile USB 3.1 Gen2 compliant peripherals with LOTES AUSB0418-P001A. Signal Signal SSTX3+ SSTX4- SSTX3- SSTX4+ SSRX3+...

  • Page 20: Internal Keyboard And Mouse Connectors (Cn8)

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board 2.4.5 Internal Keyboard and mouse Connectors (CN8) The board comes with keyboard and mouse interfaces which is compliant with CATCH 1192-7XX-XXX(GP). Signal Mouse Data Mouse Clock Keyboard Data Keyboard Clock 5VSBY 2.4.6 Internal USB 2.0 Connectors (CN9, CN12)

  • Page 21: Display Port 1.4 Connector (Cn11)

    2.4.7 Display Port 1.4 Connector (CN11) The CN11 is an internal box connector which is defined by Axiomtek for installing Display Port 1.4 Connector peripherals with KEL USL00-30L. The Display Port 1.4 Connector peripherals are available as an optional kit.

  • Page 22: Atx Power Connector (Atx1)

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board 2.4.8 ATX Power Connector (ATX1) Steady and sufficient power can be supplied to all components on the board by connecting the power connector. Please make sure all components and devices are properly installed before connecting the power connector.

  • Page 23: Intel ® Hd Audio Digital Header (Audio1)

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board ® 2.4.10 Intel HD Audio Digital Header (AUDIO1) This is a pin header which is compliant with CST Master Electronic CSI-2211-101R. Pin Signal Pin Signal MIC IN LINE_IN_L LINE_IN_R LINE_OUT_L LINE_OUT_R 2.4.11 Ethernet Ports (LAN1 and LAN2) The board has two RJ-45 connectors;...

  • Page 24: Serial Ata Connectors (Sata1~Sata2)

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board 2.4.12 Serial ATA Connectors (SATA1~SATA2) These Serial Advanced Technology Attachment (Serial ATA or SATA) connectors are for high-speed SATA interfaces. They are computer bus interfaces for connecting to devices such as hard disk drives.

  • Page 25: Com Connectors (Com1~Com2)

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board 2.4.13 COM Connectors (COM1~COM2) This pin header which is compliant with CATCH 1167-010-20MR. The COM port supports RS-232/RS-422/RS-485 mode operation, see table below for its pin assignments. You can change the transmission mode via BIOS setting.

  • Page 26: 2242 Key M

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board 2.4.14 M.2 2242 Key M The M.2 2242 Key M. Signal Signal Signal Signal +3.3V +3.3V PERn3 PERp3 LED_1# PETn3 +3.3V PETp3 +3.3V +3.3V PERn2 +3.3V PERp2 PETn2 PETp2 PERn1 PERp1 PETn1...

  • Page 27: Chapter 3 Hardware Installation

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Chapter 3 Hardware Installation Installing the Processor The LGA1151 processor socket comes with a cover to protect the processor. Please install the processor into the CPU socket step by step as below: Note: Make sure that you install the correct CPU designed for LGA1151 socket only.
  • Page 28 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Step3 Processor installation:  Lift processor package from shipping media by grasping the substrate edges.  Scan the processor package gold pads for any presence of foreign material. If necessary, the gold pads can be wiped clean with a soft lint-free cloth and isopropyl alcohol.
  • Page 29 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Step4 Close the socket (see image below):  Gently lower the load plate.  Make sure load plate's front edge slides under the shoulder screw cap as the lever is lowered. ...

  • Page 30: Installing The Memory

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Installing the Memory The board supports two 260-pin DDR4 SO-DIMM memory sockets with maximum memory capacity up to 64GB. Please follow steps below to install the memory modules:  Push down latches on each side of the DIMM socket.

  • Page 31: Chapter 4 Hardware Description

    CPU from damages. BIOS The SHB250R Series uses AMI Plug and Play BIOS with a single 64Mbit SPI Flash. System Memory The SHB250R Series supports two 260-pin DDR4 SODIMM sockets for a maximum memory of 64GB DDR4 SDRAMs.

  • Page 32: I/O Port Address Map

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board I/O Port Address Map ® The Intel Core i7 / Core i5 / Core i3 processors communicate via I/O ports. Total 1KB port addresses are available for assigning to other devices via I/O expansion cards.
  • Page 33 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Hardware Description...

  • Page 34: Interrupt Controller (Irq) Map

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Interrupt Controller (IRQ) Map The interrupt controller (IRQ) mapping list is shown as follows: Hardware Description...
  • Page 35 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Hardware Description...
  • Page 36 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Hardware Description...

  • Page 37: Memory Map

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Memory Map The memory mapping list is shown as follows: Hardware Description...
  • Page 38 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board This page is intentionally left blank. Hardware Description...

  • Page 39: Ami Bios Setup Utility

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Chapter 5 AMI BIOS Setup Utility The AMI UEFI BIOS provides users with a built-in setup program to modify basic system configuration. All configured parameters are stored in a flash chip to save the setup information whenever the power is turned off.

  • Page 40: Navigation Keys

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Navigation Keys The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process. These keys include <F1>, <F2>, <Enter>, <ESC>, <Arrow>...

  • Page 41: Main Menu

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Main Menu When you first enter the setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as described below.

  • Page 42: Advanced Menu

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Advanced Menu The Advanced menu also allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ►...
  • Page 43 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  ACPI Settings ACPI Sleep State Select the ACPI (Advanced Configuration and Power Interface) sleep state. Configuration options are Suspend Disabled and S3 (Suspend to RAM). The default is S3 (Suspend to RAM);...
  • Page 44 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  Trusted Computing This screen provides function for specifying the Trusted Computing. Security Device Support Enable or disable BIOS support for the security device. The default setting is Disabled. TPM State Once the Security Device Support is enabled, TPM (Trusted Platform Module) can be used by the operating system.
  • Page 45 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  Platform Misc Configuration This screen allows you to set Platform Mics Configuration. Native PCIE Enable Bit - PCIe Native * control\n 0 - ~ Hot Plug\n 1 - SHPC Native Hot Plug control\n 2 - ~ Power Management Events\n 3 - PCIe Advanced Error Reporting control\n 4 - PCIe Capability Structure control\n 5 - Latency Tolerance Reporting control.
  • Page 46 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  CPU Configuration This screen shows CPU information, and you can change the value of the selected option. Hyper-threading Enable or disable Hyper-threading Technology, which allows a single physical processor to multitask as multiple logical processors. When disabled, only one thread per enabled core is enabled.
  • Page 47 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Intel (R) SpeedStep(tm) Allows more than two frequency ranges to be supported. Turbo Mode Enable/Disable processor Turbo Mode (requires EMTTM enabled too). AUTO means enabled, unless max turbo ratio is bigger than 16 - SKL A0 W/A.
  • Page 48 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  SATA And RST Configuration During system boot up, the BIOS automatically detects the presence of SATA devices. In the SATA Configuration menu, you can see the currently installed hardware in the SATA ports.
  • Page 49 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  PCH-FW Configuration This screen displays ME Firmware information. AMI BIOS Setup Utility...
  • Page 50 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  AMT Configuration Use this screen to configure AMT parameters. AMT BIOS Features Enable or disable Active Management Technology BIOS features. The default is Enabled. AMI BIOS Setup Utility...
  • Page 51 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  F81803 Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 52 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Serial Port 1~2 Configuration Use these items to set parameters related to serial port 1~2. AMI BIOS Setup Utility...
  • Page 53 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  Hardware Monitor This screen monitors hardware health status. This screen displays the temperature of system and CPU, cooling fans speed in RPM and system voltages (VCC_CPU, DDR, +12V, +5V and +3.3V).
  • Page 54 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  USB Configuration USB Devices Display all detected USB devices. Legacy USB Support Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. XHCI Hand-off This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver.
  • Page 55 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  PCI Subsystem settings This screen allows you to set PCI Subsystem mode. PCI Latency Timer Value to be programmed into PCI Latency Timer Register. VGA Palette Snoop Enables or Disables VGA Palette Registers Snooping.
  • Page 56 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  CSM Configuration This screen displays CSM information. CSM Support Enabled / Disable CSM Support. GateA20 Active UPON REQUEST - GA20 can be disabled using BIOS services. ALWAYS - do not allow disabling GA20;...
  • Page 57 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  Serial Port Configuration This screen allows you to set Serial Port Configuration. AMI BIOS Setup Utility...
  • Page 58 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  Device Configuration AMI BIOS Setup Utility...

  • Page 59: Chipset Menu

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ►...
  • Page 60 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  System Agent (SA) Configuration This screen allows users to configure System Agent (SA) parameters. For items marked with “”, please press <Enter> for more options. Graphics Configuration Open sub menu for parameters related to graphics configuration.
  • Page 61 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  Graphics Configuration Primary IGFX Boot Display Select the video device which will be activated during POST (Power-On Self Test). The default is Auto. Internal Graphics Keep IGFX enabled based on the setup options.
  • Page 62 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  Memory Configuration This screen shows system memory information.  PEG Port Configuration This screen shows PEG Port/POE Port feature information. AMI BIOS Setup Utility...
  • Page 63 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Max Link Speed Configure PEG 0:1:0 Max Speed. Detect Non-Compliance Device Detect Non-Compliance PCI Express Device in PEG. AMI BIOS Setup Utility...
  • Page 64 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  PCH-IO Configuration This screen allows you to set PCH parameters. PCH LAN Controller Enable or disable onboard PCH LAN controller. Wake on LAN Enable Enable or disable integrated LAN to wake the system.
  • Page 65 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  USB Configuration This screen shows USB configuration. XHCI Disable Compliance Mode Options to disable Compliance Mode. Default is FALSE to not disable Compliance Mode. Set TRUE to disable Compliance Mode. AMI BIOS Setup Utility...
  • Page 66 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board  PCI Express Configuration This screen shows PCI Express configuration. AMI BIOS Setup Utility...
  • Page 67 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board PCIe Speed Configure PCIe Speed. ASPM Set the ASPM Level:\nForce L0s - Force all links to L0s State\nAUTO - BIOS auto configure\nDISABLE - Disables ASPM. Detect Non-Compliance Device Detect Non-Compliance PCI Express Device. If enable, it will take more time at POST time.

  • Page 68: Security Menu

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Security Menu The Security menu allows users to change the security settings for the system.  Administrator Password This item indicates whether an administrator password has been set (installed or uninstalled). ...

  • Page 69: Boot Menu

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Boot Menu The Boot menu allows users to change boot options of the system.  Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. ...

  • Page 70: Save & Exit Menu

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values.  Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and return to Main Menu.
  • Page 71 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board to save changes.  Discard Changes Select this option to quit Setup without making any permanent changes to the system configuration. Select Discard Changes from the Save & Exit menu and press <Enter>.
  • Page 72 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board This page is intentionally left blank. AMI BIOS Setup Utility...

  • Page 73: Appendix A Watchdog Timer

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Appendix A Watchdog Timer About Watchdog Timer After the system stops working for a while, it can be auto-reset by the watchdog timer. The integrated watchdog timer can be set up in the system reset mode by program.
  • Page 74 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board This page is intentionally left blank. Watchdog Timer...

  • Page 75: Appendix B Digital I/O

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Appendix B Digital I/O Digital I/O Software Programming  I2C to GPIO PCA9554PW GPIO[3:0] is input, GPIO[7:4] is output.  I2C address: 0b0100100x.  IOBASE: 0xF040  Registers: Command byte Command Protocol...
  • Page 76 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Register 1: Output port register. This register reflects the outgoing logic levels of the pins defined as outputs by Register 3. Bit values in this register have no effect on pins defined as inputs. Reads from this register return the value that is in the flip-flop controlling the output selection, not the actual pin value.

  • Page 77: Appendix C Configuring Sata For Raid

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Appendix C Configuring SATA for RAID ® Configuring SATA Hard Drive(s) for RAID (Controller: Intel Q87) Before you begin the SATA configuration, please prepare:  Two SATA hard drives (to ensure optimal performance, it is recommended that you use two hard drives with identical model and capacity).
  • Page 78 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Turn on your system, and then press the <Del> button to enter BIOS Setup during running 2.1. POST (Power-On Self Test). If you want to create RAID, just go to the Advanced Settings menu/SATA Configuration, select the “SATA Mode Selection”, and press <Enter>...
  • Page 79 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Set DVD-ROM for First Boot Option under the Boot Settings menu to boot DVD-ROM after 2.2. system restarts. Save and exit the BIOS Setup. 2.3. Configuring SATA for RAID...
  • Page 80 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board 3. Configuring RAID by the RAID BIOS. Enter the RAID BIOS setup utility to configure a RAID array. Skip this step and proceed if you do not want to create a RAID.
  • Page 81 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board After entering the Create Volume Menu screen, you can type the disk array name with 3.3. 1~16 letters (letters cannot be special characters) in the item “Name”. When finished, press <Enter> to select a RAID level. There are three RAID levels: RAID0, 3.4.
  • Page 82 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Set the stripe block size. The KB is the standard unit of stripe block size. The stripe block 3.5. size can be 4KB to 128KB. After the setting, press <Enter> for the array capacity.
  • Page 83 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board When prompting the confirmation, press <Y> to create this volume, or <N> to cancel the 3.7. creation. After the creation is completed, you can see detailed information about the RAID Array in the Disk/Volume Information section, including RAID mode, disk block size, disk name, and disk capacity, etc.
  • Page 84 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Delete RAID volume If you want to delete a RAID volume, select the Delete RAID Volume option in Main Menu. Press <Enter> and follow on-screen instructions. Please press <Esc> to exit the RAID BIOS utility. Now, you can proceed to install a SATA driver controller and the operating system.

  • Page 85: Appendix D Iamt Settings

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Appendix D iAMT Settings ® ® The Intel Active Management Technology (Intel iAMT) has decreased a major barrier to IT efficiency that uses built-in platform capabilities and popular third-party management and security applications to allow IT a better discovering, healing, and protection their networked computing assets.
  • Page 86 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board You will be asked to change the password before setting ME. You must confirm your new password while revising. The new password must contain: (example: !!11qqQQ) (default value).  Eight characters ...

  • Page 87: Iamt Settings

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board iAMT Settings ® Select Intel iAMT configuration and press <Enter>. Select Network Setup to configure iAMT. iAMT Settings...
  • Page 88 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Select TCP/IP to get into Network interface and set it to Enabled. Get into DHCP Mode and set it to Disabled. iAMT Settings...
  • Page 89 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board If DHCP Mode is disabled, set the following settings:  IP address  Subnet mask ® Go back to Intel iAMT Configuration, then select Activate Network Access and press <Enter>. Exit from MEBx after completing the iAMT settings.

  • Page 90: Iamt Web Console

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board iAMT Web Console From a web browser, please type http://(IP ADDRESS):16992, which connects to iAMT Web. Example: http://10.1.40.214:16992 To log on, you will be required to type in username and password for access to the Web.
  • Page 91 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Enter the iAMT Web. Click Remote Control, and select commands on the right side. iAMT Settings...
  • Page 92 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board When you have finished using the iAMT Web console, close the Web browser. iAMT Settings...

  • Page 93: Appendix E Picmg V1.3 Interface Definition

    SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Appendix E ® PICMG v1.3 Interface Definition x16 PCIe Connector A X8 PCIe Connector B Side B Side A Side B Side A +5Vaux +5Vaux a_PETp8 a_PETn8 WAKE# a_PERp8 PWRBT# PME# a_PERn8...
  • Page 94 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Mechanical Key a_PERp13 b_PERp3 a_PERn13 Mechanical Key b_PERn3 REFCLK0+ a_PETp14 REFCLK0- a_PETn14 REFCLK1+ a_PERp14 RSVD REFCLK1- a_PERn14 REFCLK2+ a_PETp15 REFCLK2- a_PETn15 REFCLK3+ a_PERp15 RSVD REFCLK3- a_PERn15 REFCLK4+ REFCLK4- RSVD +12V +12V a_PETp0...
  • Page 95 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board Mechanical Key a_PETn3 a_PERp3 a_PERn3 a_PETp4 a_PETn4 a_PERp4 a_PERn4 a_PETp5 a_PETn5 a_PERp5 a_PERn5 a_PETp6 a_PETn6 a_PERp6 a_PERn6 a_PETp7 a_PETn7 a_PERp7 a_PERn7 +3.3V +3.3V +3.3V +3.3V +3.3V +3.3V +3.3V +3.3V RSVD RSVD Please contact your vendor to get the backplane design guide if it’s required. The Note: backplane design guide is NDA required.
  • Page 96 SHB250R Intel LGA1151 Processor PICMG1.3 Half-size CPU Board This page is intentionally left blank. ® PICMG v1.3 Interface Definition...

Table of Contents
