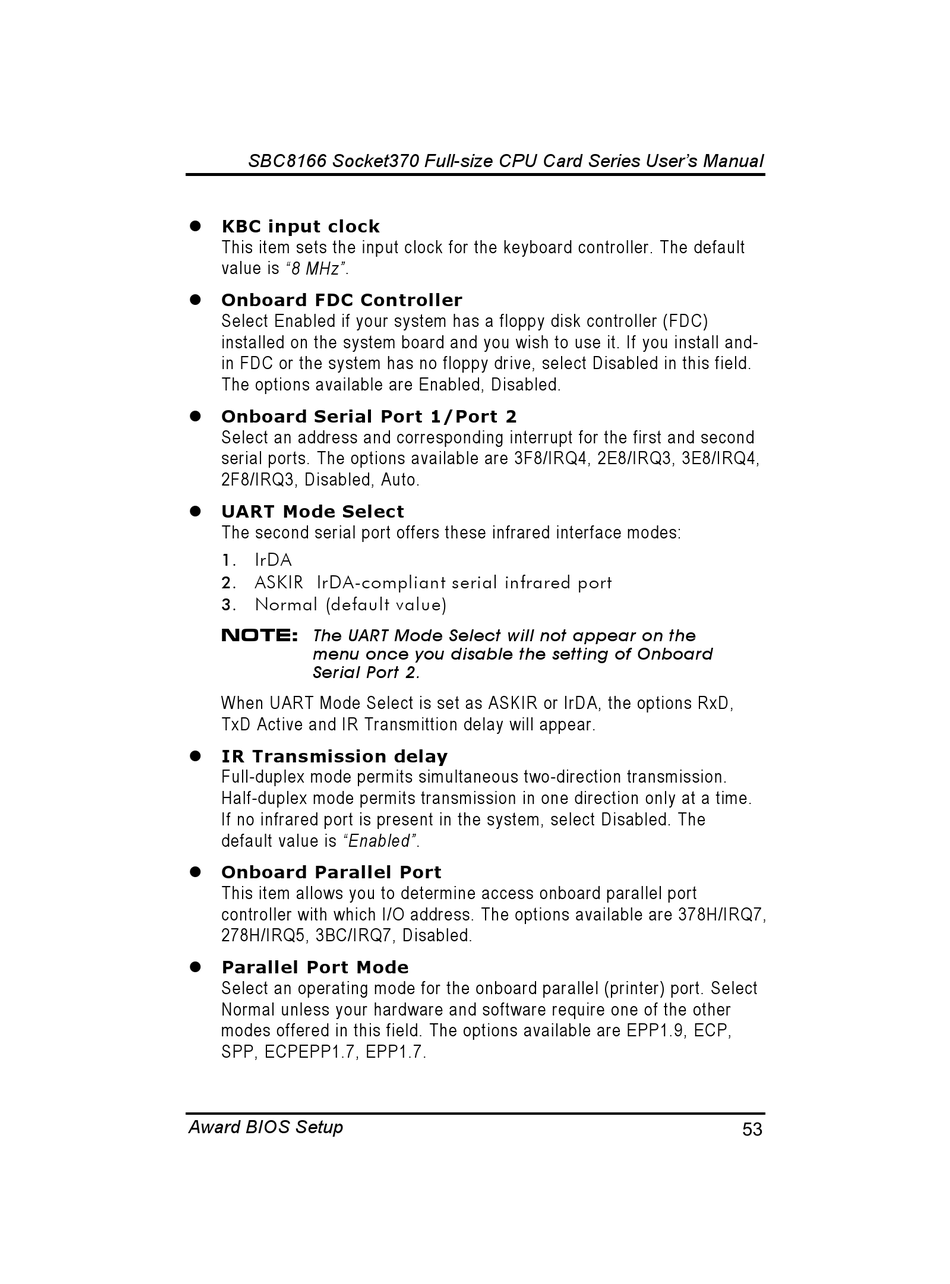

SBC8166 Socket370 Full-size CPU Card Series User's Manual

KBC input clock

This item sets the input clock for the keyboard controller. The default
value is "8 MHz".

Onboard FDC Controller

Select Enabled if your system has a floppy disk controller (FDC)
installed on the system board and you wish to use it. If you install and-
in FDC or the system has no floppy drive, select Disabled in this field.
The options available are Enabled, Disabled.
Onboard Serial Port 1/Port 2
Select an address and corresponding interrupt for the first and second
serial ports. The options available are 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4,
2F8/IRQ3, Disabled, Auto.
UART Mode Select
The second serial port offers these infrared interface modes:
IrDA
1.

ASKIR IrDA-compliant serial infrared port
2.

Normal (default value)
3.

NOTE:
The UART Mode Select will not appear on the
menu once you disable the setting of Onboard
Serial Port 2.
When UART Mode Select is set as ASKIR or IrDA, the options RxD,
TxD Active and IR Transmittion delay will appear.

IR Transmission delay

Full-duplex mode permits simultaneous two-direction transmission.
Half-duplex mode permits transmission in one direction only at a time.
If no infrared port is present in the system, select Disabled. The
default value is "Enabled".

Onboard Parallel Port

This item allows you to determine access onboard parallel port
controller with which I/O address. The options available are 378H/IRQ7,
278H/IRQ5, 3BC/IRQ7, Disabled.

Parallel Port Mode

Select an operating mode for the onboard parallel (printer) port. Select
Normal unless your hardware and software require one of the other
modes offered in this field. The options available are EPP1.9, ECP,
SPP, ECPEPP1.7, EPP1.7.
Award BIOS Setup
