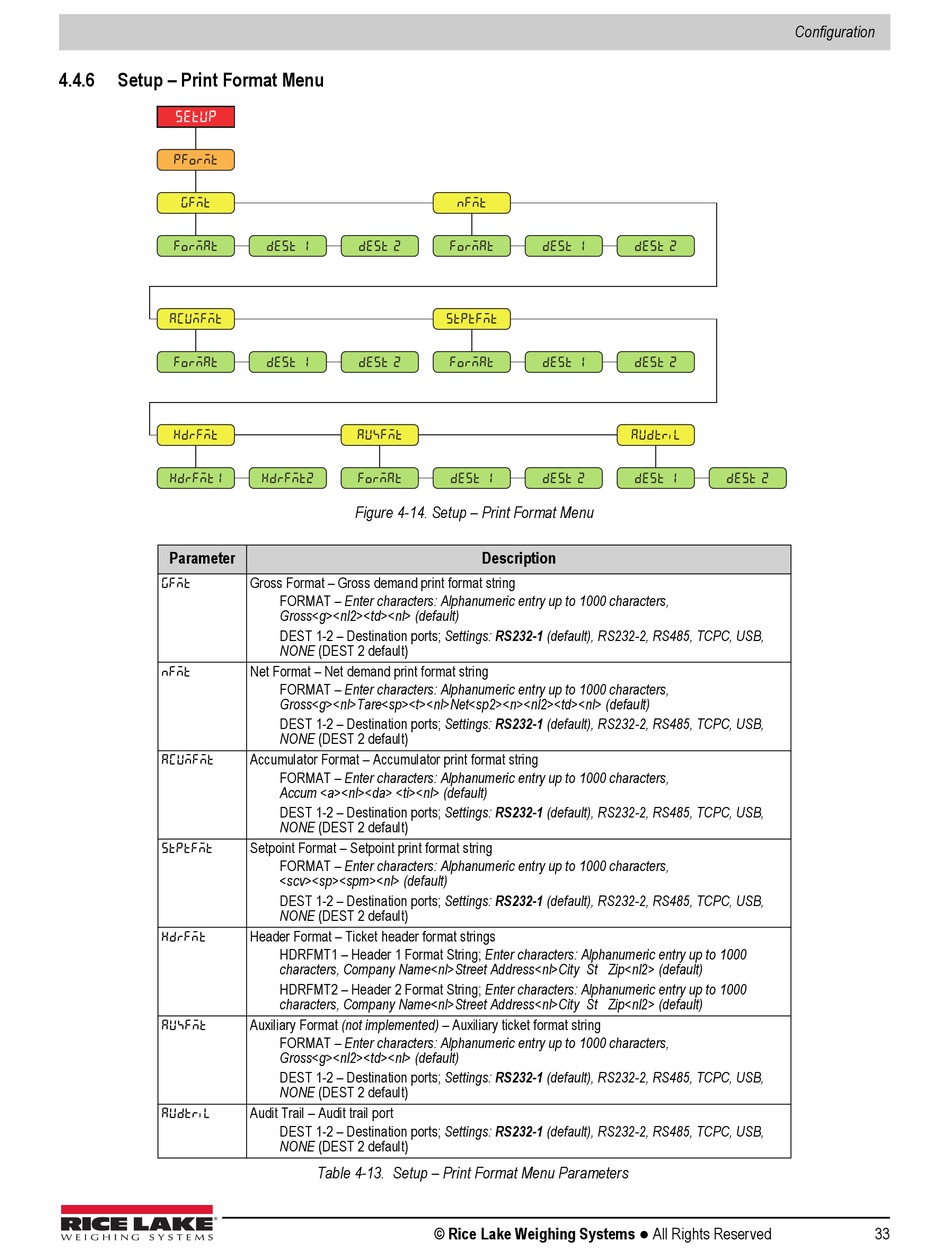

4.4.6 Setup – Print Format Menu
Setup
Pformt
Gfmt
format
Acumfmt
Format
Hdrfmt
hdrFmt1
Parameter
gfmt
nfmt
acumfmt
stptfmt
hdrfmt
auxfmt
audtril
dest 1 dest 2
dest 1 dest 2
Auxfmt
hdrFmt2 Format
Figure 4-14. Setup – Print Format Menu
Gross Format – Gross demand print format string
FORMAT – Enter characters: Alphanumeric entry up to 1000 characters,
Gross<g><nl2><td><nl> (default)
DEST 1-2 – Destination ports; Settings: RS232-1 (default), RS232-2, RS485, TCPC, USB,
NONE (DEST 2 default)
Net Format – Net demand print format string
FORMAT – Enter characters: Alphanumeric entry up to 1000 characters,
Gross<g><nl>Tare<sp><t><nl>Net<sp2><n><nl2><td><nl> (default)
DEST 1-2 – Destination ports; Settings: RS232-1 (default), RS232-2, RS485, TCPC, USB,
NONE (DEST 2 default)
Accumulator Format – Accumulator print format string
FORMAT – Enter characters: Alphanumeric entry up to 1000 characters,
Accum <a><nl><da> <ti><nl> (default)
DEST 1-2 – Destination ports; Settings: RS232-1 (default), RS232-2, RS485, TCPC, USB,
NONE (DEST 2 default)
Setpoint Format – Setpoint print format string
FORMAT – Enter characters: Alphanumeric entry up to 1000 characters,
<scv><sp><spm><nl> (default)
DEST 1-2 – Destination ports; Settings: RS232-1 (default), RS232-2, RS485, TCPC, USB,
NONE (DEST 2 default)
Header Format – Ticket header format strings
HDRFMT1 – Header 1 Format String; Enter characters: Alphanumeric entry up to 1000
characters, Company Name<nl>Street Address<nl>City St Zip<nl2> (default)
HDRFMT2 – Header 2 Format String; Enter characters: Alphanumeric entry up to 1000
characters, Company Name<nl>Street Address<nl>City St Zip<nl2> (default)
Auxiliary Format (not implemented) – Auxiliary ticket format string
FORMAT – Enter characters: Alphanumeric entry up to 1000 characters,
Gross<g><nl2><td><nl> (default)
DEST 1-2 – Destination ports; Settings: RS232-1 (default), RS232-2, RS485, TCPC, USB,
NONE (DEST 2 default)
Audit Trail – Audit trail port
DEST 1-2 – Destination ports; Settings: RS232-1 (default), RS232-2, RS485, TCPC, USB,
NONE (DEST 2 default)
Table 4-13. Setup – Print Format Menu Parameters
Nfmt
format dest 1
Stptfmt
Format dest 1
dest 1 dest 2
Description
© Rice Lake Weighing Systems ● All Rights Reserved
Configuration
dest 2
dest 2
Audtril
dest 1 dest 2
