Sealing The Indicator (Optional); Parts Kit Components - Rice Lake Revolution 680 Synergy Plus Technical Manual

2.7

Sealing the Indicator (Optional)

Insert a lead wire seal through three fillister screws. This restricts access of the setup switch, electronics, electrical contacts and
Legal for Trade configuration parameters.
The audit jumper (J24) must be set to off to require pressing the setup switch for access to configuration parameters.
Note
1. Reposition the two fillister head backplate screws to the lower right and lower right-center screws locations.
1. Torque the two backplate screws and setup screw as specified in
2. Navigate the sealing wire through the fillister head screws on the backplate and the fillister head screw at the bottom of
the enclosure, as shown in
3. Seal the wire to secure.
2.8

Parts Kit Components

Part No.
15631
15650
193230
194219
194446
194488
19538
195993
195995
195998
30632
42149
53075
75062
94422
The recommended cable strip length is 0.25'' (7 mm) for all 680 connectors.
Note

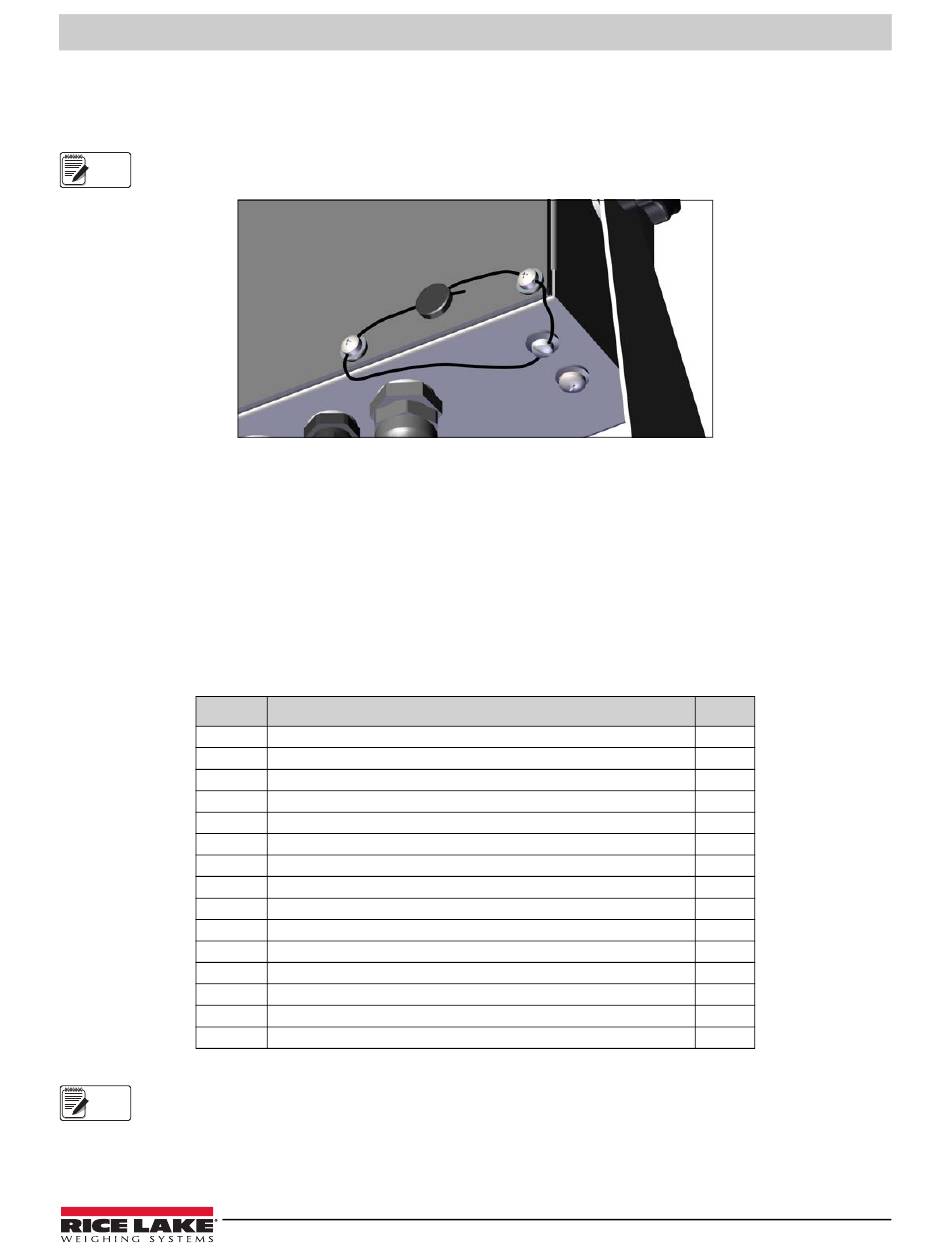

Figure 2-10. Sealing the Indicator – No Access
Figure 2-10.
Description
Cable Tie, 3'' Nylon
Mount, Cable Tie 3/4''
Screw, Mach M4 x 0.7 x 10 Phillips Pan Head SST
Screw, Mach M4 x 0.7 x 10 Phillips Drilled Cheese Head SST
Ferrite Core, Snap on Fair-rite
Screw, Mach M4 x 0.7 x 6 Phillips Pan Head with External Tooth Washer SEMS
Post Plug, Slotted Black Plastic Stem, 1/4 x 1, Seals Inside Cord Grip
Connector, 6 Position Screw Terminal Pluggable 3.50 mm Black
Connector, 4 Position Screw Terminal Pluggable 3.50 mm Black
Connector, 5 Position Screw Terminal Pluggable 3.50 mm Black
Bag, Plastic 5 x 8
Bumper, Rubber Grommet 0.50 (OD) x 0.281 (ID)
Clamp, Ground Cable Shield, Radius 0.078''
Washer, Bonded Sealing #8 7/16 (0.4375) OD SST
Label, Capacity 0.40 x 5.00
Table 2-10. Parts Kit (PN 194477) Components
© Rice Lake Weighing Systems ● All Rights Reserved
Section 2.4.2 on page 7.
Qty
4
2
4
2
1
4
3
3
1
1
1
4
4
6
1
Installation
11
