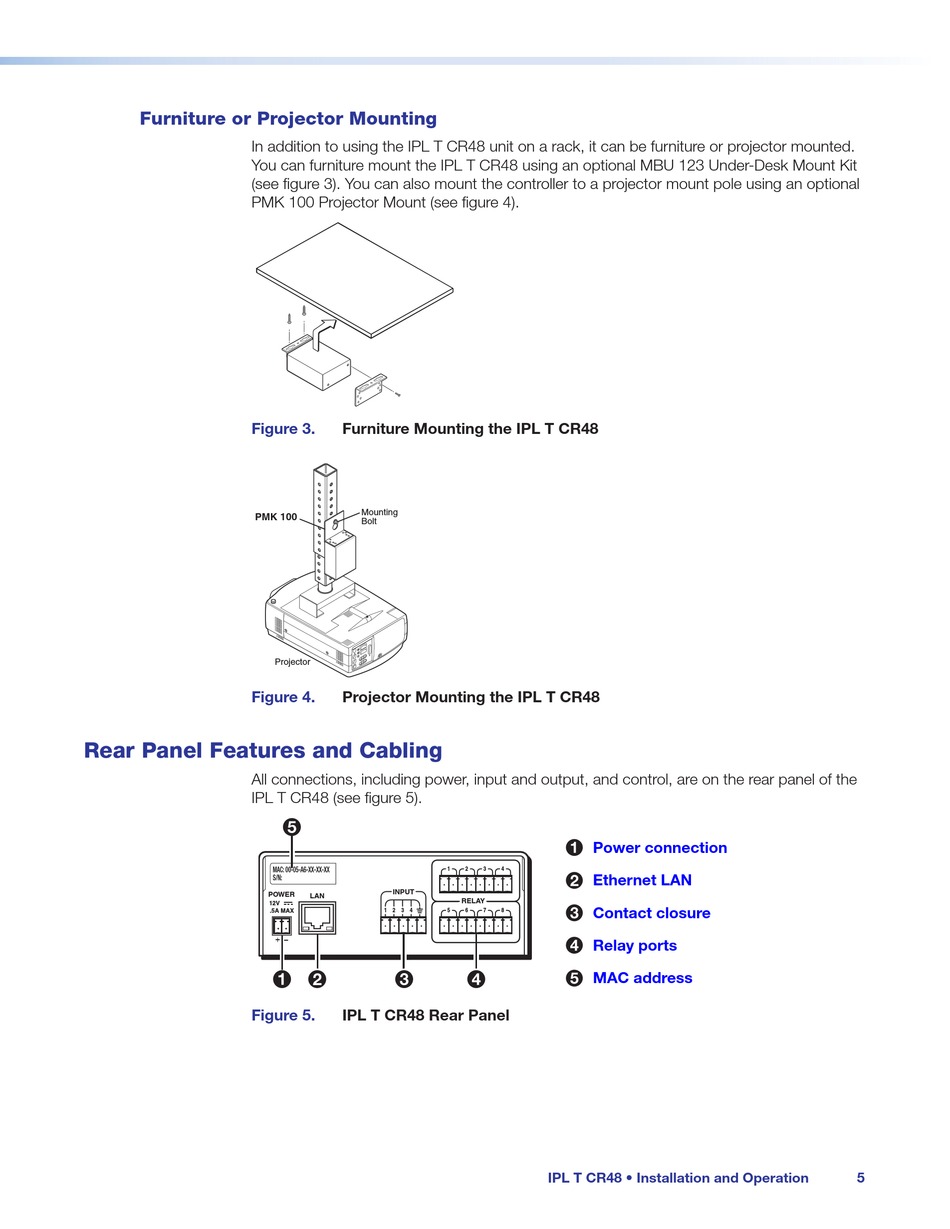

Furniture or Projector Mounting

In addition to using the IPL T CR48 unit on a rack, it can be furniture or projector mounted.
You can furniture mount the IPL T CR48 using an optional MBU 123 Under-Desk Mount Kit
(see figure 3). You can also mount the controller to a projector mount pole using an optional
PMK 100 Projector Mount (see figure 4).
Figure 3.
PMK 100
Figure 4.

Rear Panel Features and Cabling

All connections, including power, input and output, and control, are on the rear panel of the
IPL T CR48 (see figure 5).
Figure 5.
Furniture Mounting the IPL T CR48
Mounting
Bolt
Projector
Projector Mounting the IPL T CR48
5 5
MAC: 00-05-A6-XX-XX-XX 1
S/N:
INPUT
POWER
LAN
12V
.5A MAX 1 2 3 4 5
1 1 2 2 3 3
IPL T CR48 Rear Panel
Power connection
1
2 3 4
Ethernet LAN
2
RELAY
Contact closure
3
6 7 8
Relay ports
4
MAC address
4 4 5
IPL T CR48 • Installation and Operation 5
