LED Lights
Table 3. LED State Indicators
Indicator Description
Run:
Indicates that the VFD is running and controlling the load in
Run Drive or Bypass.
Blinks when a stop command has been given but the drive is
still ramping down.
Fault:
Turn on when there is one or more active drive fault(s).
Fault
Hand/OFF/Auto:
Hand: If the Hand or Off control place is selected,
Auto
turn off the light.
Auto: If the Auto control place is selected, turn on the light.
LCD Display
The keypad LCD indicates the status of the motor and the
drive and any faults in motor or drive functions. On the LCD,
the user sees information about the current location in the
menu structure and the item displayed.
Overview
Five lines shall be displayed in the screen. General view is as
following in Figure 4.

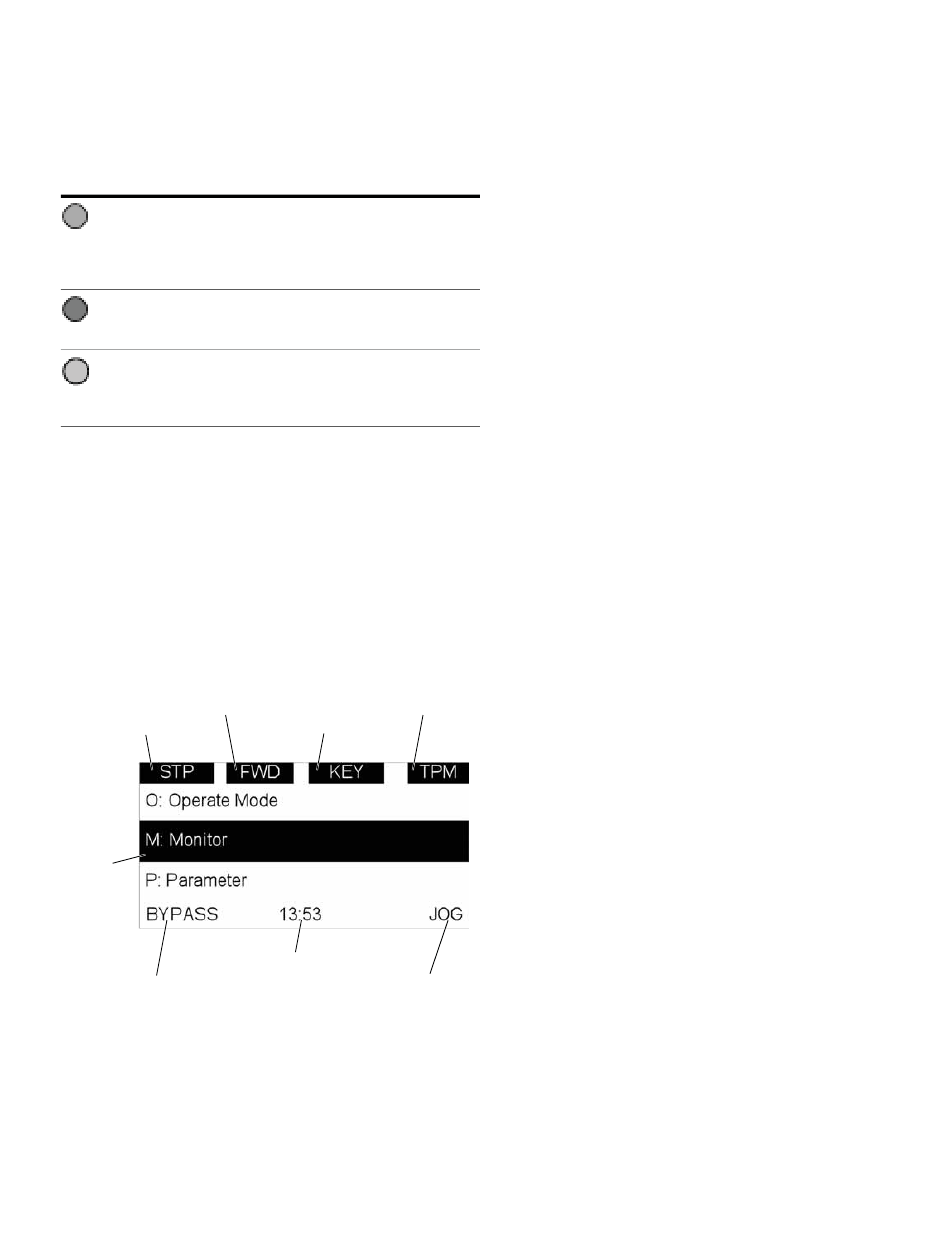

Figure 4. General View of LCD
Direction Status
Drive Status
Active
Selection
Soft Key 1
Function Label
Menu Location
Control Place
Real Time Clock
(hh:mm)
Soft Key 2
Function Label
Variable Speed Drives Series III LIT-12012996—April 2018 www.johnsoncontrols.com
Step 2—Keypad Operation Overview
The lines definition is as below:
The first line is State line, shows:
RUN / STP / NRD / FIM / TFM—If motor is running, the
●
run state shall display "RUN" , otherwise the state display
"STP" . "RUN" blinks when the stop command is sent but
the drive is decelerating. "NRD" is displayed if the drive is
not ready or does not have a signal. "FIM" is displayed to
indicate it is in Fire Mode and the drive is in a Run state.
"TFM" is displayed when in the Fire Mode Test Mode and
the drive is in a Run State.
FWD / REV / JOG—If the motor running the direction is
●
clockwise, it displays "FWD" , otherwise displays "REV"
for counter clockwise. If "Jog" is displayed, it indicates
Jog mode is active.
KEY / I/O / BPS / RBP / BUS / OFF—If it is in bypass
●
currently, display "BPS"; when run command is given, it
will go to "RBP"; otherwise, if the current control source
is I/O terminal, display "I/O" . If it is keypad, then display
"KEY"; otherwise display "BUS. " When indicates "OFF" , it
indicates the drive will not accept a command from the
Hand or Auto Control place.
PAR / MON / FLT / OPE / QSW / FAV / TPM / BUx—
●
If the current page is parameter menu, display "PAR";
If monitor menu, then display "MON"; If fault menu, then
display "FLT"; If operation menu, then display "OPE";
If quick start wizard, then display "QSW"; If optional card
menu, then display "BOA"; If favorite menu, then display
"FAV"; If main menu, then display "TPM" . "BUx" indicates
the drive being a backup drive when in the redundant drive
system.
The second line is Code line, which shows the menu code.
The third line is Name line, which shows the menu name or
parameters name.
The fourth line is Value line, which shows the submenu
name or parameters value.
The fifth line is Soft key line, the functions of Soft key 1 and
Soft key 2 are changeable, and the real time is in the middle.
