Step 1—Variable Speed Drives Series III Overview
Rating Label

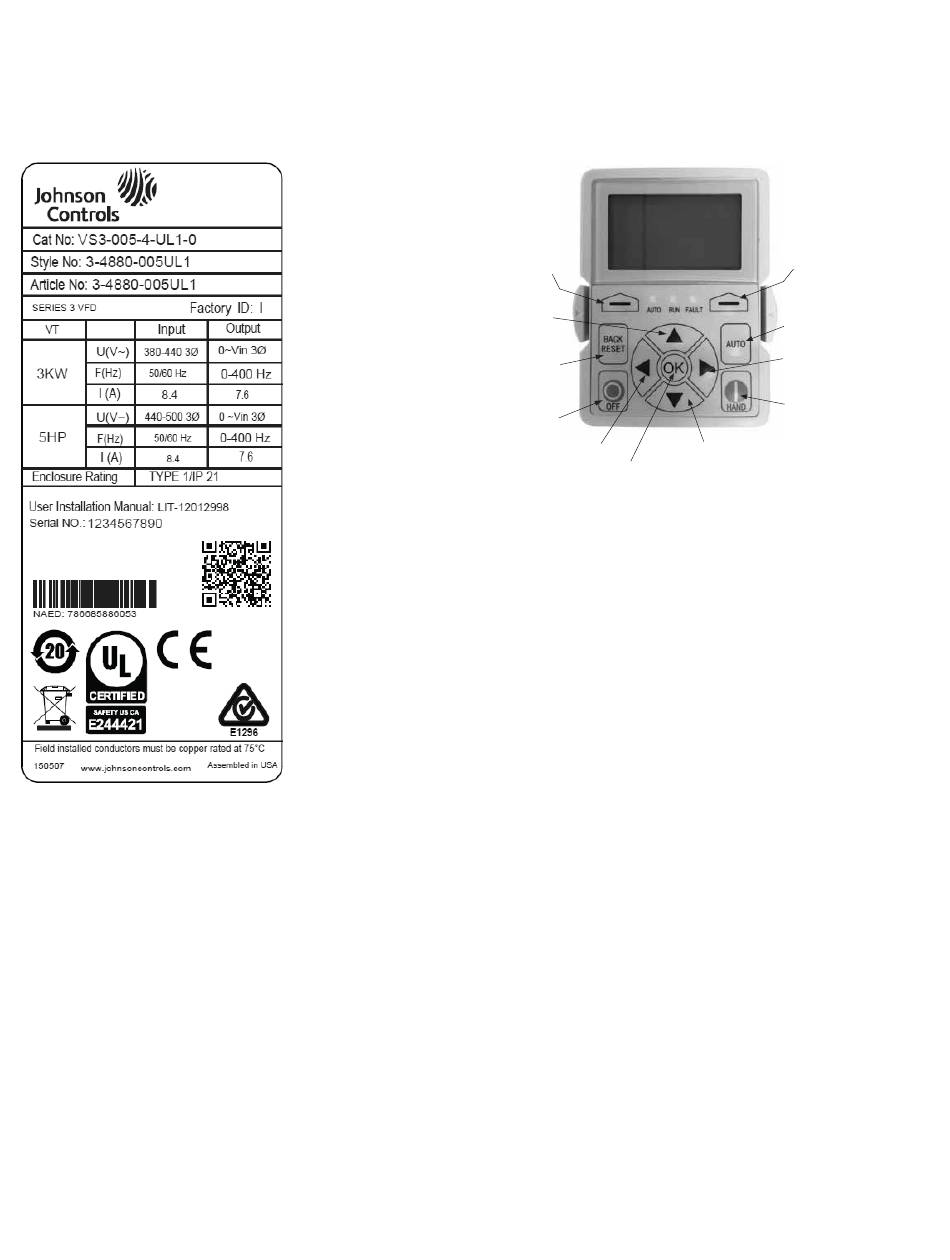

Figure 2. Rating Label
Carton Labels (U.S. and Europe)
Same as rating label shown above.
2 Variable Speed Drives Series III LIT-12012996—April 2018 www.johnsoncontrols.com
Keypad Overview
Figure 3. Keypad and Display
Programmable
Soft Key 1
Increase
Value Scroll
Menu Up
Back/Reset
Button
Stop/Off Button
Move Cursor
Left
Enter Menu
Confirm Selection
Programmable
Soft Key 2
Change Control
Place to Auto
Move Cursor
Right
Start/Hand Button
Decrease Value
Scroll Menu Down
