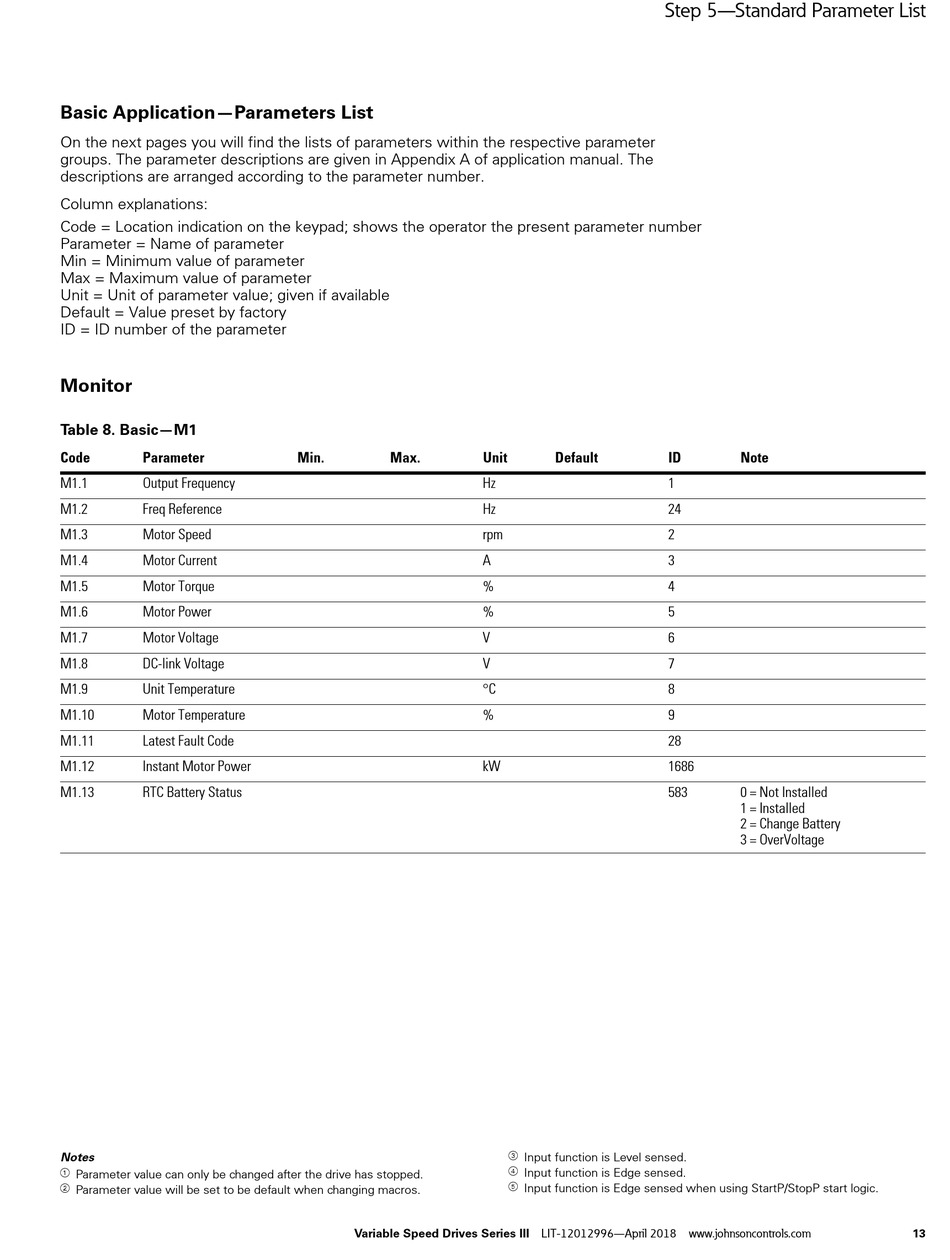

Basic Application—Parameters List
On the next pages you will find the lists of parameters within the respective parameter
groups. The parameter descriptions are given in Appendix A of application manual. The
descriptions are arranged according to the parameter number.
Column explanations:
Code = Location indication on the keypad; shows the operator the present parameter number
Parameter = Name of parameter
Min = Minimum value of parameter
Max = Maximum value of parameter
Unit = Unit of parameter value; given if available
Default = Value preset by factory
ID = ID number of the parameter
Monitor
Table 8. Basic—M1
Code Parameter
M1.1 Output Frequency
M1.2 Freq Reference
M1.3 Motor Speed
M1.4 Motor Current
M1.5 Motor Torque
M1.6 Motor Power
M1.7 Motor Voltage
M1.8 DC-link Voltage
M1.9 Unit Temperature
M1.10 Motor Temperature
M1.11 Latest Fault Code
M1.12 Instant Motor Power
M1.13 RTC Battery Status
Notes
1
Parameter value can only be changed after the drive has stopped.
2
Parameter value will be set to be default when changing macros.
Min. Max.
Variable Speed Drives Series III LIT-12012996—April 2018 www.johnsoncontrols.com
Unit Default
Hz
Hz
rpm
A
%
%
V
V
°C
%
kW
3
Input function is Level sensed.
4
Input function is Edge sensed.
5
Input function is Edge sensed when using StartP/StopP start logic.
Step 5—Standard Parameter List
ID Note
1
24
2
3
4
5
6
7
8
9
28
1686
583 0 = Not Installed
1 = Installed
2 = Change Battery
3 = OverVoltage
13
