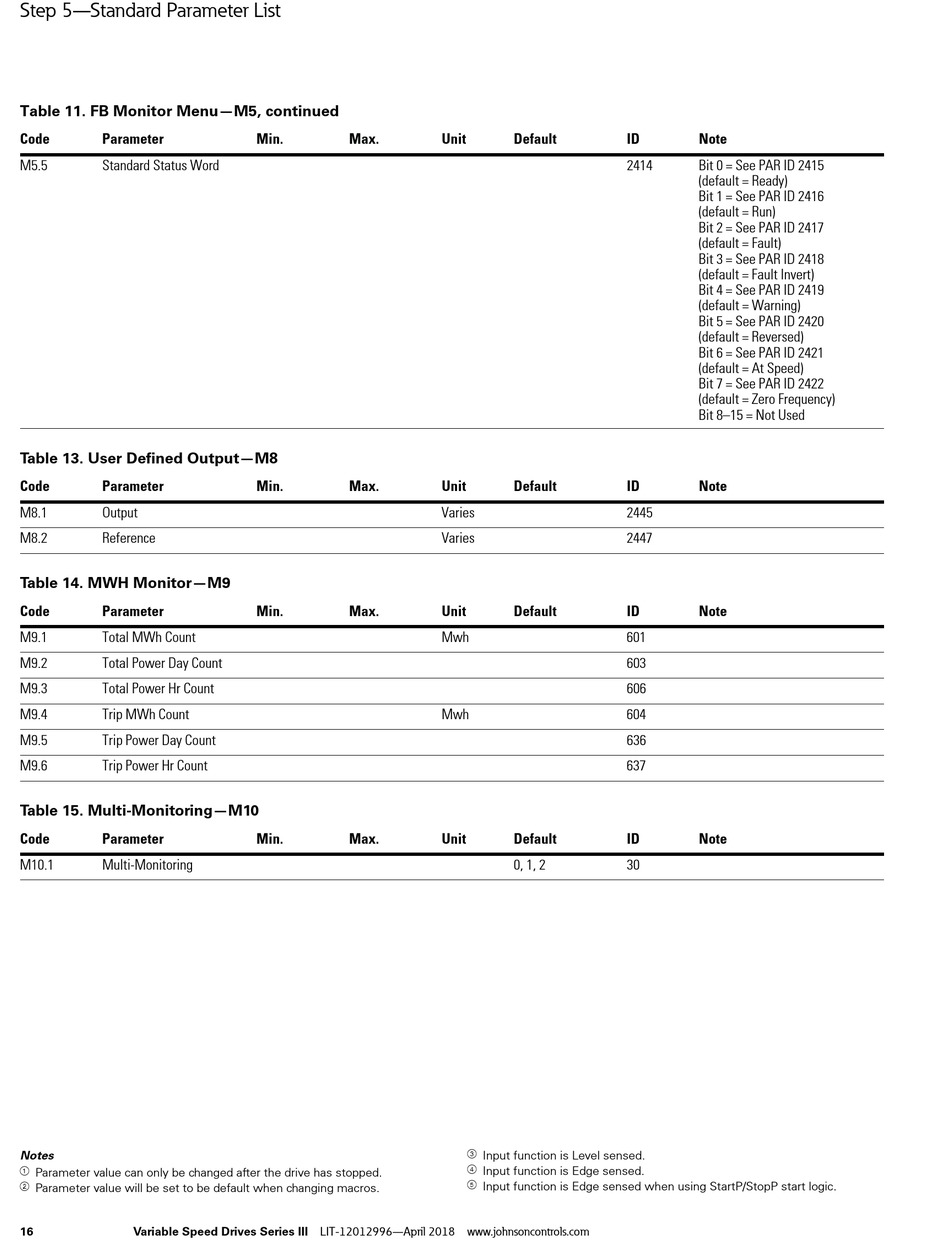

Step 5—Standard Parameter List
Table 11. FB Monitor Menu—M5, continued
Code Parameter
M5.5 Standard Status Word
Table 13. User Defined Output—M8
Code Parameter
M8.1 Output
M8.2 Reference
Table 14. MWH Monitor—M9
Code Parameter
M9.1 Total MWh Count
M9.2 Total Power Day Count
M9.3 Total Power Hr Count
M9.4 Trip MWh Count
M9.5 Trip Power Day Count
M9.6 Trip Power Hr Count
Table 15. Multi-Monitoring—M10
Code Parameter
M10.1 Multi-Monitoring
Notes
1
Parameter value can only be changed after the drive has stopped.
2
Parameter value will be set to be default when changing macros.
16 Variable Speed Drives Series III LIT-12012996—April 2018 www.johnsoncontrols.com
Min. Max.
Min. Max.
Min. Max.
Min. Max.
Unit Default
Unit Default
Varies
Varies
Unit Default
Mwh
Mwh
Unit Default
0, 1, 2
3
Input function is Level sensed.
4
Input function is Edge sensed.
5
Input function is Edge sensed when using StartP/StopP start logic.
ID Note
2414 Bit 0 = See PAR ID 2415
(default = Ready)
Bit 1 = See PAR ID 2416
(default = Run)
Bit 2 = See PAR ID 2417
(default = Fault)
Bit 3 = See PAR ID 2418
(default = Fault Invert)
Bit 4 = See PAR ID 2419
(default = Warning)
Bit 5 = See PAR ID 2420
(default = Reversed)
Bit 6 = See PAR ID 2421
(default = At Speed)
Bit 7 = See PAR ID 2422
(default = Zero Frequency)
Bit 8–15 = Not Used
ID Note
2445
2447
ID Note
601
603
606
604
636
637
ID Note
30
